Home Electrics Starter System Starter Starter

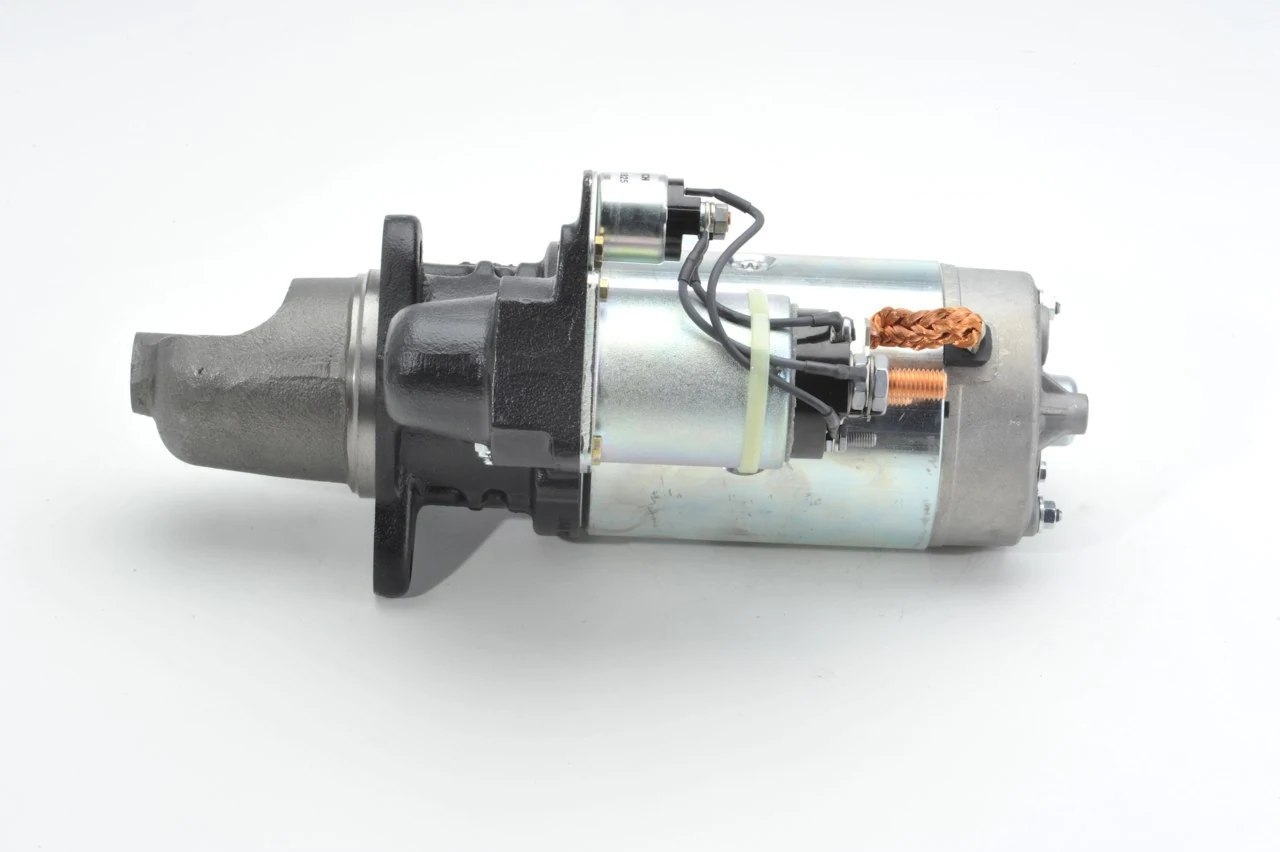

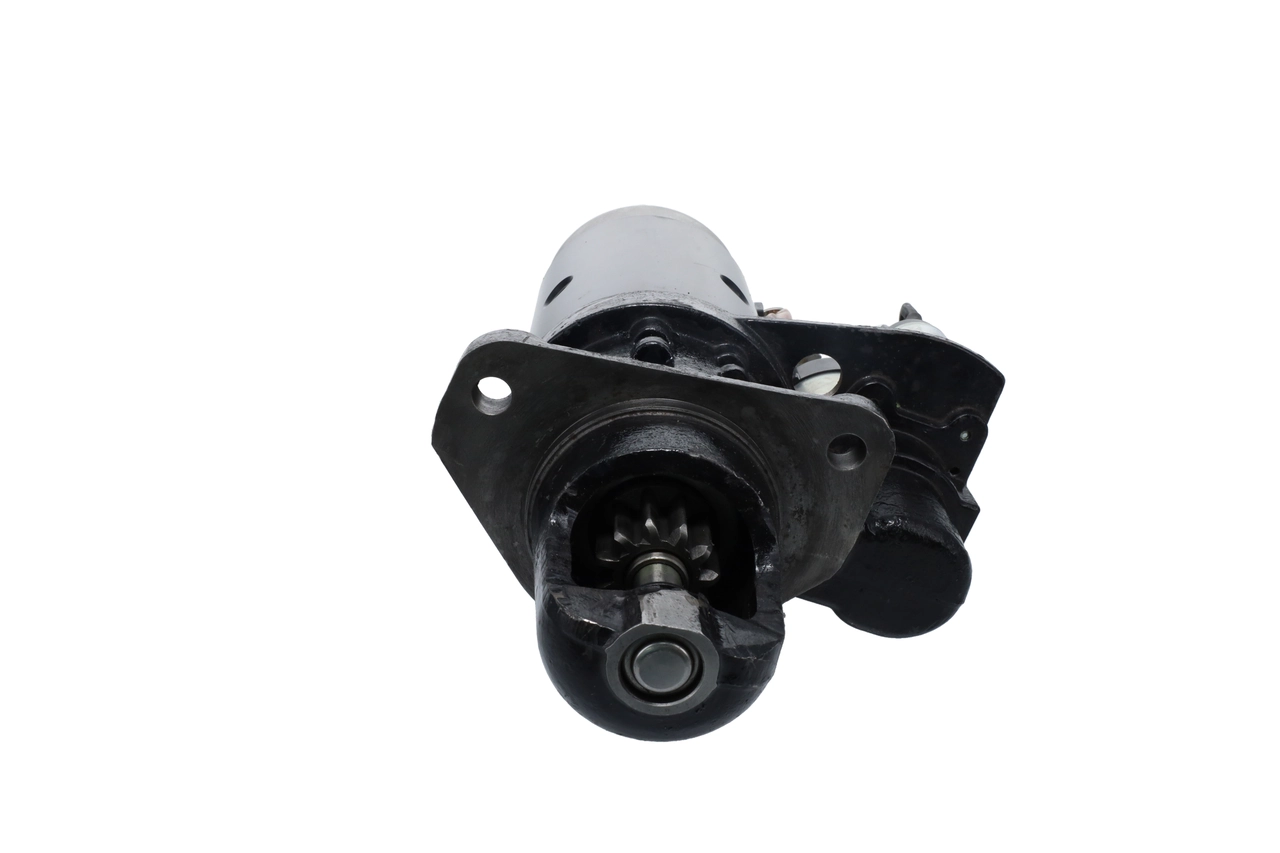

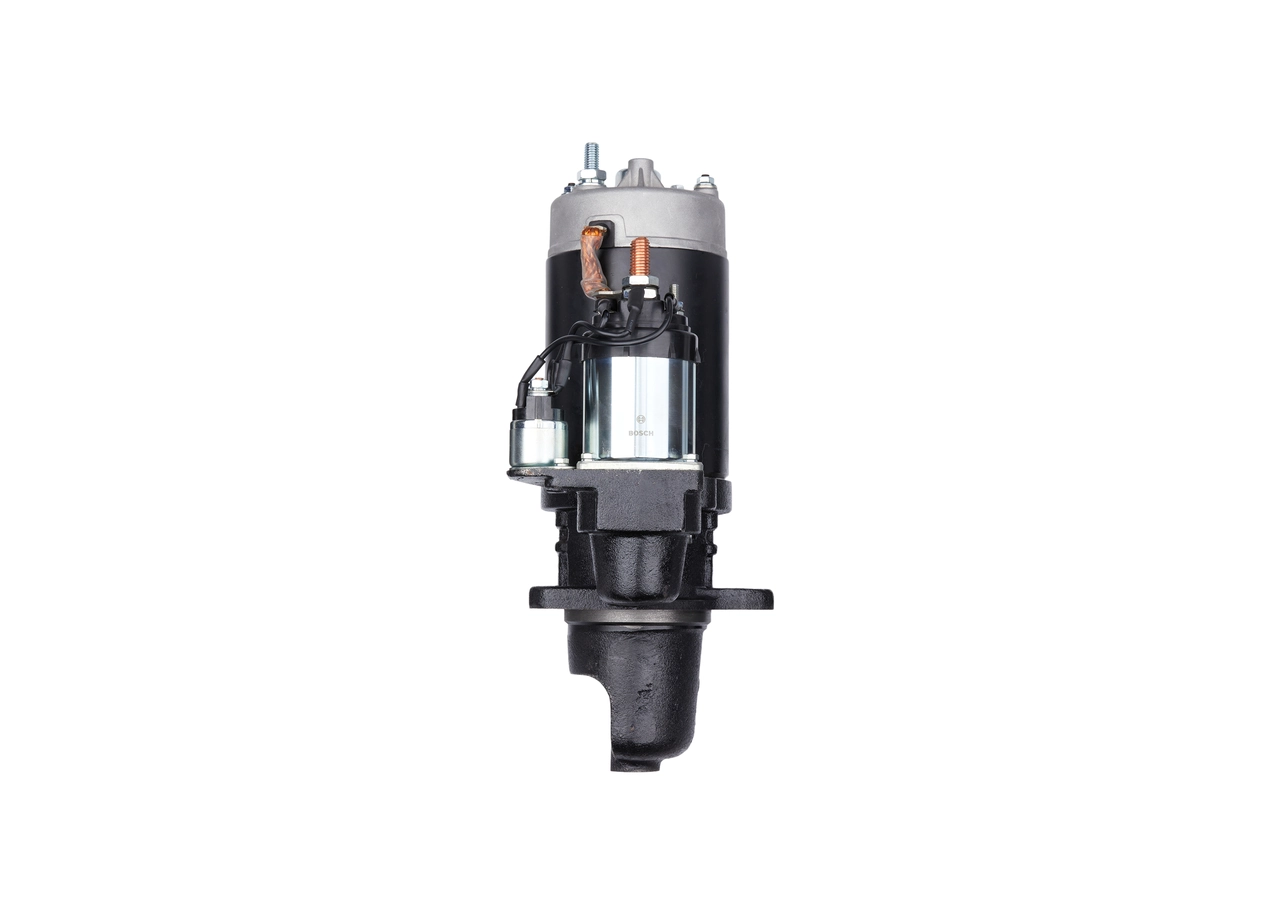

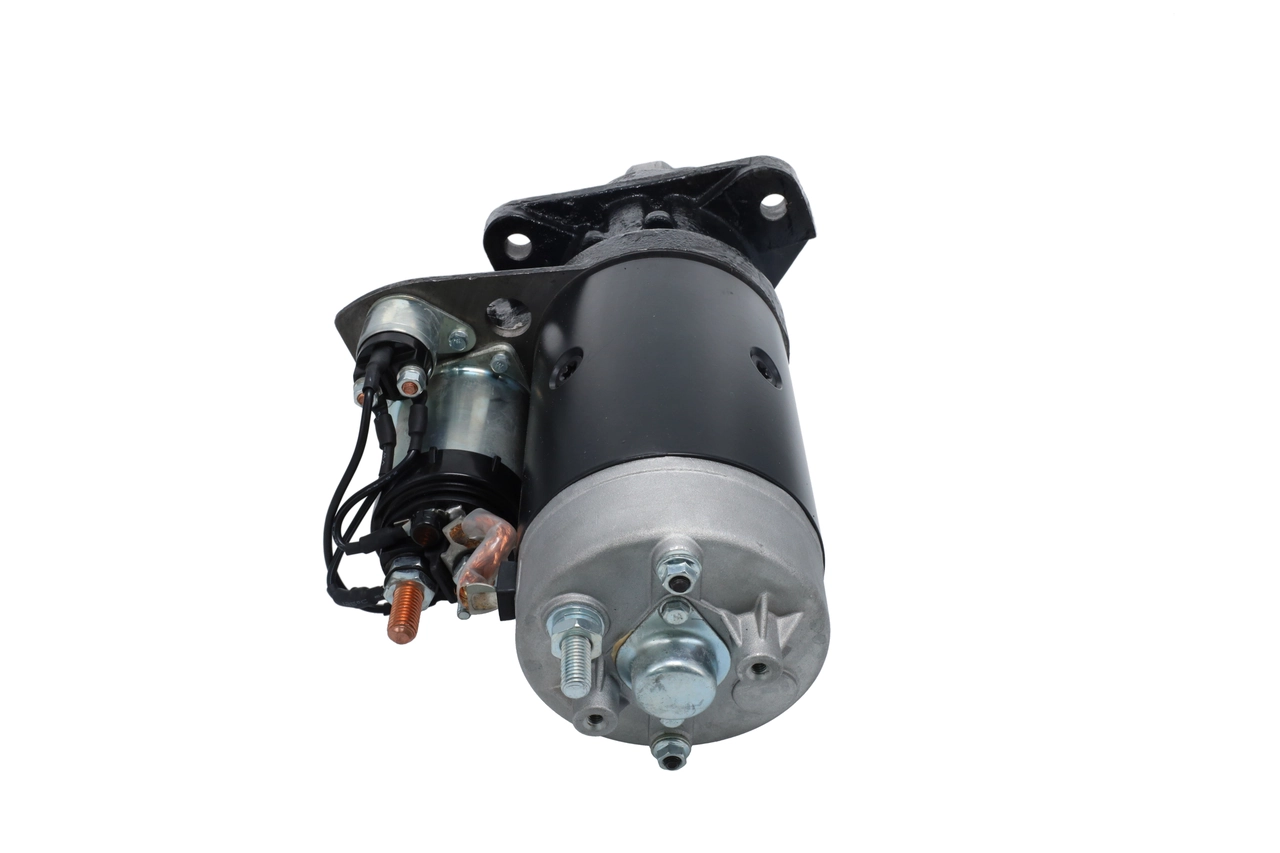

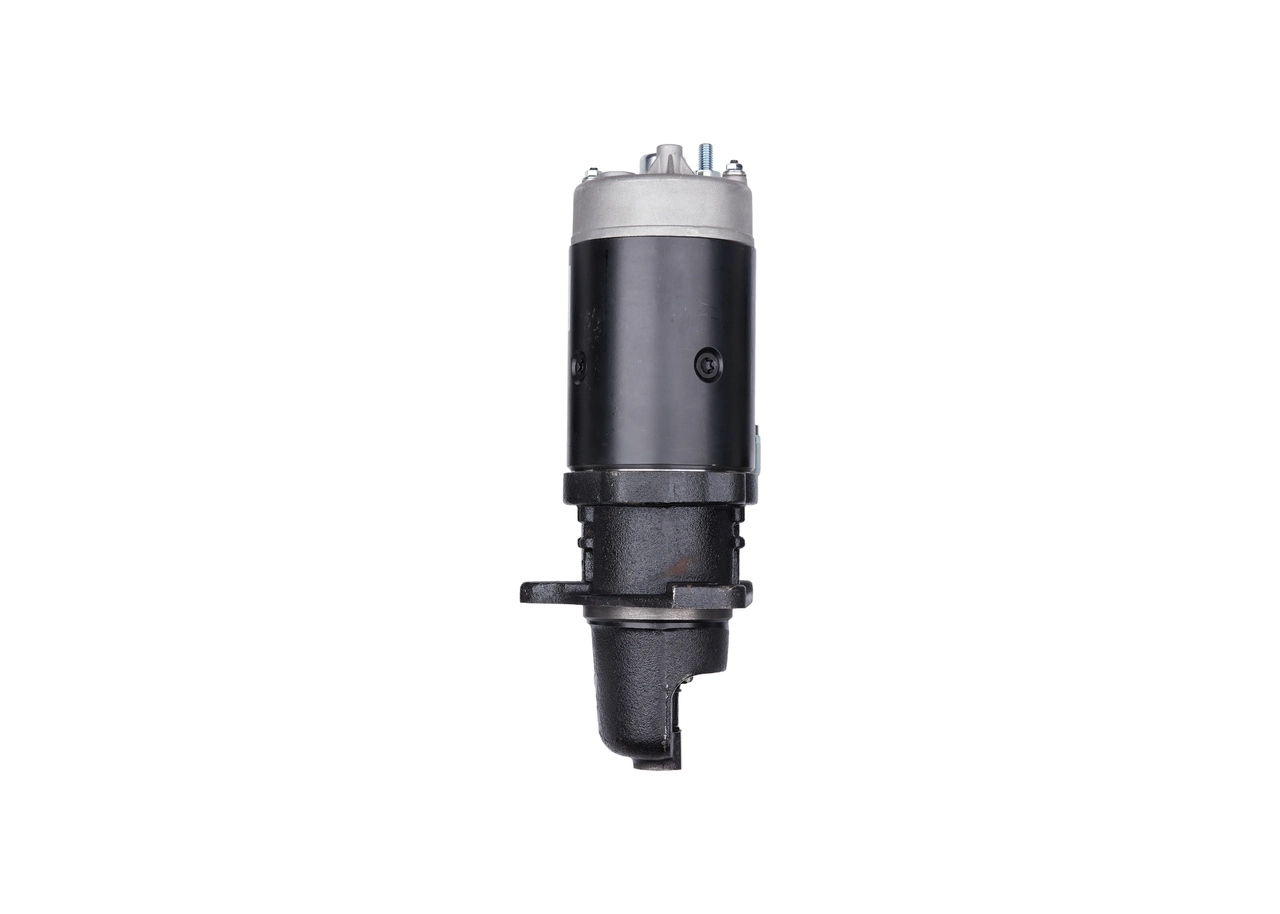

Starter

Code: BOSCH1986S10097

GH₵13,972.16

Not available

Specifications

BrandBosch

Length mm389

For model code930-934,MP2; 930-934,MP3

Manufacturer restrictionBosch; MITSUBISHI

Number of mounting bores3

Bore diameter mm13,5

Flange diameter mm92

Rated power kw6,2

Rotation directionClockwise rotation

Component number505144/05; 505144/05/09; 505144/09

Number of threaded holes0

Clamp30,50

Position degreerechts

Pinion rest position mm48

Bore diameter 2 mm13,5

Bore 3 mm13,5

Jaw opening angle measurement degree170

Starter typeSelf-supporting

Voltage v24

Tecdoc engine number16489; 16897; 16898; 16899; 16900; 16901; 16902; 16903; 16904; 16906; 16909; 16911; 16913; 16914; 17473; 17491; 17492; 17644; 17655; 17697; 18840; 18997; 19000; 19250; 19251; 19999; 20227; 20282; 20283; 20304; 20305; 20308; 20316; 20324; 20337; 20338; 20341; 21000; 21007; 23247; 23248; 23250; 23251; 23252; 25103; 25446; 25447; 25467; 25519; 27003; 28082; 28728; 28759; 29331; 30264; 35013; 7872; 7873; 7874; 7875; 7876; 7877; 7878; 7879; 7880; 9673; 9679

Engine code470.908; 541.950; OM 457 LA; OM 457.9...; OM 457.935 HLA; OM 457.94...; OM 457.948 LA; OM 457.952 hLA; OM 457.956 LA; OM 457.964 hLA; OM 457.965 hLA; OM 457.974 hLA; OM 471.9...; OM 471.902 LA; OM 541.926; OM 541.927; OM 541.94...; OM 541.940; OM 541.942; OM 541.944; OM 541.946; OM 541.970; OM 541.971; OM 541.972; OM 541.973; OM 541.974; OM 541.975; OM 541.976; OM 541.977; OM 541.978; OM 541.980; OM 541.981; OM 542.941; OM 542.948 LA; OM 542.960

For oe number007 151 46 01

Number of teeth11

Construction year from199609; 199704; 199807; 199809; 199901; 199910; 200102; 200105; 200210; 200302; 200304; 200306; 200502; 200506; 200507; 200509; 200601; 200602; 200609; 200610; 200709; 200806; 200808; 200809; 200910; 201109; 201111; 201207; 201209; 201303; 201304; 201309; 201409

Construction year to200409; 200512; 200602; 200708; 200808; 200812; 201112

Engine number from..265433

Engine number to..265432
