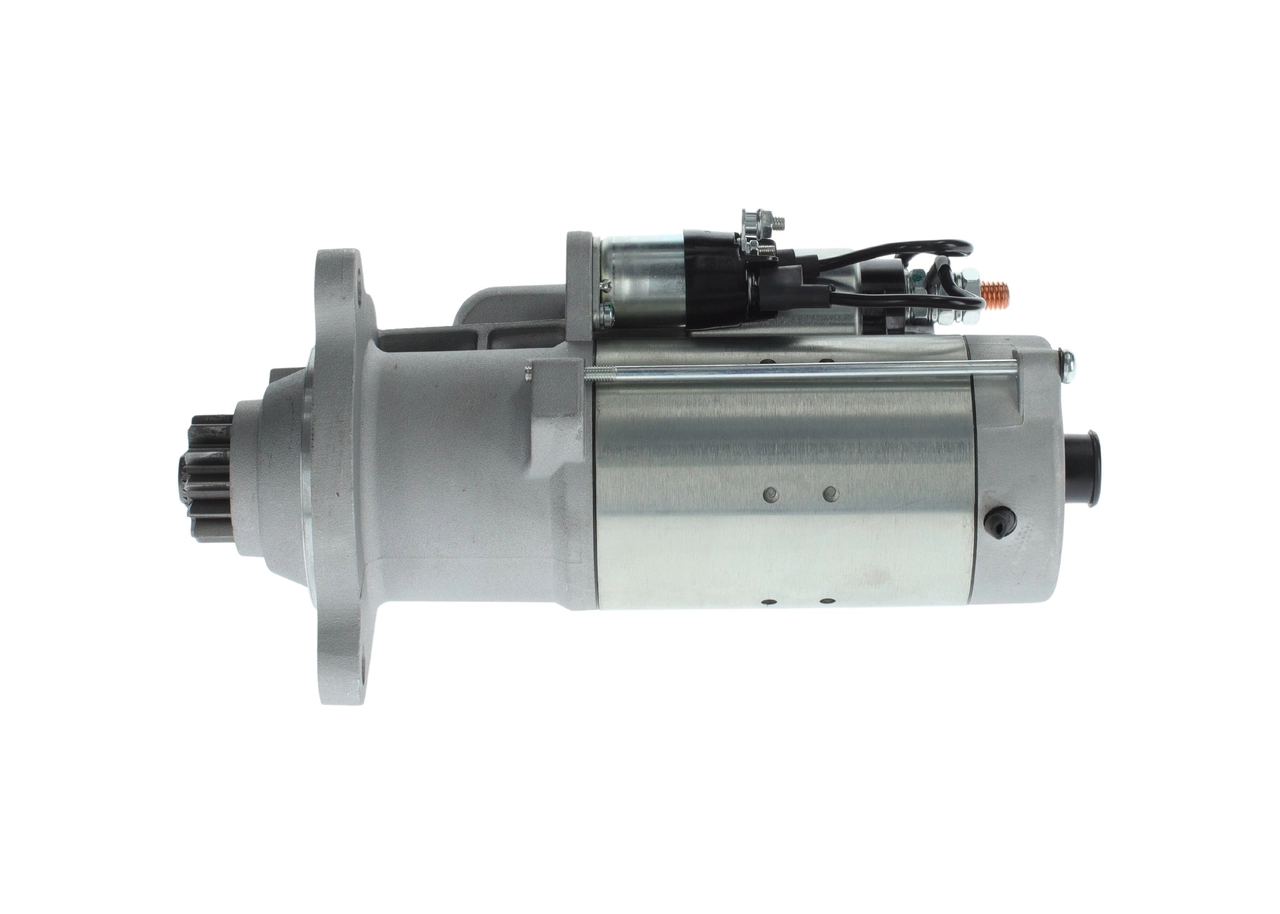

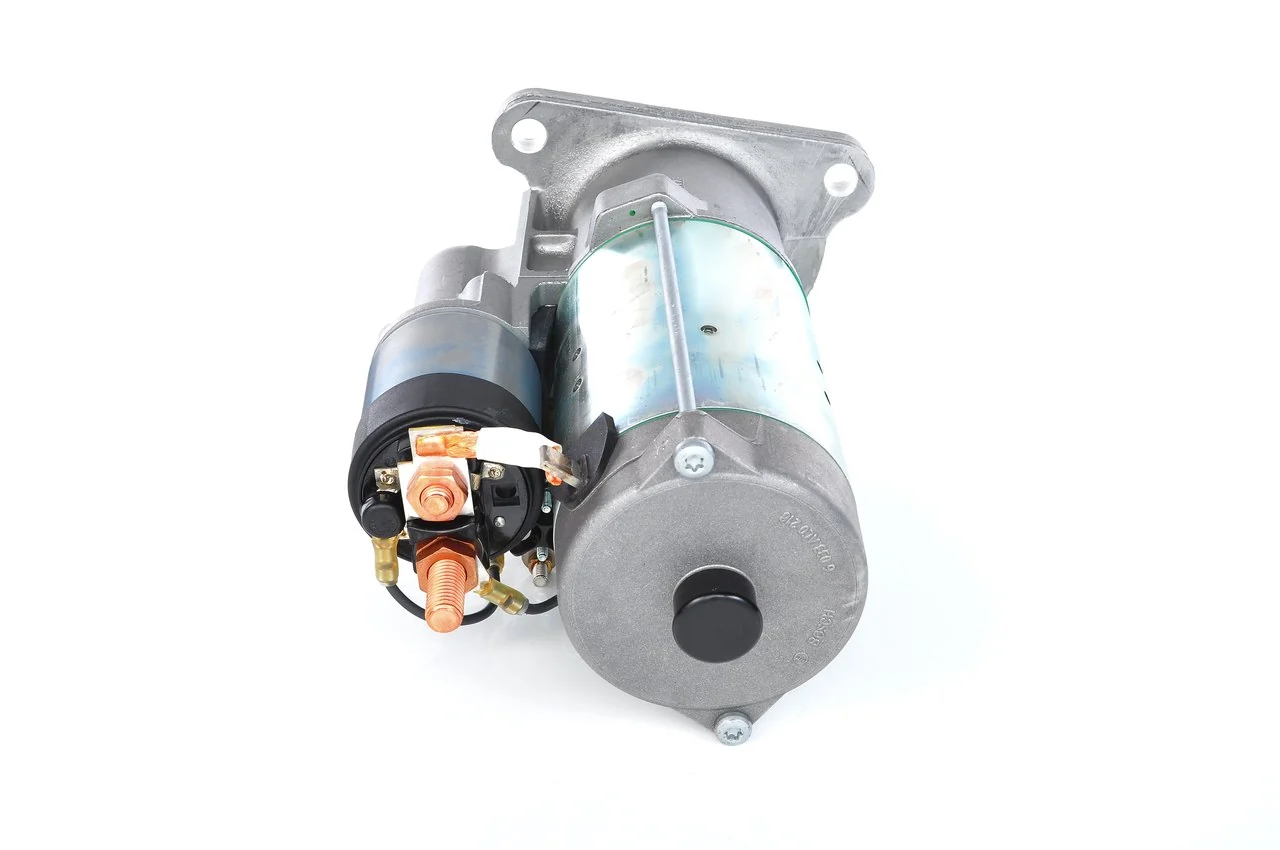

Starter

Code: BOSCH0986022980

GH₵9,813.61

Not available

Specifications

BrandBosch

Length mm347

For model code930-934,MP2; 930-934,MP3

Manufacturer restrictionMITSUBISHI

Number of mounting bores3

Bore diameter mm13,8

Flange diameter mm92

Rated power kw6,2

Rotation directionClockwise rotation

Component number505144/05; 505144/05/09

Number of threaded holes0

Clamp30,50

Position degreerechts

Pinion rest position mm48

Bore diameter 2 mm13,8

Bore 3 mm13,8

Mounting angle degrees85

Mounting bore angle measurement degree85

Starter typeFloating pinion

Voltage v24

Tecdoc engine number16489; 16897; 16898; 16906; 16909; 16911; 16913; 16914; 17473; 17491; 17492; 17644; 17655; 18840; 18997; 19000; 19250; 19251; 19999; 20227; 20282; 20283; 20304; 20305; 20308; 20316; 20324; 20337; 20338; 20341; 21000; 21007; 23250; 23251; 23252; 25103; 25446; 25447; 25467; 25519; 27003; 28082; 29331; 35013

Engine codeOM 457 LA; OM 457.9...; OM 457.935 HLA; OM 457.94...; OM 457.948 LA; OM 457.956 LA; OM 471.9...; OM 541.94...; OM 541.940; OM 541.970; OM 541.971; OM 541.972; OM 541.973; OM 541.974; OM 541.975; OM 541.976; OM 541.977; OM 541.978; OM 541.980; OM 541.981; OM 542.941; OM 542.960

For oe number007 151 46 01

Number of teeth12

Construction year from199901; 199910; 200105; 200210; 200304; 200306; 200502; 200506; 200507; 200509; 200602; 200609; 200610; 200709; 200806; 200808; 201109; 201111; 201207; 201209; 201303; 201304

Construction year to200409; 200512; 200602; 200708; 200808; 200812; 201112

Engine number from..265433
