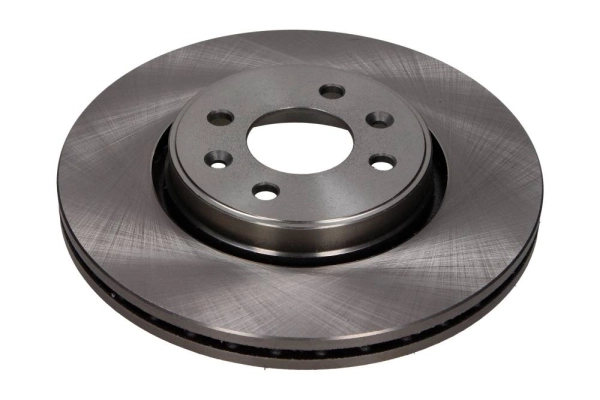

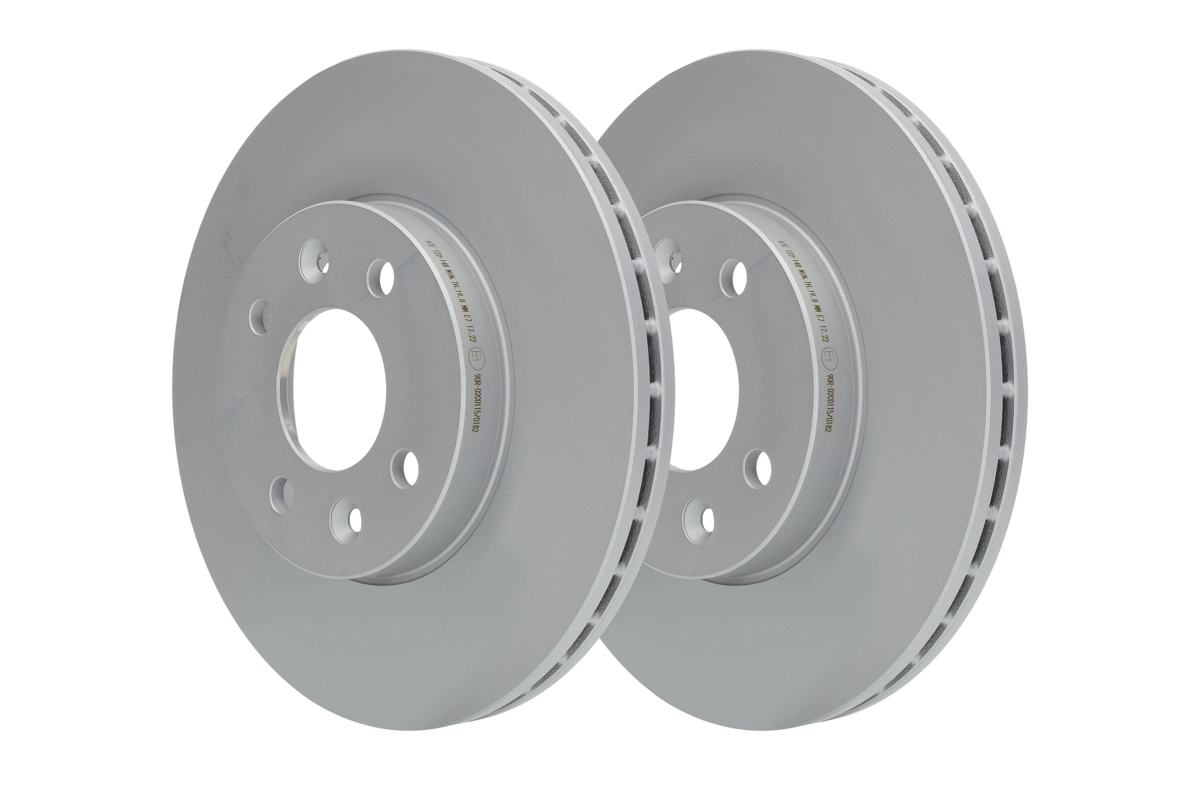

Brake Disc

Code: ATE24012201481
GH₵1,301.66
Not available

Specifications

BrandAte
Fitting positionFront Axle
Height mm44,0
Bolt hole circle mm100,0
Brake disc thickness mm22,0
Brake disc typeVented
Centering diameter mm61,0
Inner diameter mm132,0
MachiningAlloyed/High-carbon
Minimum thickness mm19,8
Number of holes4
Outer diameter mm262,0
Supplementary article info 2with bolts/screws
SurfaceCoated
Test markE1 90R-02C0115/0182
Left right hand drive vehiclesfor left-hand drive vehicles
Bore diameter mm13,5
Not for vehicle configuration line variantBaccara
Rim hole number4
Construction year from199502; 199511; 199611; 199803
Construction year to199501; 199712; 199804; 199808; 199809; 200102
Transmission typeAutomatic Transmission

Compatible Vehicles:

Brake Disc OE Numbers
