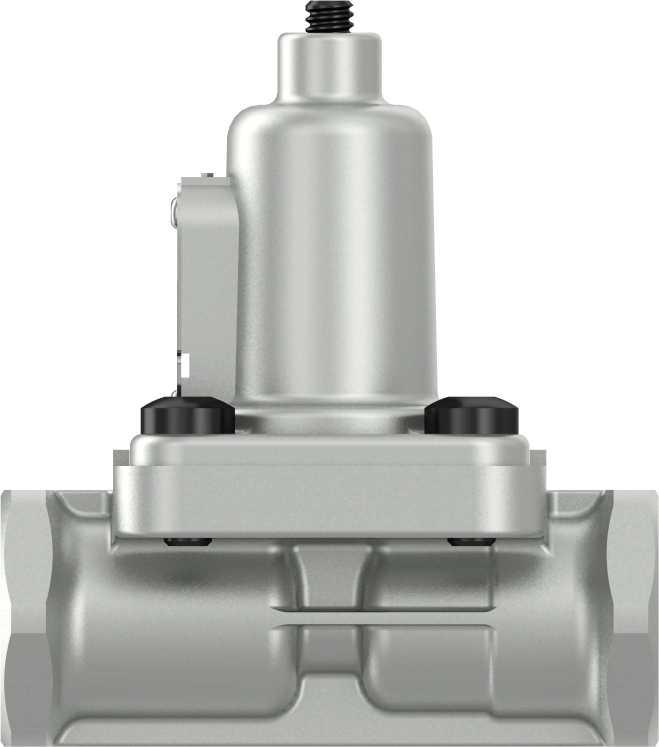

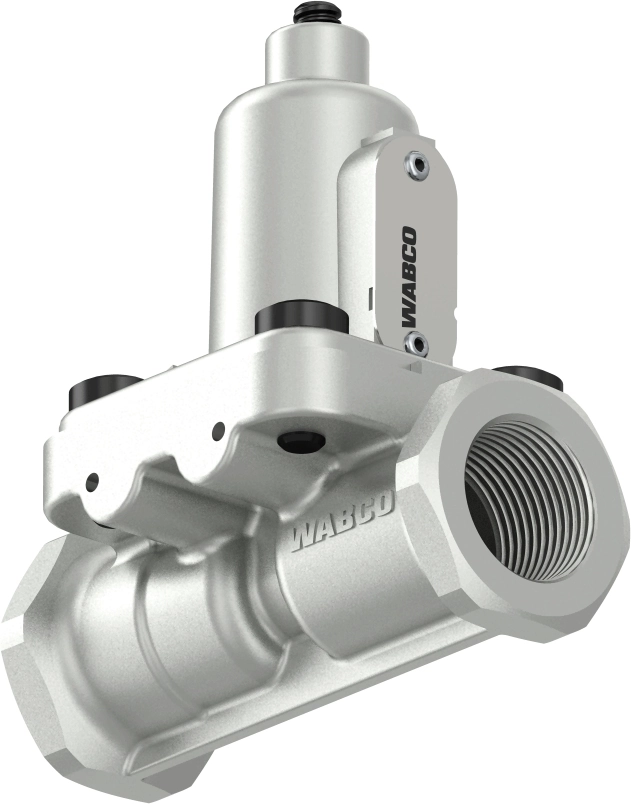

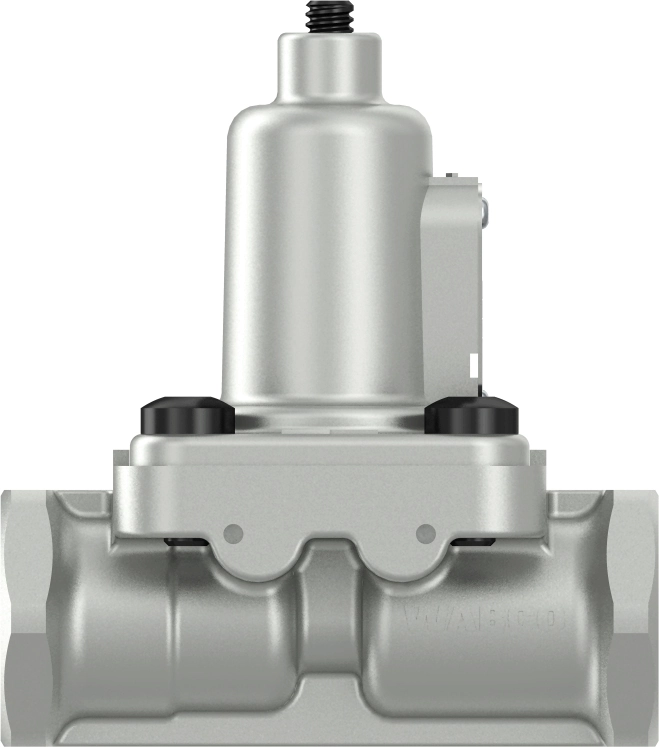

Overflow Valve
Code: WABCO4341001300
GH₵1,454.55
Not available
Specifications
BrandWabco
For model codeF01; T01; T31
Braking driving dynamicsfor vehicles with EBS; for vehicles without EBS
Required quantity1
Connecting threadM 22x1.5
Production number to24.87
Spring typefor vehicles with leaf spring suspension; for vehicles with partial air suspension
Manufacturer idMAN F01; MAN F02; MAN F03; MAN F05; MAN F06; MAN F18; MAN T01; MAN T31
Nominal size mm8
Overflow pressure bar7
Adjustment range bar537
Vehicle typeF02; F03; F05; F06; F18
Vehicle configuration line variant52 81.#2400.0287; 52 81.#2400.0367; 52 81.#2400.0375; 52 81.51001.7989; 52 81.51001.7990; 52 81.51001.7991; 52 81.51001.7992; 52 81.51001.7994; 52 81.51001.7995; 52 81.51001.7996; 52 81.51001.7997; 52 81.51001.7998; 52 81.51001.7999; 52 81.51002.7004; 52 81.51002.7011; 52 81.51002.7015; 52 81.51002.7016; 52 81.51002.7017; 52 81.51002.7039; 52 81.51002.7040; 52 81.51002.7041; 52 81.51002.7042; FAA10; FAA20; RIGID; SUSPL-EC
Axle1st front axle
Weight kg0,048
Operating pressure bar20
Compatible Vehicles:
Overflow Valve OE Numbers
Alternative products:
No alternatives found
