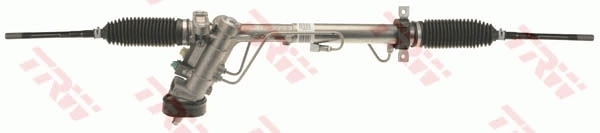

Steering Gear
Code: TRWJRP1301
GH₵12,950.51
Not available
Specifications
BrandTrw
Axle joint length mm175
Operating modeHydraulic
Overall length mm1179
Vehicle equipmentfor vehicles with electro-hydraulic steering; for vehicles with power steering
For pr number1AT; 1N2; 1N5
Left right hand drive vehiclesfor left-hand drive vehicles
Manufacturer restrictionTRW
Braking driving dynamicsfor vehicles with ESP
Stroke mm145
Backflow connector thread sizeM16x1,5

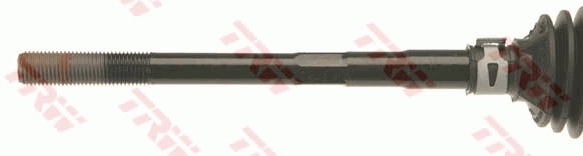

Axle joint thread sizeM14x1,5
Number of teeth on input shaft22

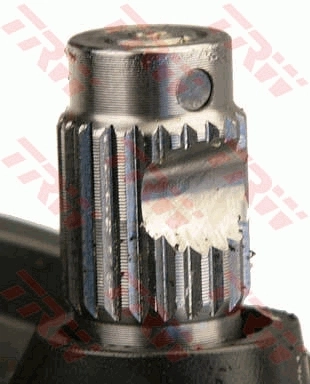

Input shaft connector typetoothed
Input shaft height mm65
Input shaft diameter mm15,1
Pressure line connection thread sizeM14x1,5
Length mm827
