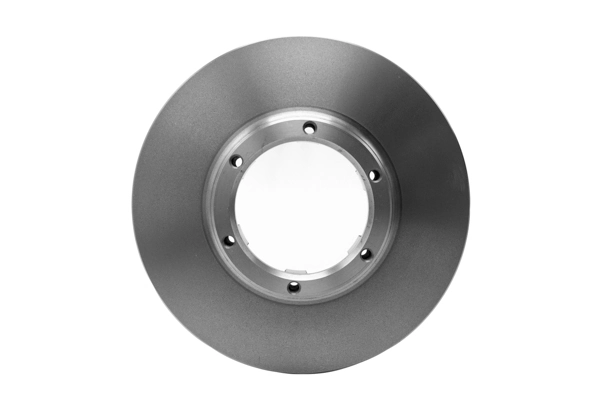

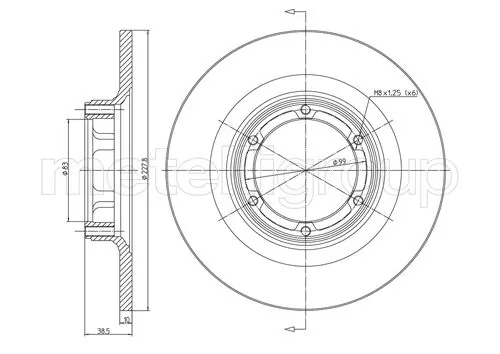

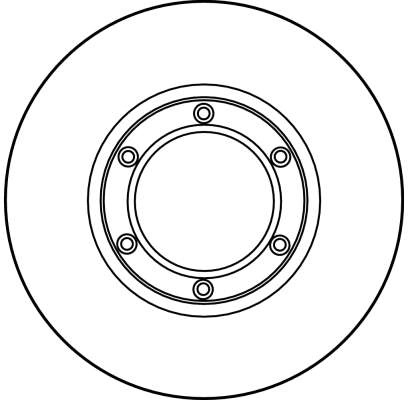

Brake Disc

Code: TRWDF1005
GH₵625.50
Not available

Specifications

BrandTrw
Fitting positionFront Axle; Rear Axle
Height mm38,5
Bolt hole circle mm99
Brake disc thickness mm10
Brake disc typesolid
Centering diameter mm83
Colourblack
Minimum thickness mm9
Number of holes6
Outer diameter mm228
SurfacePainted
Test markE190R-02 C0190/0628
Thread sizeM8 x 1,50
Construction year from197012; 197302; 197708; 198107; 198208; 198301; 198504; 198609
Construction year to197604; 197707; 197906; 198102; 198106; 198212; 198308; 198503; 198510; 198608; 198807; 198808; 198809; 199106; 199307; 199412; 199502

Compatible Vehicles:

Brake Disc OE Numbers
