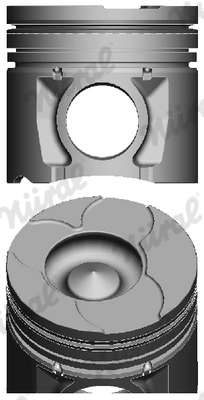

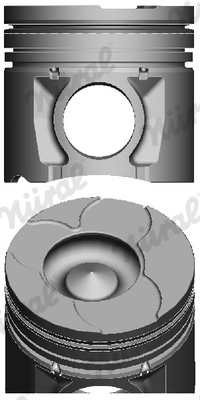

Piston
Code: MAHLE1511200
GH₵4,725.30
In stock
Specifications
BrandMahle
Supplementary article info 2without cooling duct
SurfaceHard Anodized
Net weight g1416
Packaging height cm14,30
Packaging length cm11,6
Packaging width cm11,60
Production number93 L 45
Component number3. DSF 3.0 Cr
Cylinder bore mm93,00
Bolt head diameter mm35,0
Machinedwith cut-out for oil jet
Bolt length mm77,0
Compression height mm56,15
Connecting rod designTrapezoidal Connecting Rod
Piston clearance mm0,1
Recess depth 1 mm18,5
Recess diameter mm47,1
Top land height mm9
Valve pocket depth 1 mm1,5
Engine number from161772; 162566
Length mm87,2
