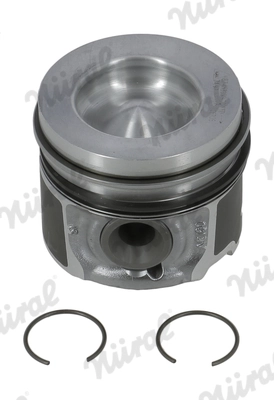

Piston
Code: MAHLE039PI00127000
GH₵4,441.15
Not available
Specifications
BrandMahle
Supplementary article info 2with cooling duct
SurfaceCoated
Net weight g593
Packaging height cm12,80
Packaging length cm9,5
Packaging width cm9,50
Production number75 L 118
Component number3. DSF 2.0 Cr
Cylinder bore mm75
Bolt head diameter mm26
Machinedwith cut-out for oil jet
Bolt length mm58
Compression height mm41,7
Piston clearance mm0,070
Recess depth 1 mm13,1
Recess diameter mm45,6
Top land height mm8,75
Engine code9HF (DV6FDU); B 16 DT (DV6FD); BHX (DV6FC); BHZ (DV6FC)
Length mm63,7
