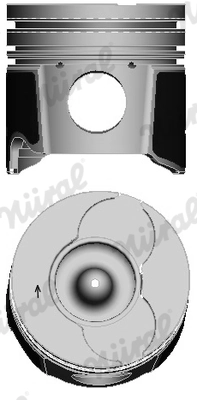

Piston
Code: MAHLE0399901
GH₵1,981.82
Not available
Specifications
BrandMahle
Supplementary article info 2without cooling duct
SurfaceCoated
Net weight g623
Packaging height cm12,80
Packaging length cm9,5
Packaging width cm9,50
Production number85 L 123
Component number3. DSF 3.0 Cr
Cylinder bore mm85,6
Bolt head diameter mm28,0
Machinedwith cut-out for oil jet
Bolt length mm70,0
Compression height mm46,75
Connecting rod designTrapezoidal Connecting Rod
Piston clearance mm0,08
Recess depth 1 mm18,3
Recess diameter mm38,0
Top land height mm8,4
Valve pocket depth 1 mm1,0
Engine codeRHK; RHK (DW10UTED4); RHP (DW10TD)
Length mm80,8
