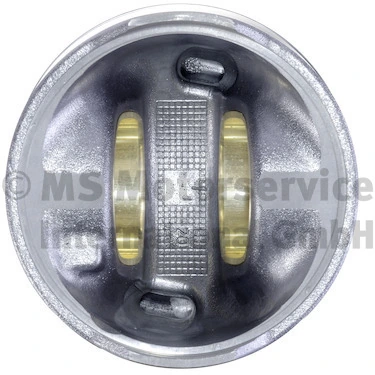

Piston
Code: KOLBENSCHMIDT42125612
GH₵7,776.73
Not available
Specifications
BrandKolbenschmidt
Production number108122
Cylinder bore mm108,5
Repair stage0,50 mm
Bolt head diameter mm44
Bolt length mm88
Compression height mm63,7
Piston clearance mm0,14
Recess depth 1 mm18,47
Recess diameter mm65
Valve pocket depth 1 mm1,7
Valve pocket depth 2 mm1,7
Tecdoc engine number18182; 18183; 18184; 19968; 19969; 19970; 19971; 22957; 22958; 22959; 22960; 22961; 22962; 22963; 22965; 22966; 22967; 22969; 22984; 22995; 23059; 23060; 23164; 23670; 23671; 23679; 23681; 23682; 23686; 23962; 27703; 27704; 27705; 27706; 27707; 27708; 27709; 27710; 27724; 30438; 30439; 30442; 31909; 31910; 31911; 31912; 31913; 31914; 39540; 39541; 47996
Length mm102,8
Compatible Vehicles:
Piston OE Numbers
This Product Includes:
Piston RingKOLBENSCHMIDTThis product is not available ×1
Piston RingKOLBENSCHMIDTThis product is not available ×1
Piston RingKOLBENSCHMIDTThis product is not available ×1
Alternative products:
No alternatives found
