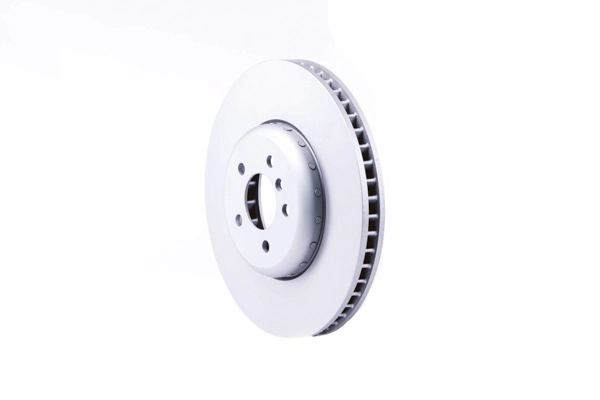

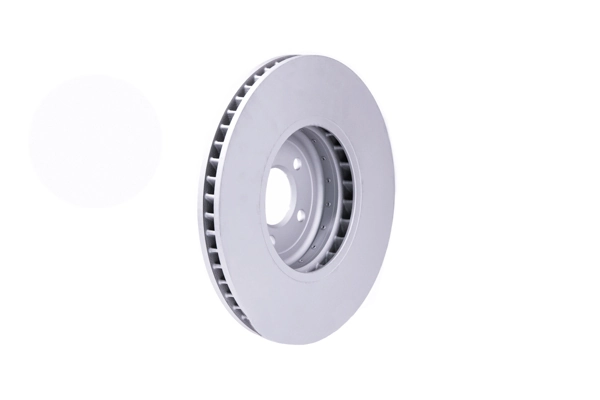

Brake Disc

Code: HELLA8DD355120691
GH₵7,422.63
Not available

Specifications

BrandHella

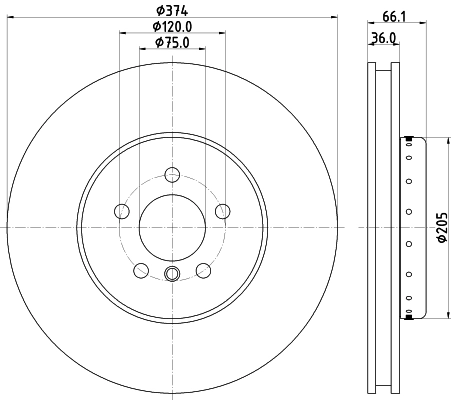

Brake disc thickness mm36
Centering diameter mm75
MachiningHigh-carbon
Number of bolts screws1
Paired article number8DD 355 120-681
Supplementary article info 2with bolts/screws
SurfaceCoated
Vehicle equipmentfor vehicles without sports package
Braking systemfor vehicles without high-speed brake system; not for vehicles with reinforced brakes
Hole arrangement number05/06
Not for country specific designChina; USA
Wheel bolt bore diameter mm16,5
Construction year to200909
Fitting positionFront Axle Right
Height mm66,1
Inner diameter mm186,8
Outer diameter mm374
Minimum thickness mm34,4
Weight kg13,7
Brake disc typetwo-part brake disc
Bolt hole circle mm120
