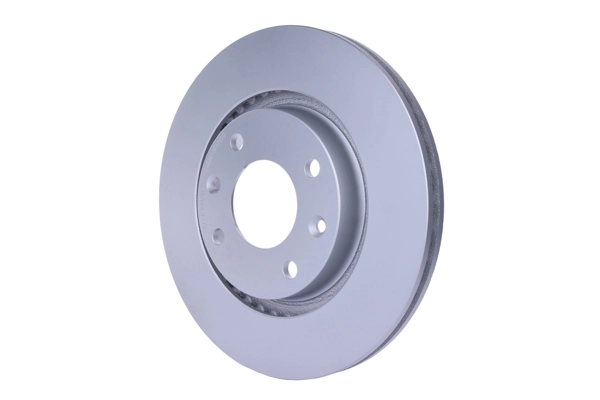

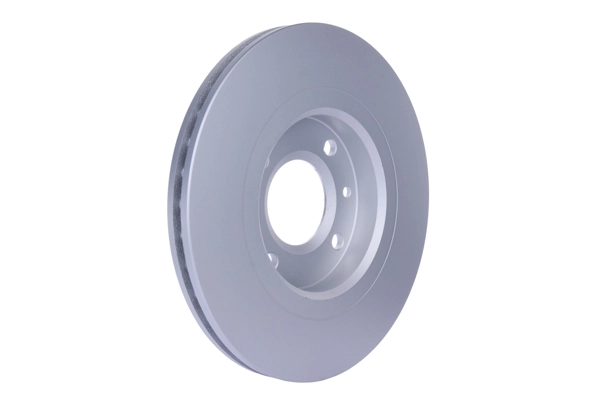

Brake Disc

Code: HELLA8DD355108351
GH₵918.45
Not available

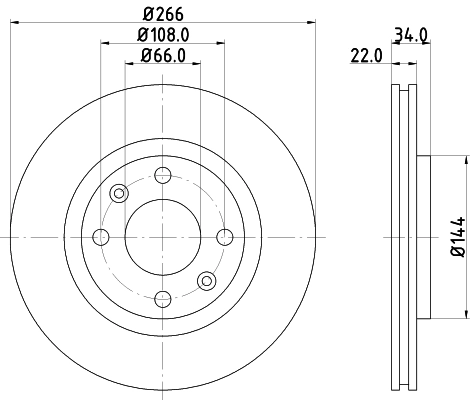

Specifications

BrandHella
Brake disc thickness mm22
Centering diameter mm66
Supplementary article info 2without wheel studs
SurfaceCoated
Vehicle equipmentfor vehicles without electric parking brake
Suspensionfor vehicles without increased axle load
Manufacturer restrictionBosch; Bosch, Lucas; Lucas
Production date from04.11.2001; 04.12.2006; 14.06.2010; 16.09.2001; 30.09.2002
Production date to29.09.2002
Braking driving dynamicsfor vehicles without ESP
Brake size14""
For dam number from09128FV; 09821UW; 1097778; 11249CJ
Hole arrangement number04/06
Wheel bolt bore diameter mm13
For dam number to1137678
For rpo number from09079; 09128; 09457; 10984; 12271
For rpo number up to09456
Construction year from200008
Fitting positionFront Axle
Height mm34
Inner diameter mm133,2
Outer diameter mm266
Minimum thickness mm20
Weight kg5,1
Brake disc typeExternally Vented
Bolt hole circle mm108

Compatible Vehicles:

Brake Disc OE Numbers
