Relay, main current

Code: HELLA4RA007793037

GH₵122.49

Not available

Specifications

BrandHella

Colourblack

Combi switch functionHigh Performance Contact

Number of pins4

Quantity175

Supplementary article info 2with resistor

Supplementary article supplementary infowithout holder

Vehicle equipmentfor veh. with 2-point pneum. driver cab suspen.; for veh. with 4-point pneum. driver cab suspen.

For pr number8FC

Special purpose vehiclefor taxis

Drive typeAll-wheel Drive

Protection type ip codeIP54

Plug type idB3

Vehicle main currentfor vehicles with starter and deep cycle batteries

Relay functionAir Conditioning; Air Suspension; Air compressor; All-Wheel Drive; Auxiliary Hydraulic Pump, transmission oil (hybrid); Auxiliary Water Pump; Battery main switch; Central electrics; Coolant water pump; Engine control unit; Fan, engine cooling; Fan, heater/air conditioning; Heated rear window; Heated windscreen; Ignition Switch; Park Distance Control; Parking Heater; Pre-glow device; Pump, fuel pre-supply; Pump, vacuum; Seat Heating; Secondary Air System; Shut-off Valve, fuel; Start-stop system; Starter; Suction pipe pre-heating; Washer Fluid Pump, headlight cleaning; X contact relief

Temperature range c80

Capacity at 12v50A

Relay number/100; /644; 1,2/644; 1,4/644; 1,9/644; 1-3,5/644; 1/100; 1/644; 10,12/644; 10,14/644; 100,644; 103; 15/644; 2/100; 2/18; 2/644; 3,5/644; 3,8/644; 3/644; 4; 4/18; 4/644; 644; 644,100; 7,10/644; 8,10/644; 8,12/644; 8,9/644; 8/644; A1/644; D5/644; J434; J7,SF13-15; R5/644; SF13-15; SF13-15/; sf13-15

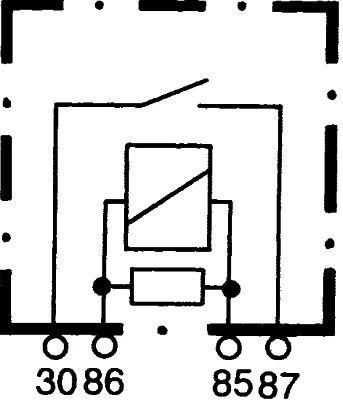

Wiring diagrammeS2

Capacitive load a44

Inductive load a46

Ohmic load a50

Voltage v12

Tecdoc engine number15548; 15549; 15550; 15551; 15552; 15888; 16167; 17357; 18245; 18246; 18268; 18773; 18777; 18779; 18780; 18798; 18839; 18843; 18977; 19112; 19427; 19819; 19901; 19902; 20032; 20033; 20034; 20035; 20036; 20037; 20038; 20039; 20040; 20041; 20042; 20043; 20044; 20045; 20046; 20047; 20058; 20062; 20063; 20488; 20710; 20711; 20712; 20838; 20866; 21066; 21067; 21068; 21069; 21590; 22665; 22674; 22676; 23136; 23301; 23302; 23304; 23305; 23306; 23307; 23308; 23309; 23310; 23352; 23354; 23367; 23369; 23370; 23371; 23372; 24422; 24423; 24424; 24425; 24426; 24430; 24431; 24432; 24433; 24434; 24435; 24436; 24437; 24438; 24439; 24456; 24457; 24458; 24459; 24460; 24461; 24462; 24463; 24464; 24465; 24466; 24467; 24653; 24654; 24655; 25701; 25747; 25793; 25794; 25795; 25796; 25797; 25798; 25799; 25800; 25801; 25802; 25804; 25806; 26072; 26450; 26451; 26452; 26453; 26454; 26455; 26456; 26457; 26458; 26459; 26460; 26461; 26462; 26463; 26464; 26465; 26466; 26467; 26468; 26469; 26470; 26471; 26474; 26475; 26476; 26477; 26488; 26

For oe number1433498; 6G9T-14B192-EA; 9441158

Vehicle identification number vin from5P-6-000 001; 7H-C-000 001; TH-C-000-001

Engine number from20825; 20828; 23106

Construction year from201505

Construction year to201505

Fitting positionDriver side; Engine Compartment; Left Rear; Vehicle Rear; at release fork; engine sided
