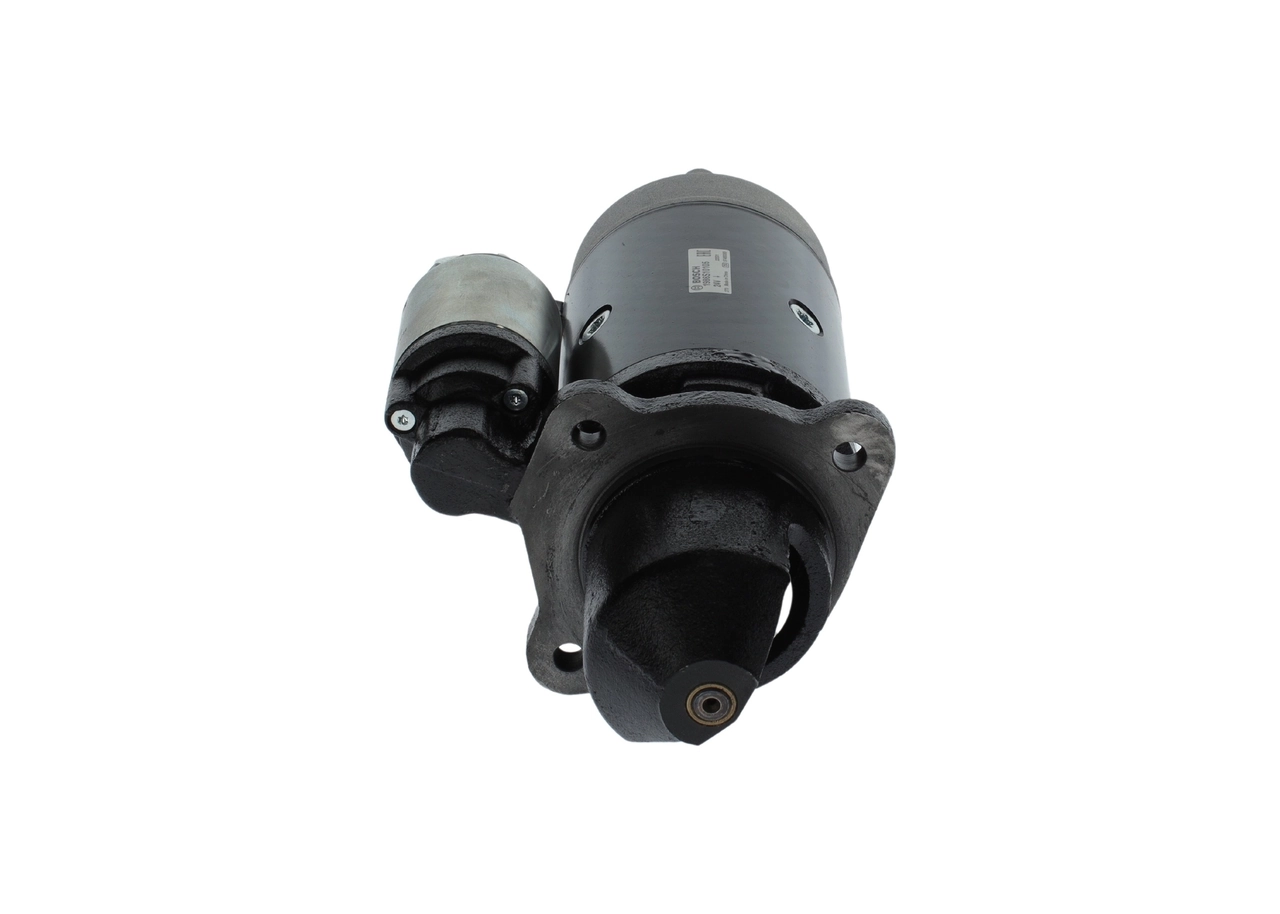

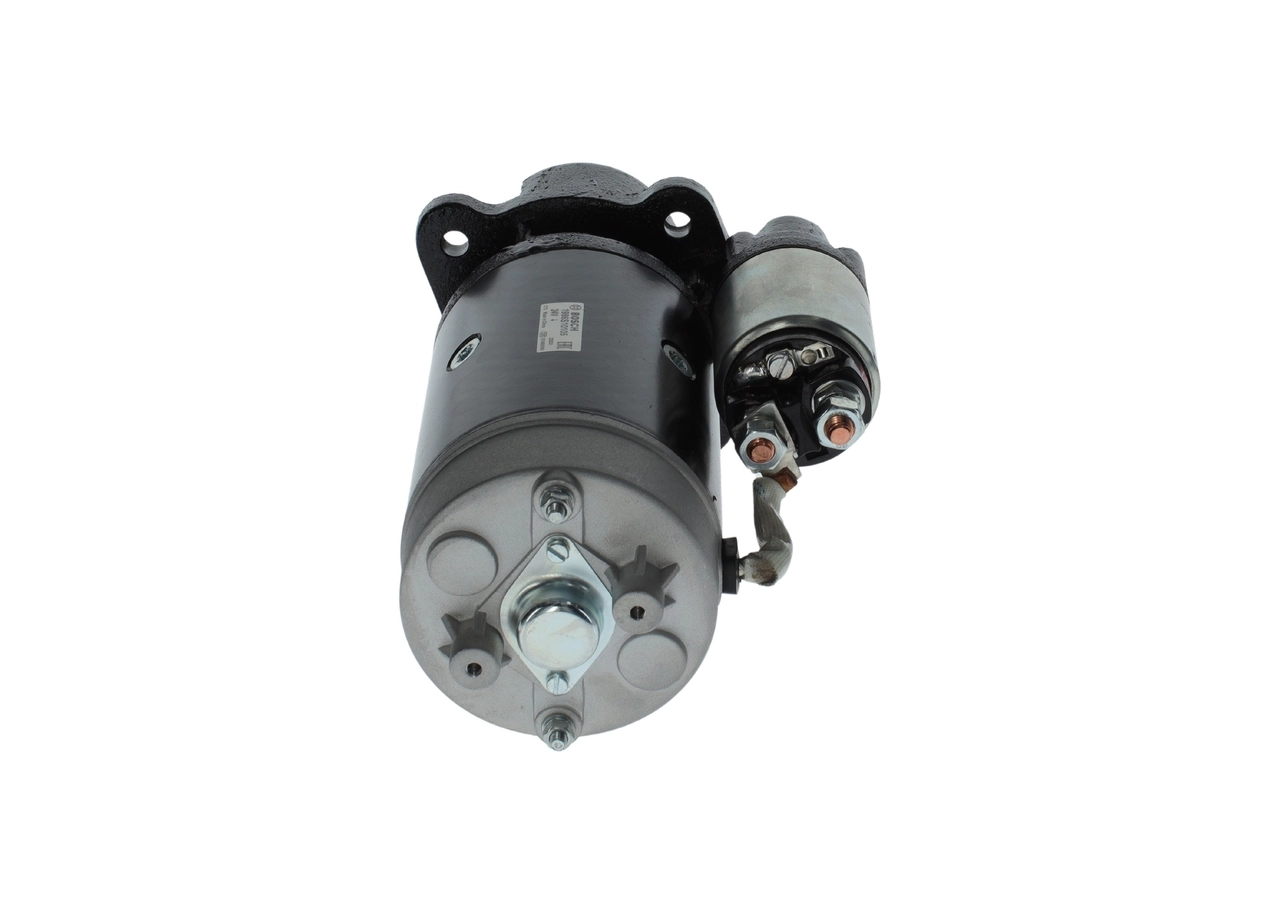

Starter

Code: BOSCH1986S10105

GH₵7,763.01

Not available

Specifications

BrandBosch

Length mm341

Number of mounting bores3

Bore diameter mm10,5

Flange diameter mm89

Rated power kw4

Rotation directionClockwise rotation

Number of threaded holes0

Clamp30,50

Vehicle main currentfor vehicles with 24V main current

Position degreerechts

Pinion rest position mm48

Bore diameter 2 mm10,5

Bore 3 mm10,5

Jaw opening angle measurement degree120

Mounting angle degrees30

Mounting bore angle measurement degree30

Starter typeSelf-supporting

Voltage v24

Tecdoc engine number14688; 16552; 2202; 2203; 2204; 5679; 5681; 5693; 5694; 5695; 5696; 5698; 5699; 5703; 5704; 5705; 5706; 5707; 5711; 5716; 5717; 5718; 5719; 5724; 5725; 5726; 5739; 5740; 5742; 5745; 5746; 5748; 5756; 5757; 5766; 6017; 6018; 6027; 6029; 6030; 6031; 6033; 6035; 6039; 6040; 6041; 6043; 6045; 6049; 6052; 6057; 6058; 6073; 6074; 6077; 6089; 6090; 6091; 6092; 6098; 6277; 6282; 6320; 7995; 8005; 8006; 8007; 8010; 8048; 8052; 8053; 8062; 8065; 8067; 8068; 8070; 8073; 8074; 8076; 8077; 8078; 8079; 8080; 8081; 8082; 8083; 8084; 8086; 8088; 8093; 8094; 8095; 8098; 8099; 8100; 8102; 8103; 8105; 8106; 8107; 8115; 8116; 8124; 8126; 8135; 8136; 8137; 8138; 8146; 8147; 8148; 8149; 8165; 8166; 8167; 8168; 8169; 8170; 8189; 8196

Engine codeOM 354.902 LA; OM 354.924 LA; OM 354.925 LA; OM 364.9...; OM 364.906; OM 364.911; OM 364.920<Euro 1>; OM 364.95...; OM 366 A; OM 366.9...; OM 366.906; OM 366.918; OM 366.995 LA

For oe number004 151 86 01

Number of teeth9

Construction year from197408; 198403; 198404; 198406; 198408; 198410; 198501; 198507; 198512; 198601; 198606; 198612; 198706; 198810; 198901; 198909; 199002; 199101; 199102; 199105; 199201; 199202; 199205; 199212; 199303; 199307; 199401; 199403; 199406; 199408

Construction year to199103; 199207; 199212; 199302; 199306; 199408; 199509; 200004; 200102; 200109; 200208; 200209; 200909

Engine number from..146294; ..325961

Engine number to..325960
