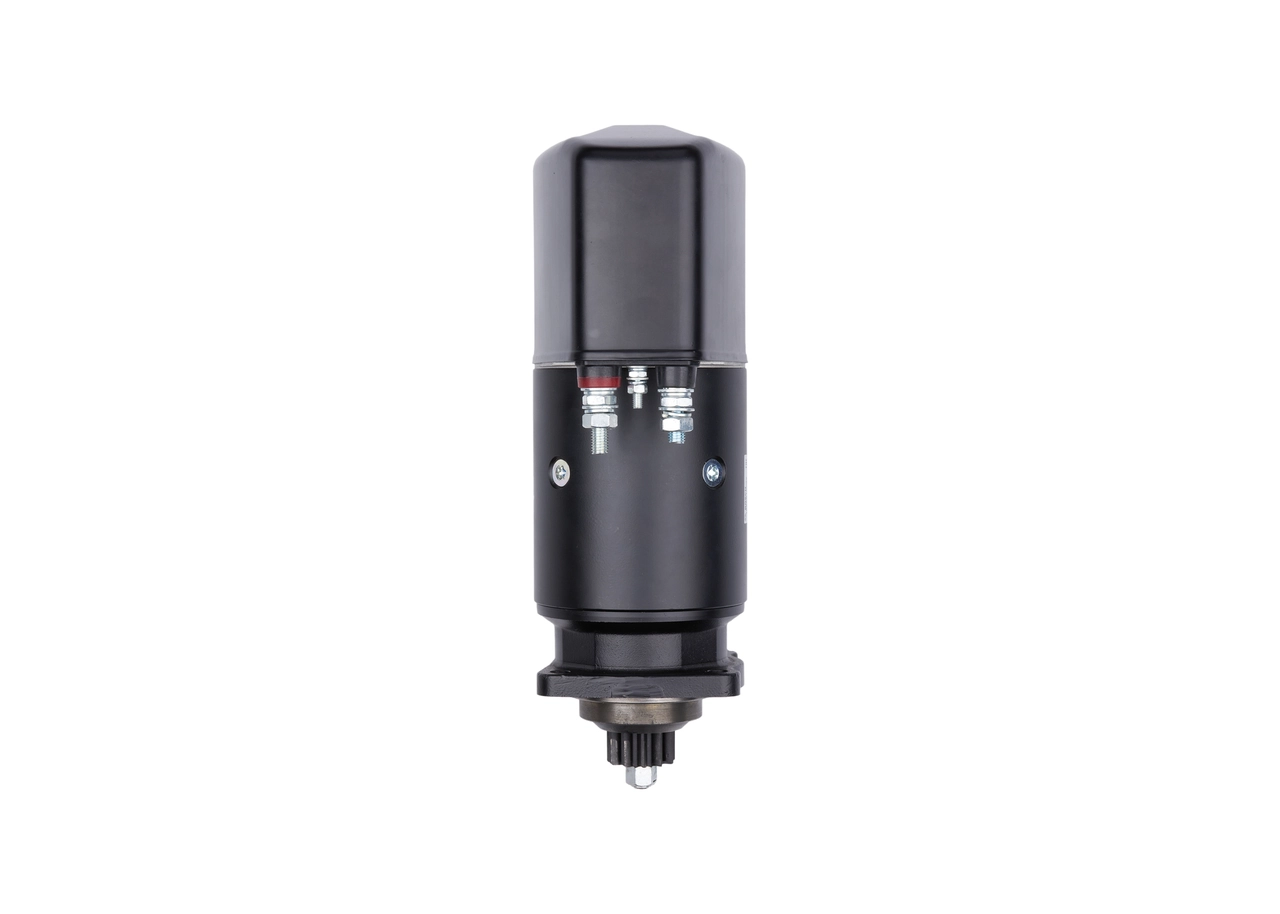

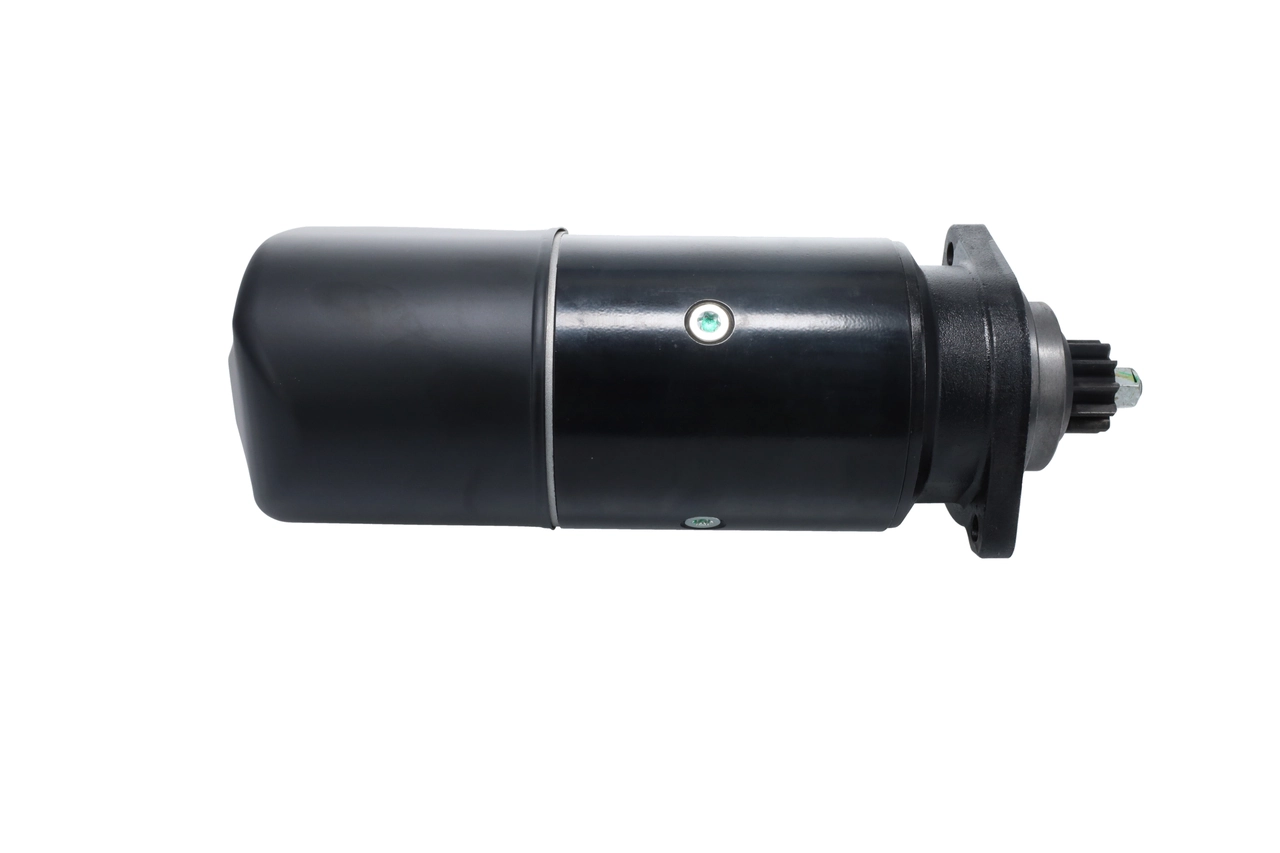

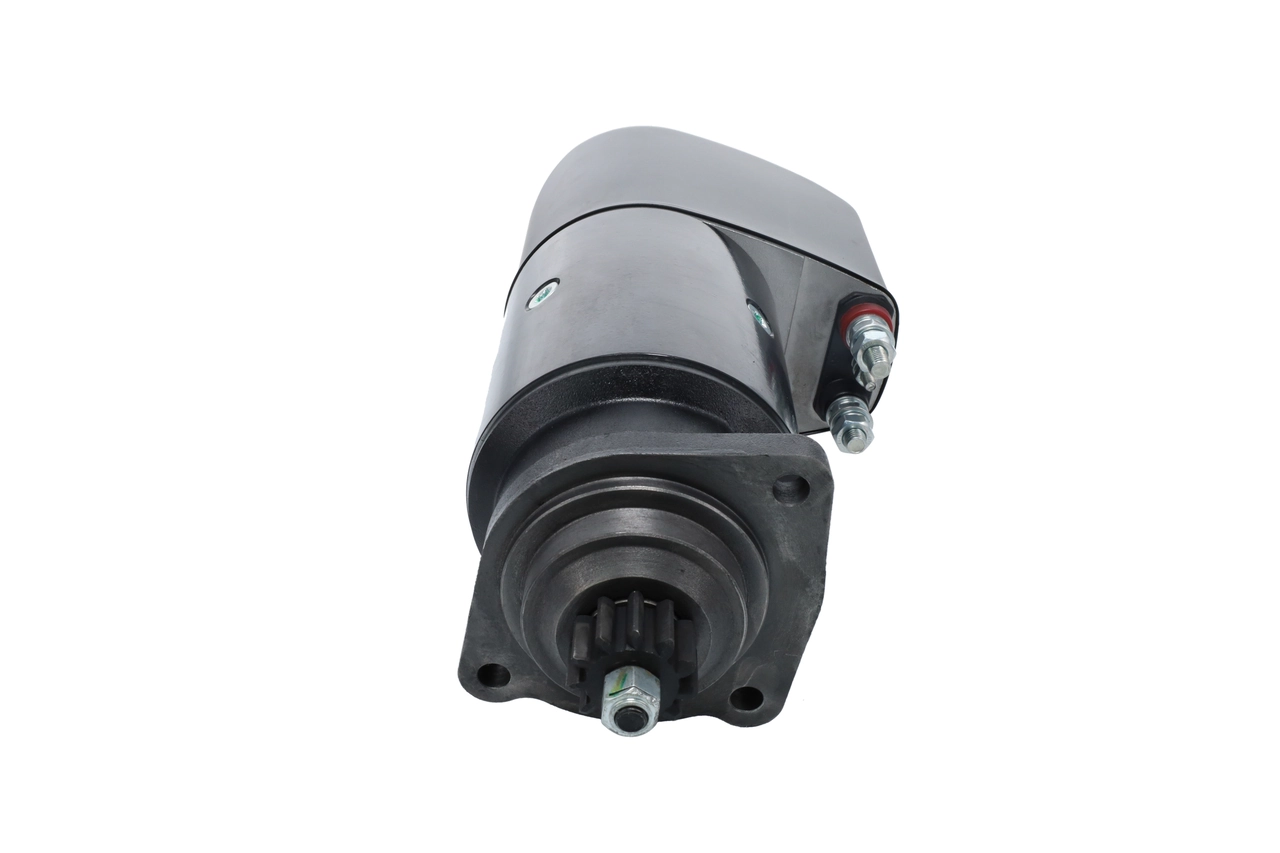

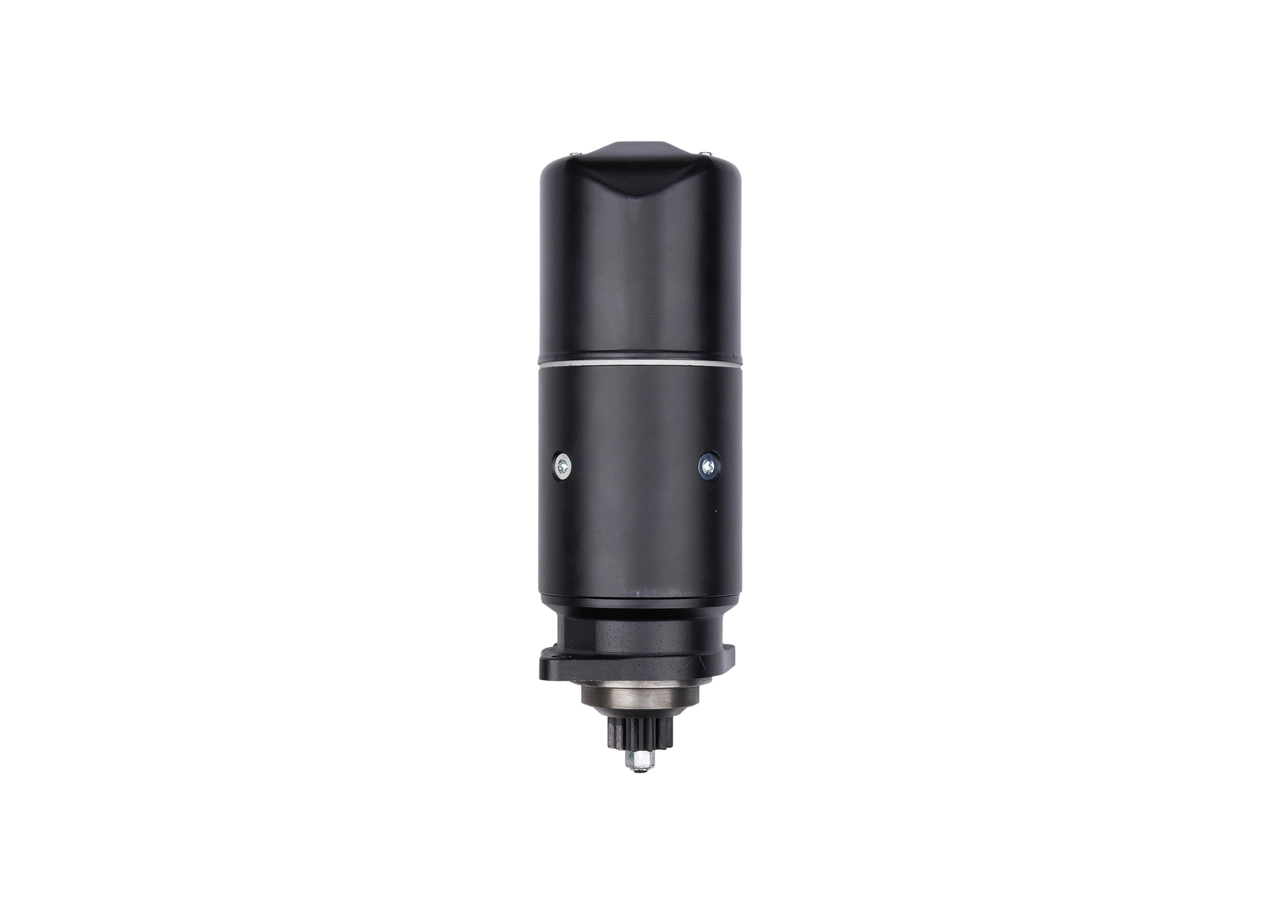

Starter
Code: BOSCH1986S10098
GH₵8,119.02
Not available
Specifications
BrandBosch
Length mm387
Number of mounting bores3
Bore diameter mm10,5
Flange diameter mm89
Rated power kw5,4
Rotation directionClockwise rotation
Number of threaded holes0
Clamp30,31,50
Position degreerechts
Pinion rest position mm47,5
Bore diameter 2 mm10,5
Bore 3 mm10,5
Mounting angle degrees45
Mounting bore angle measurement degree45
Starter typeFloating pinion
Voltage v24
Tecdoc engine number16235; 21342; 26264; 47587; 5900; 6247; 9122; 9123; 9124; 9153; 9155; 9156; 9158; 9160; 9162; 9164; 9169; 9170; 9186; 9252
Engine codeTD 101 G; TD 102 F; TD 102 FL; TD 121 FD; TD 121 GD; TD 122 FH; TD 122 FL
Number of teeth11
Construction year from198401; 198406; 198509; 198609; 198612; 198702; 198704; 198710; 198712; 198805; 198910; 199105; 199109; 199201; 199206; 199211; 199502
Construction year to198504; 198604; 198904; 198912; 199212; 199312; 199409; 199412; 199510; 199602; 200109
Engine number from121586
