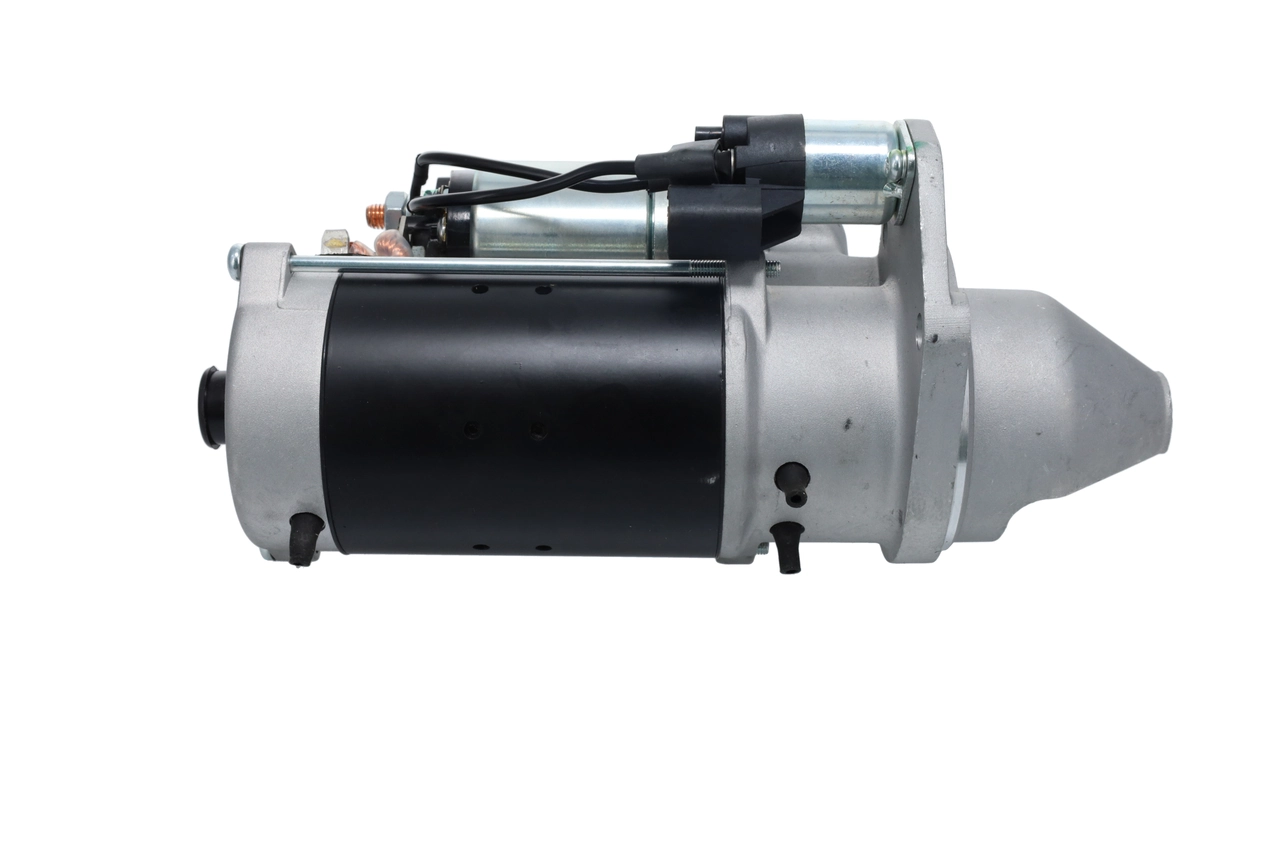

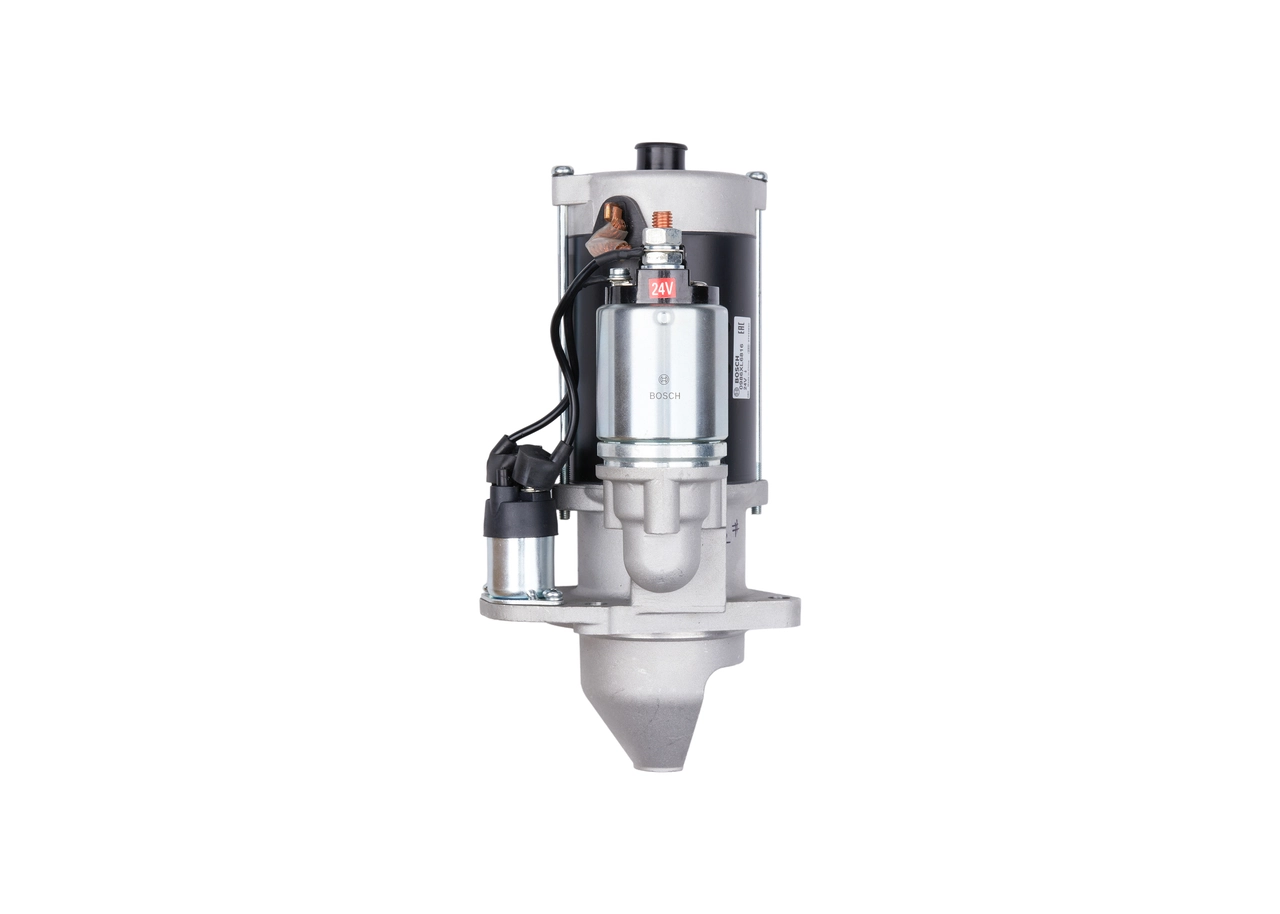

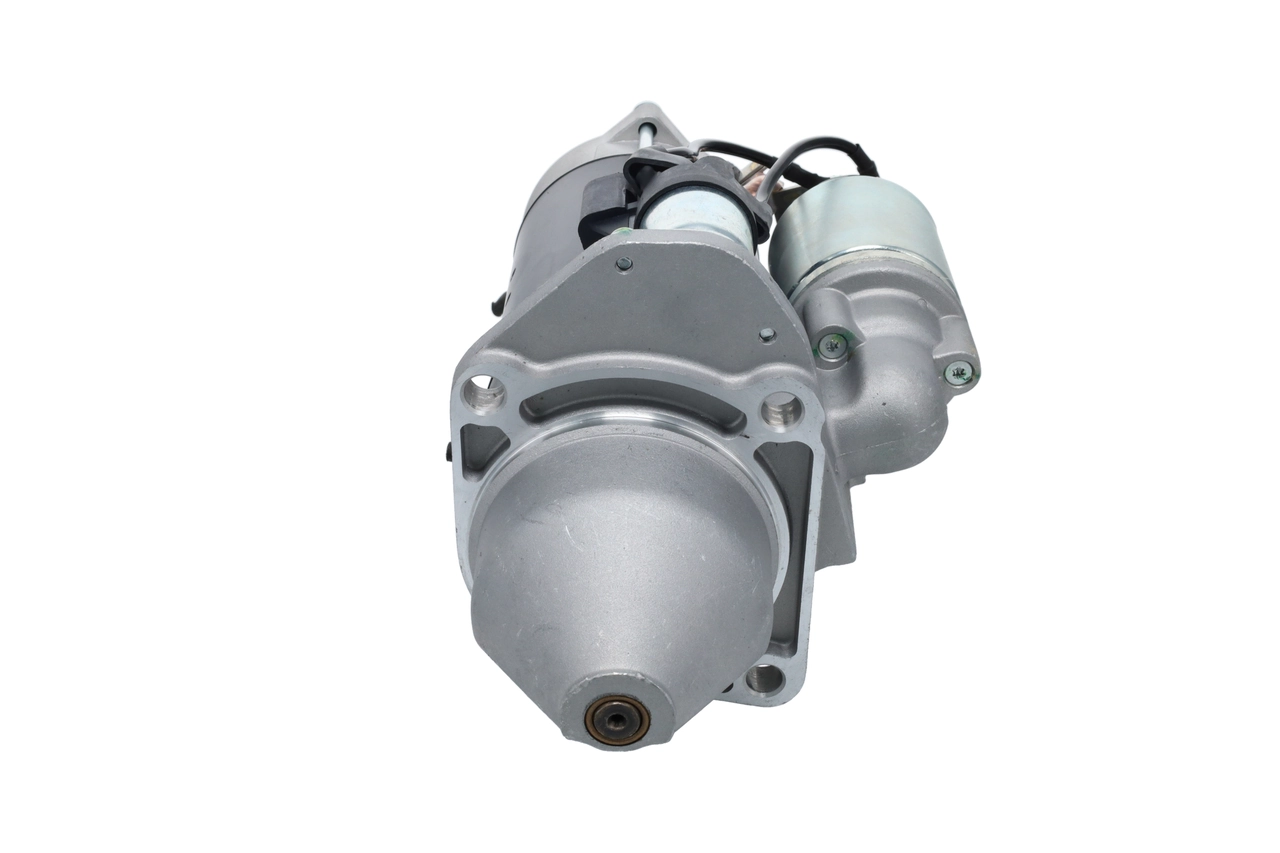

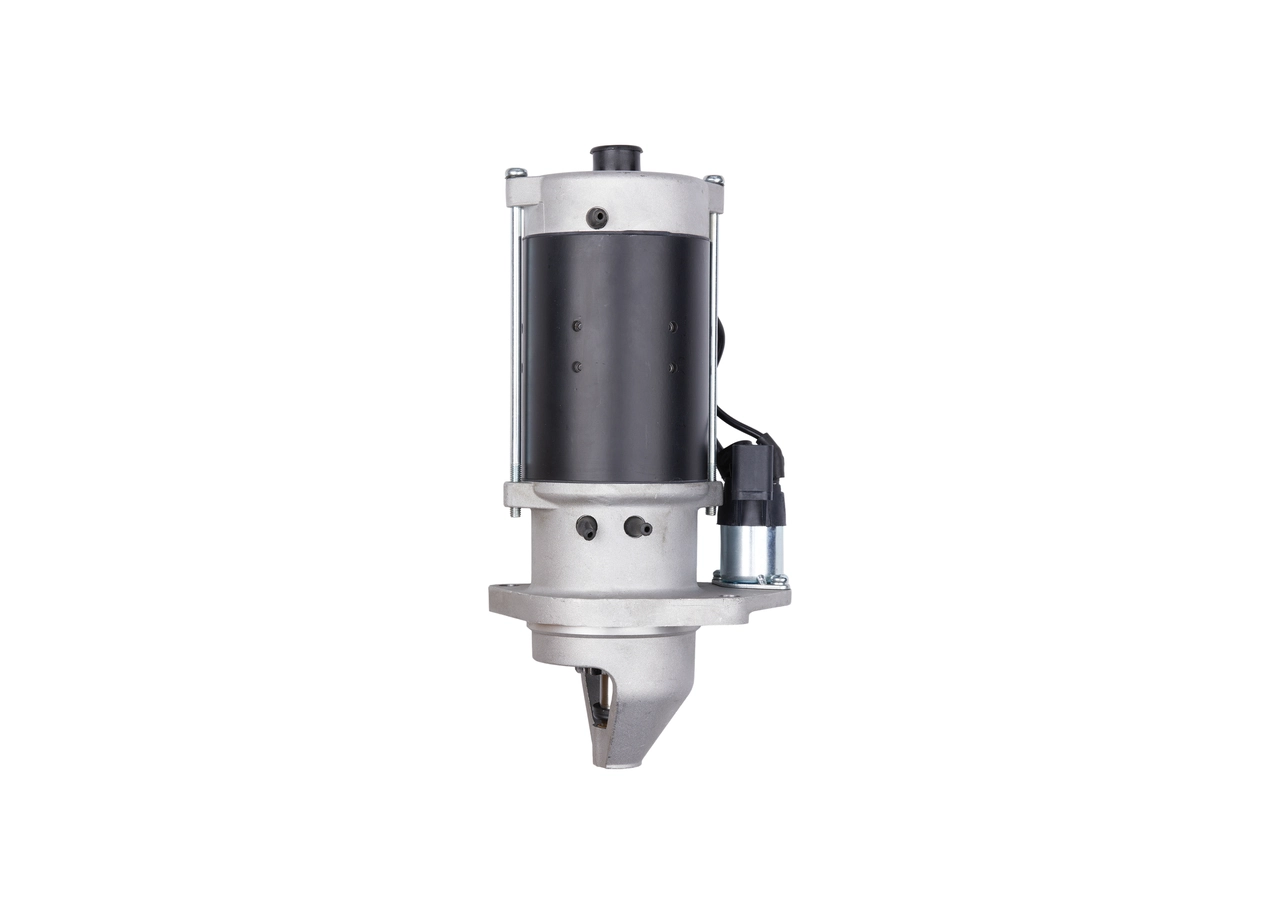

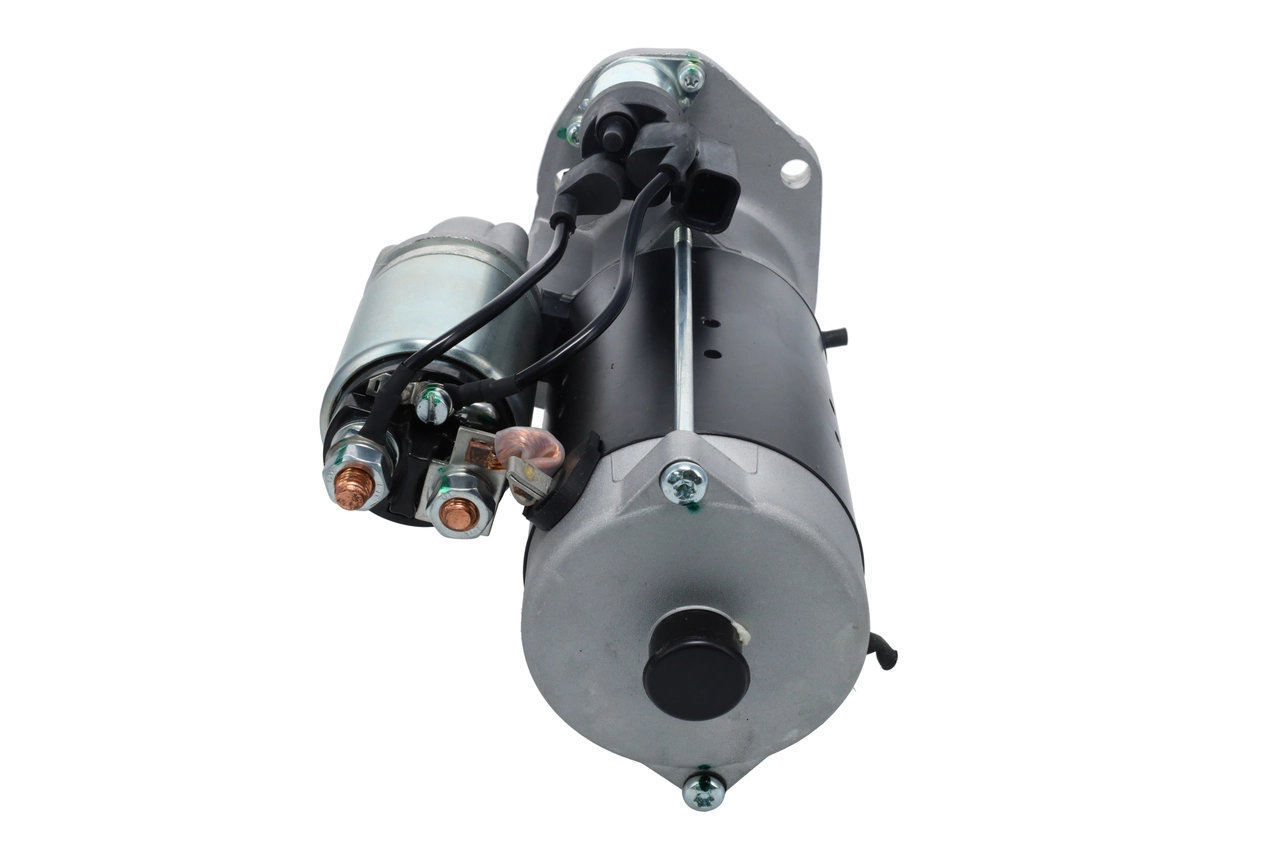

Starter
Code: BOSCH1986S10077
GH₵8,177.78
Not available
Specifications
BrandBosch
Supplementary article supplementary infofor flywheel casing after SAE1; for flywheel casing after SAE2
Number of mounting bores3
For type codeN01; N03; N11; N13
Bore diameter mm10,5
Flange diameter mm89
Rated power kw4
Rotation directionClockwise rotation
Number of threaded holes0
Clamp30,50,51
Position degreelinks
Pinion rest position mm28
Bore diameter 2 mm10,5
Bore 3 mm10,5
Jaw opening angle measurement degree20
Mounting angle degrees30
Mounting bore angle measurement degree30
Starter typeSelf-supporting
Voltage v24
Tecdoc engine number16754; 16755; 18179; 18180; 18182; 18183; 18185; 18186; 18703; 18704; 19113; 19114; 19970; 19971; 22957; 22958; 22970; 22971; 22972; 23059; 23060; 23164; 23670; 23671; 23681; 23682; 39542
For oe number51 26201 7222
Number of teeth11
Engine codeD 0836 LFL50; D 0836 LFL51; D 0836 LFL52; D 0836 LOH40; D 0836 LOH41; D 0836 LOH51; D 0836 LOH55; D 0836 LOH57; D 0836 LOH58; D 0836 LOH60; D 0836 LOH62; D 0836 LOH63; D 0836 LOH64; D 0836 LOH65
Construction year from200306; 200401; 200406; 200503; 200505; 200510; 200601; 200602; 200604; 200607; 200609; 200610; 200702; 200703; 200704; 200709; 200807; 200901; 201002; 201106; 201109
Construction year to200502; 200604; 200609; 200909; 201009; 201305; 201309; 201312; 201408; 202203
Length mm316
