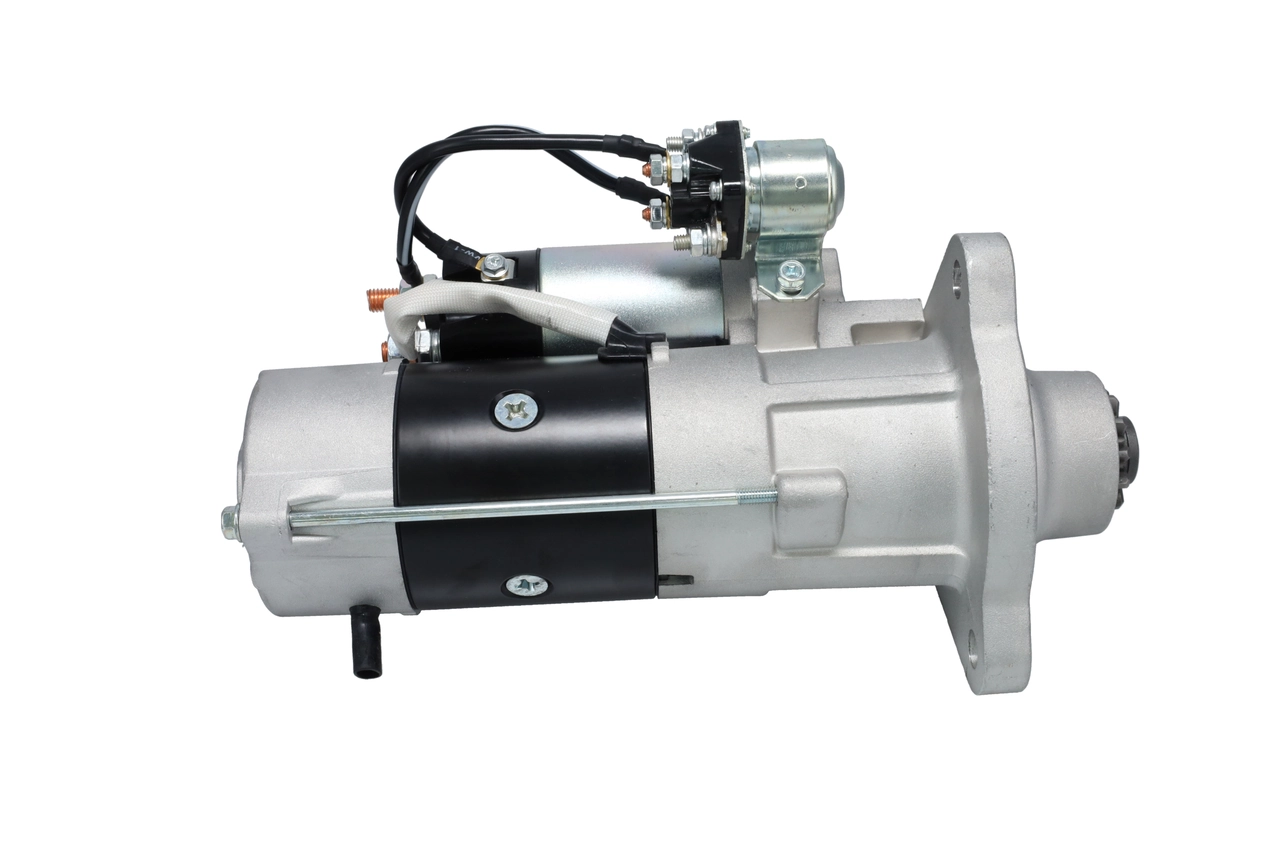

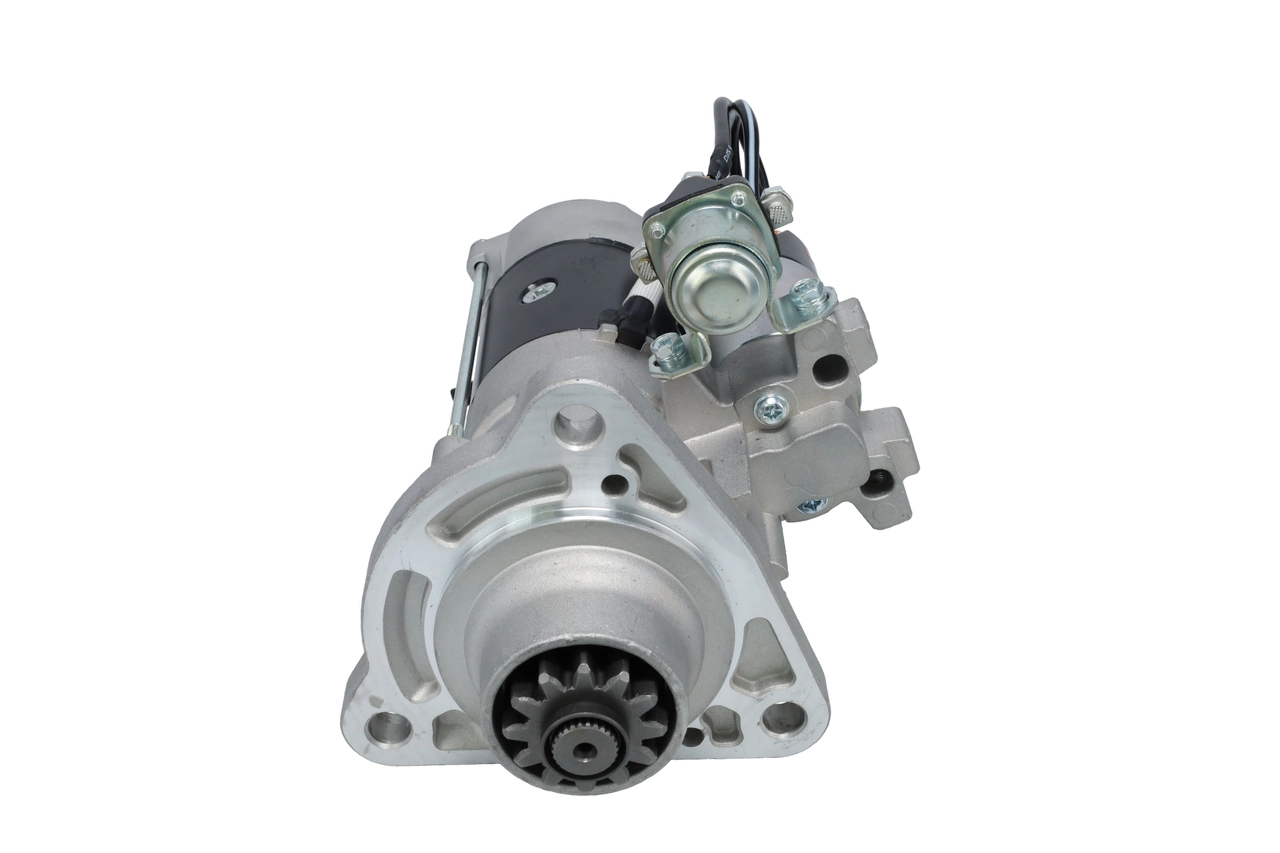

Starter
Code: BOSCH1986S10032
GH₵10,120.11
Not available
Specifications
BrandBosch
Number of mounting bores3
Bore diameter mm14
Flange diameter mm92
Rated power kw5,5
Rotation directionClockwise rotation
Number of threaded holes0
Clamp30
Position degreerechts
Pinion rest position mm48
Bore diameter 2 mm14
Bore 3 mm14
Mounting angle degrees53
Mounting bore angle measurement degree53
Starter typeFloating pinion
Voltage v24
Tecdoc engine number16511; 18826; 18827; 18828; 18829; 18830; 20770; 20776; 20777; 20778; 20779; 21323; 21329; 22150; 22151; 22152; 22153; 22155; 22156; 22157; 22378; 28157; 28158; 28159; 28160; 28558; 45665; 45667; 45669
For oe number22602940
Number of teeth12
Engine codeD13C420; D13K460; D13K500; D13K540; DH12D420; DH12E340
Construction year from200106; 200208; 200601; 200609; 200612; 200709; 200803; 200901; 200904; 200905; 200909; 200910; 201003; 201201; 201209; 201301; 201304; 201401
Construction year to200604; 200903; 200909; 201112; 201412; 202112; 202209
Length mm312
