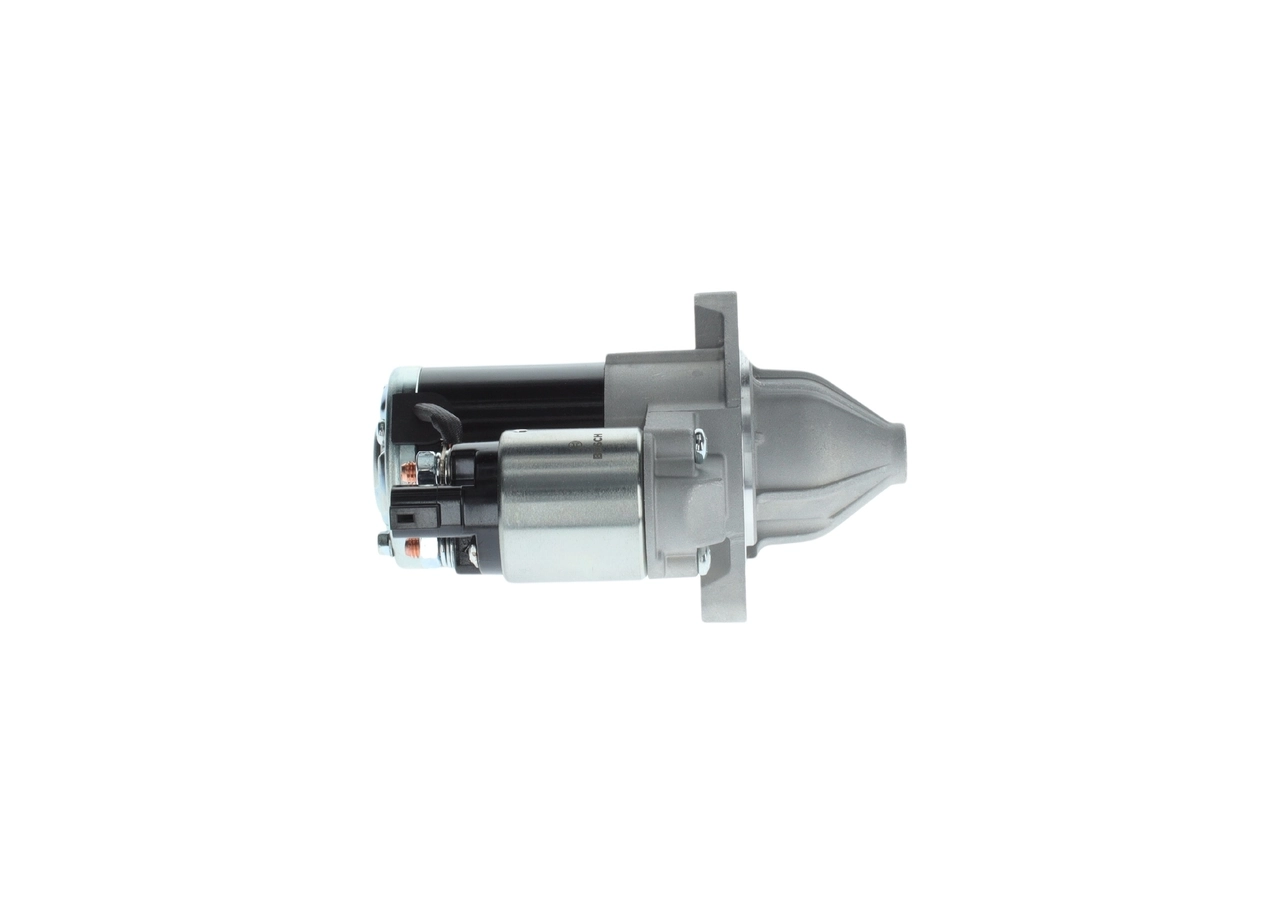

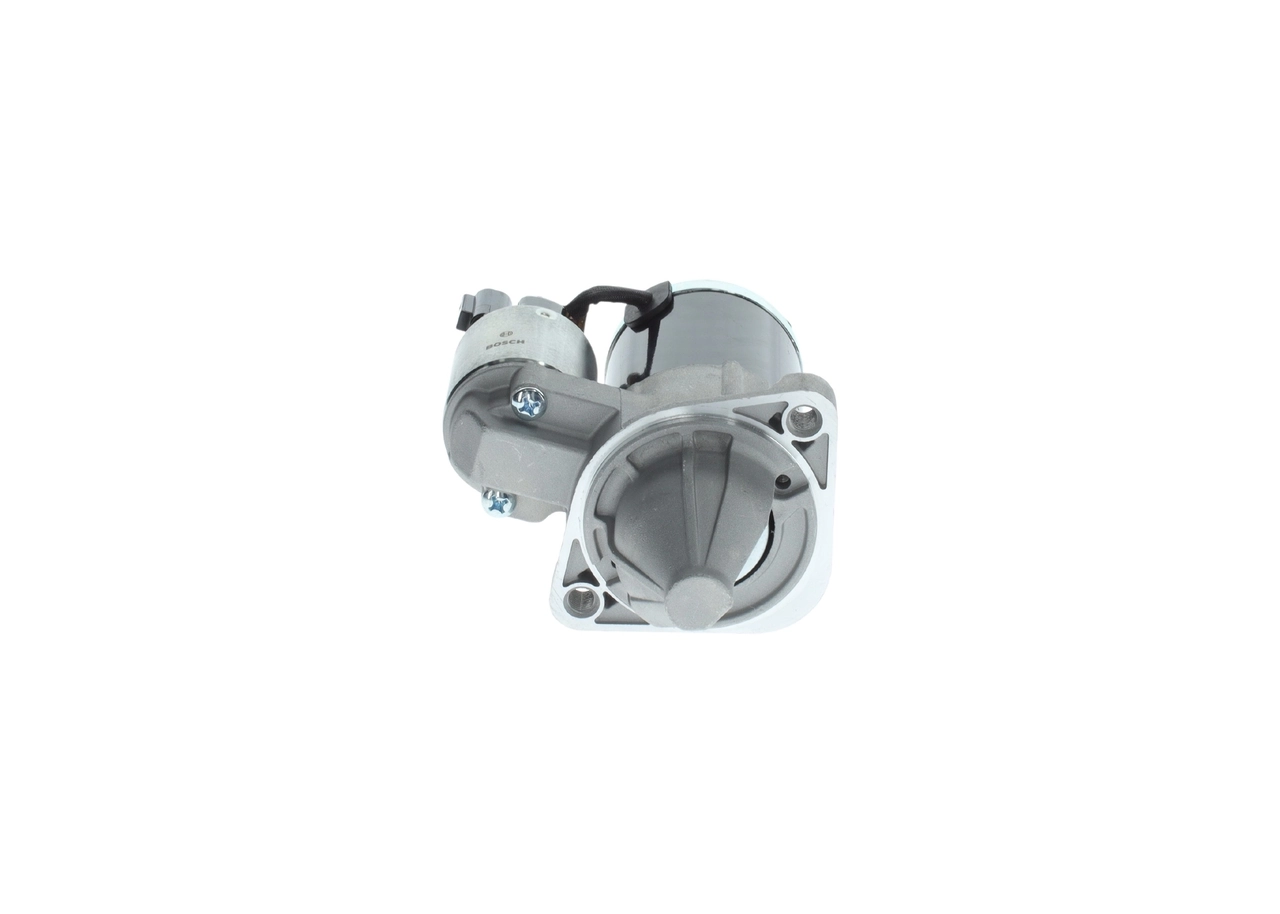

Starter
Code: BOSCH1986S01106
GH₵3,542.95
Not available
Specifications
BrandBosch
Thread size 1M10X1,25
Vehicle equipmentfor vehicles without start-stop function
Number of mounting bores0
Flange diameter mm77
Rated power kw1,2
Rotation directionClockwise rotation
Number of threaded holes2
Clamp30
Position degreelinks
Pinion rest position mm21,5
Jaw opening angle measurement degree122
Mounting angle degrees53
Mounting bore angle measurement degree53
Starter typeSelf-supporting
Voltage v12
Tecdoc engine number19226; 19227; 24881; 24882; 26604; 27227; 29359; 29361
For oe number36100 2B100; 36100 2B102; 36100 2B510; 36100 2B600; 36100 2B602
Number of teeth10
Transmission typeAutomatic Transmission; Dual-Clutch Transmission; Manual Transmission
Engine codeCVVT; F4FG<Flex>; G4FA-L; G4FG<(D2) 16GM>; Gamma 1.6 GDI
Construction year from200802; 200803; 200807; 200811; 200901; 200908; 200909; 201007; 201008; 201101; 201106; 201111; 201201; 201204; 201207; 201211; 201310
Construction year to200801; 200810; 200908; 201012; 201106; 201107; 201203; 201205; 201206; 201207; 201209; 201210; 201212; 201304; 201308; 201309; 201310; 201409; 201410; 201412; 201511; 201708; 201806; 201912
Length mm187
Thread sizeM10X1,25
