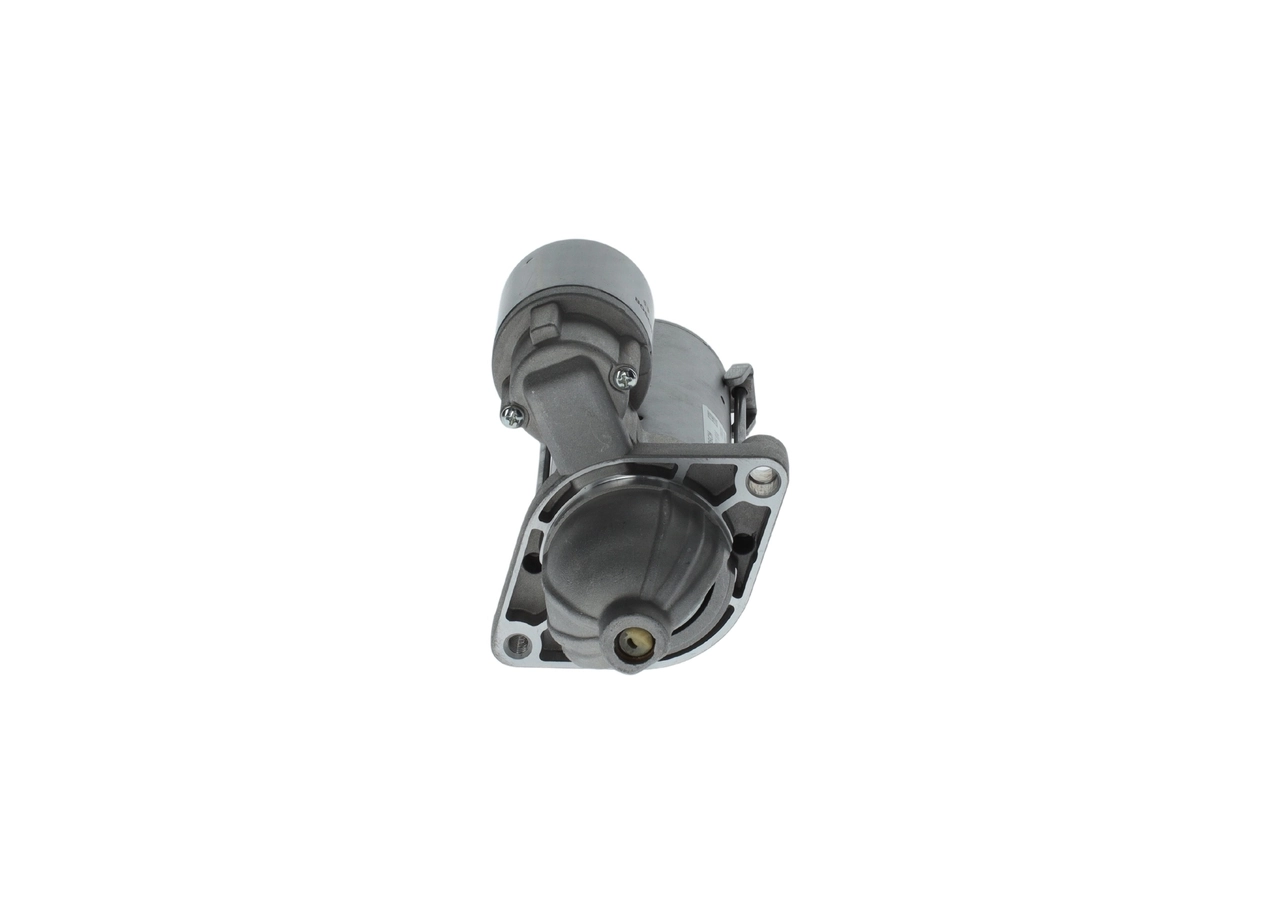

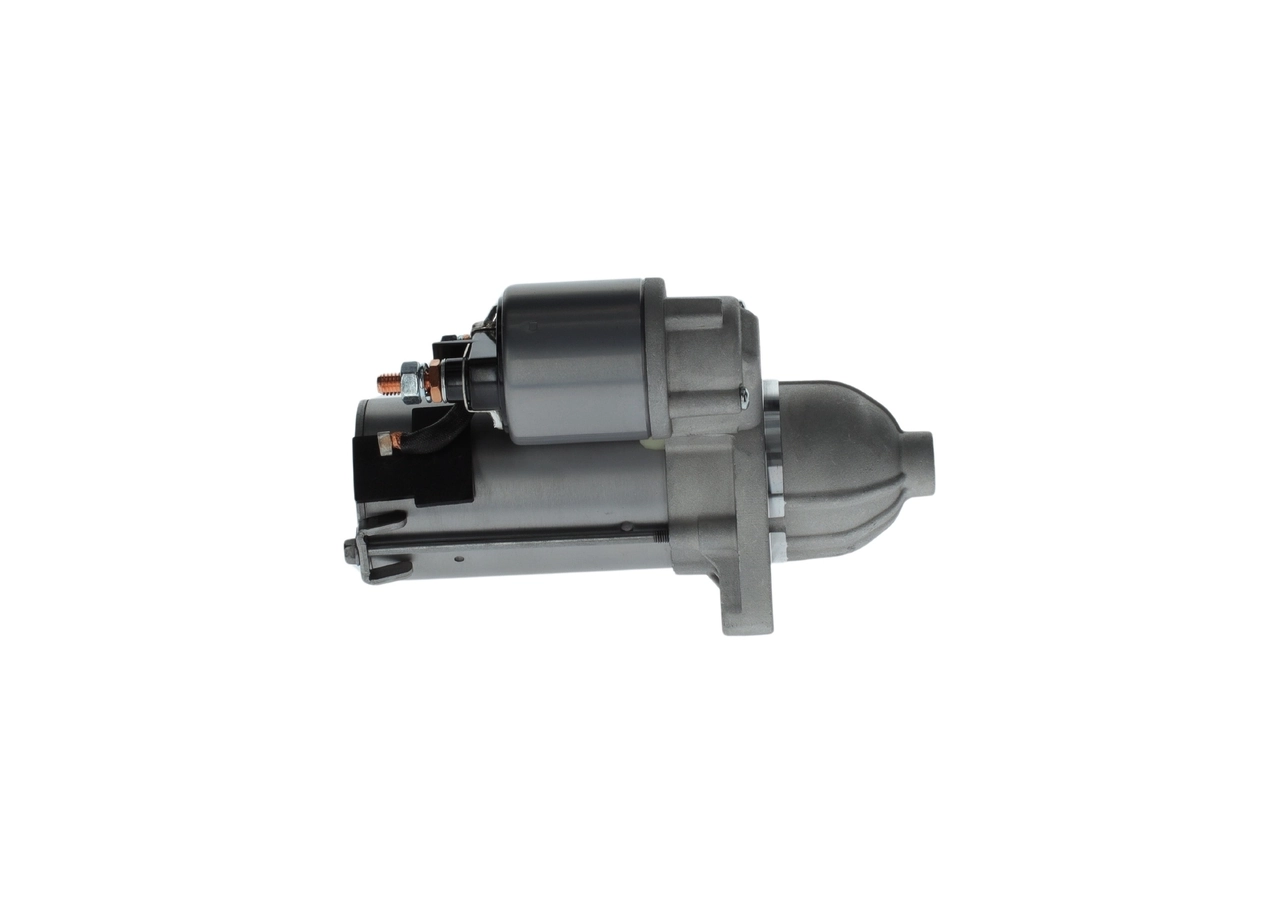

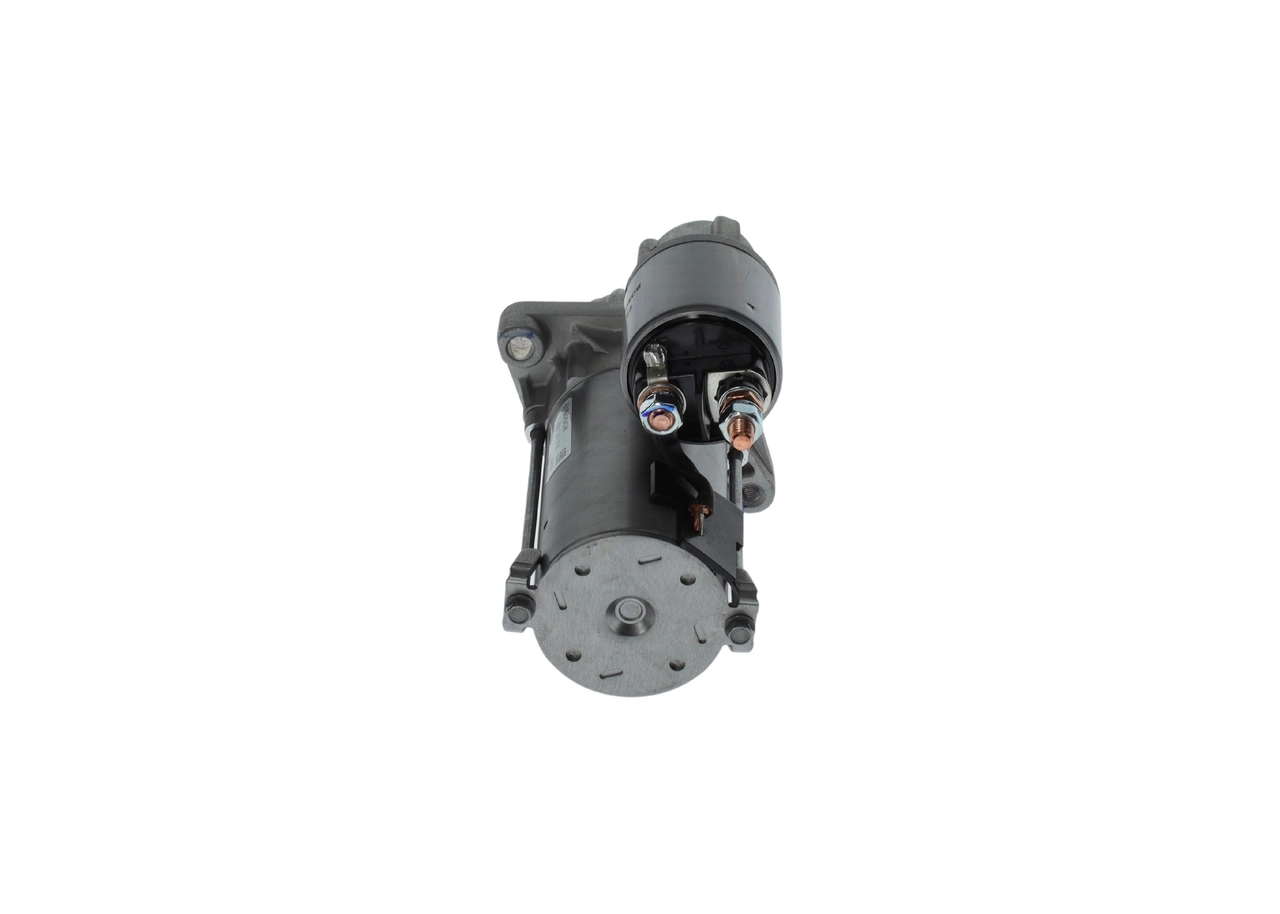

Starter

Code: BOSCH1986S01014
GH₵2,840.77
Not available

Specifications

BrandBosch
Length mm201
Thread sizeM8x1,25
Vehicle equipmentfor vehicles without start-stop function
Emission standardEuro 4 (D4)
Number of mounting bores1
Bore diameter mm9
Flange diameter mm64
Rated power kw1,5
Rotation directionClockwise rotation
Number of threaded holes1
Clamp30,50
Position degreerechts
Pinion rest position mm23,2
Jaw opening angle measurement degree74
Mounting angle degrees74
Mounting bore angle measurement degree74
Starter typeSelf-supporting
Voltage v12
Tecdoc engine number17456; 20236; 20240; 23573; 23574; 23866; 31788; 31853; 31856; 36119; 48873
Number of teeth9
Construction year from200401; 200509; 200605; 200610; 200703; 200712; 200809; 200901; 200910; 202201
Construction year to200509; 200609; 200912; 201006; 201011; 201012; 201111; 201112; 201212; 201604; 201612

Compatible Vehicles:

Starter OE Numbers
