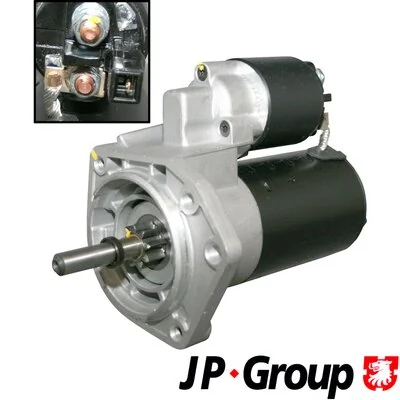

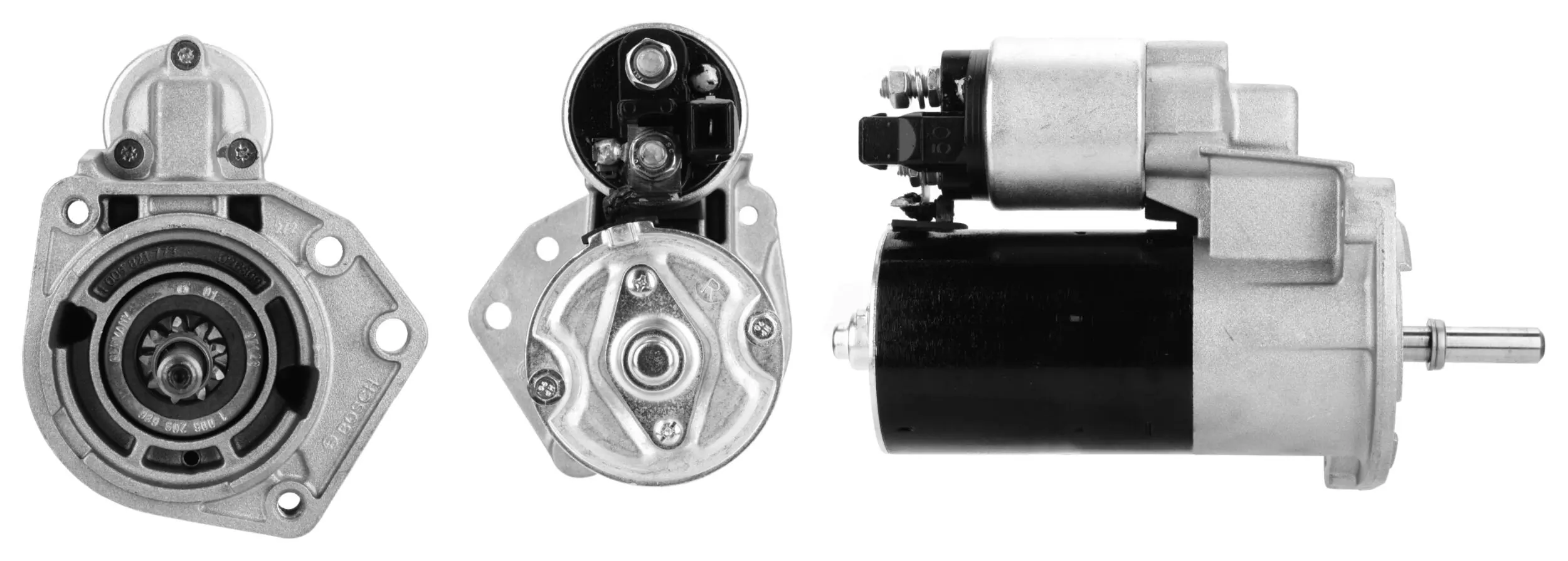

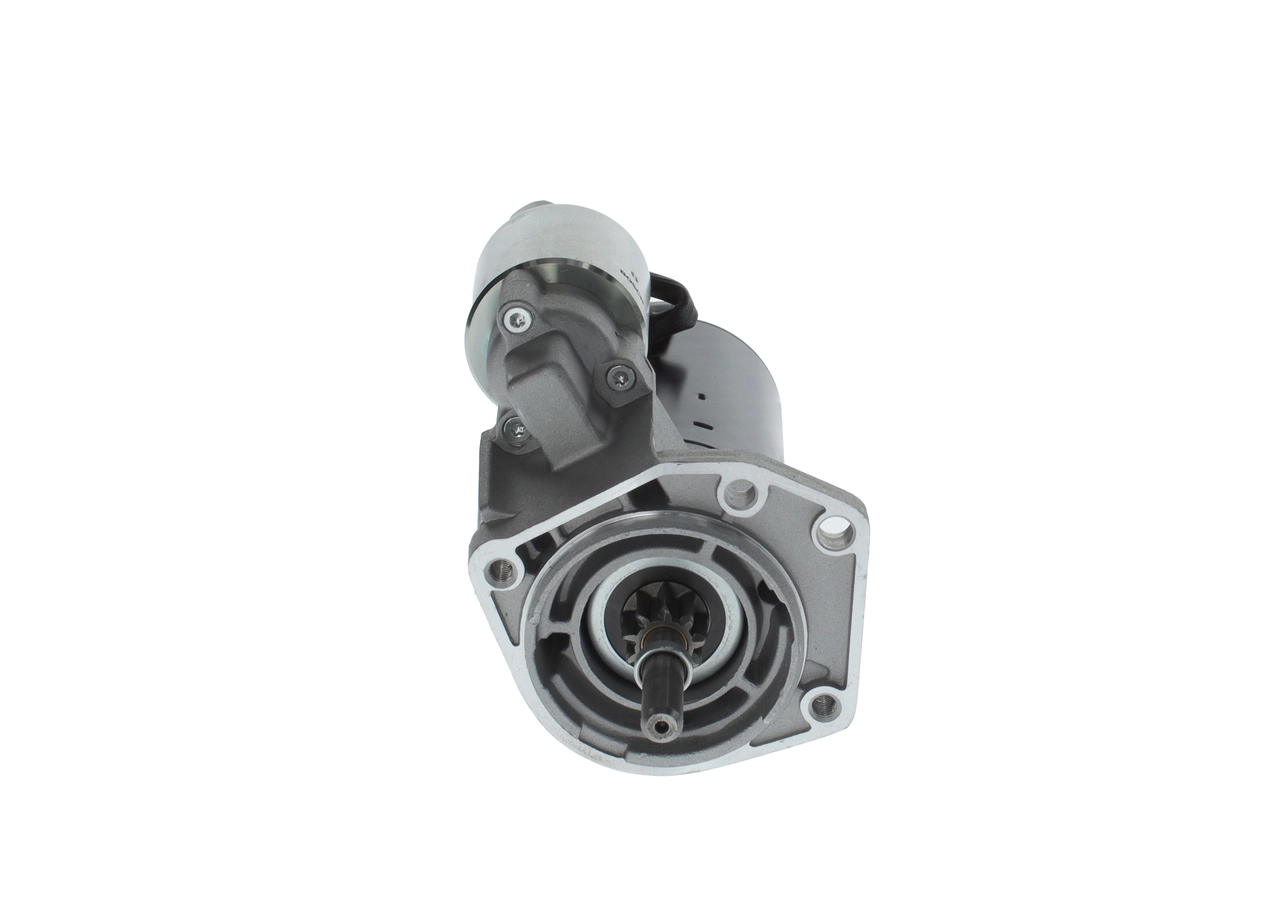

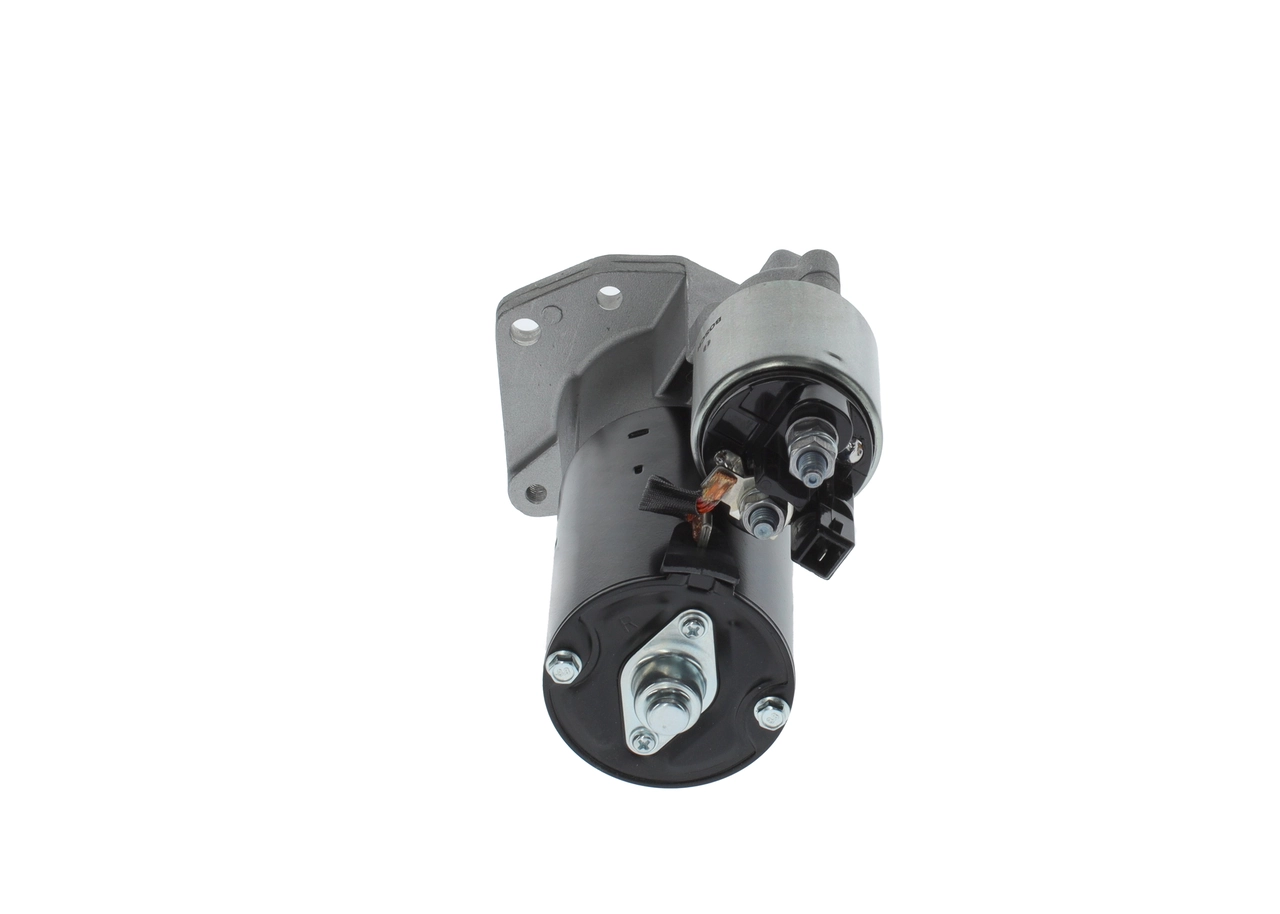

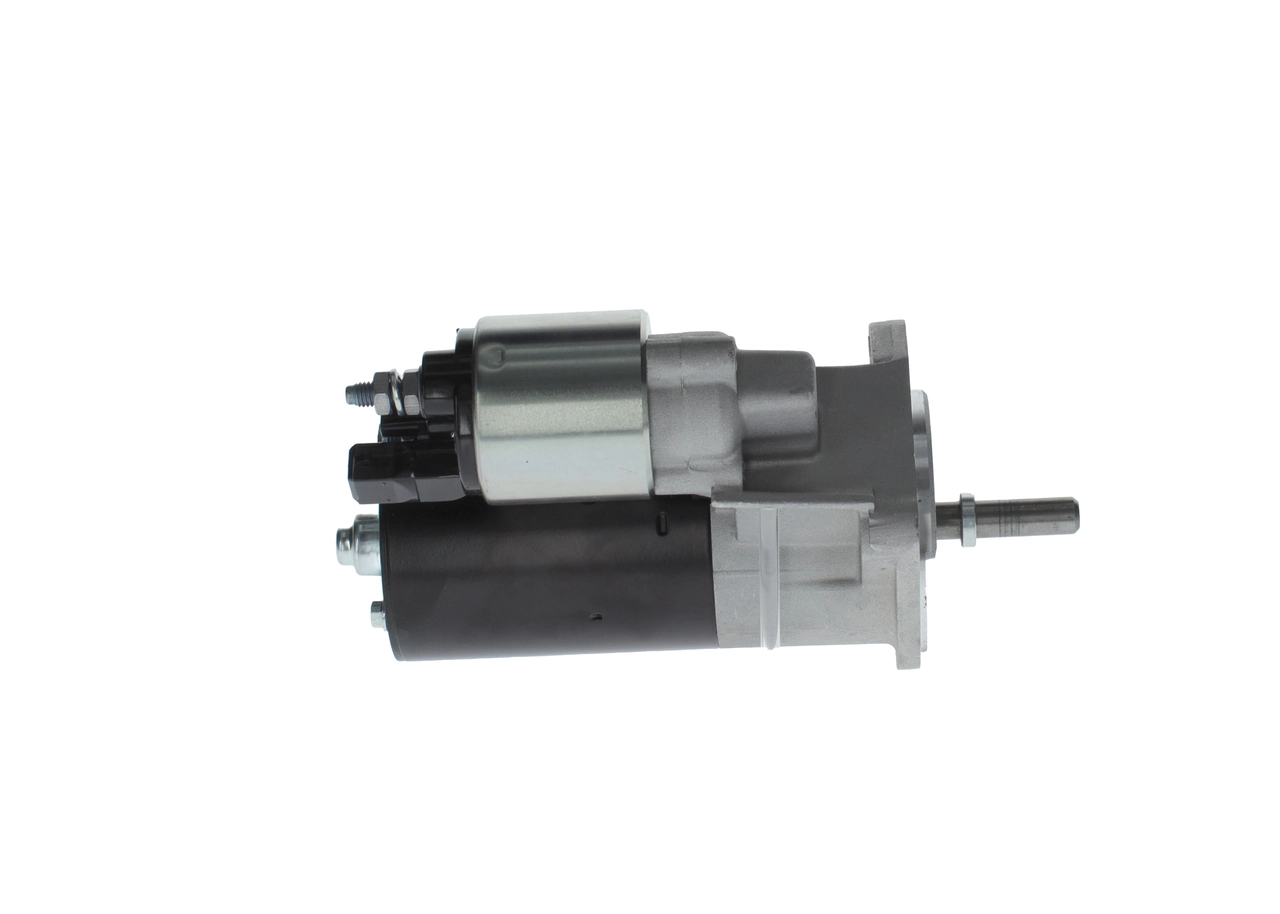

Starter

Code: BOSCH1986S00966
GH₵3,242.19
Not available

Specifications

BrandBosch
Length mm232
Thread sizeM8x1,25
Thread size 1M8x1,25
Manufacturer restrictionBosch; MARELLI
Number of mounting bores2
Bore diameter mm8,5
Flange diameter mm82,5
Rated power kw1,1
Rotation directionClockwise rotation
Number of threaded holes2
Clamp30,50
Position degreerechts
Pinion rest position mm2
Bore diameter 2 mm10
Mounting angle degrees55
Mounting bore angle measurement degree55
Starter typeFloating pinion
Voltage v12
Tecdoc engine number10867; 12028; 12513; 12515; 12948; 12949; 13274; 13468; 13469; 13768; 13770; 13771; 13772; 13892; 14168; 14169; 15493; 15528; 15568; 15614; 16139; 16140; 16335; 16543; 3574; 4019; 4897; 4973; 4976; 4981; 4984; 5532; 5534; 9453; 9454; 9688
Engine codeABU; AEE<M0U/T3N>; ANX
Number of teeth9
Construction year from199209; 199210; 199307; 199309; 199504; 199507; 199512; 199601; 199605; 199703; 199704; 199705; 199706; 199709; 199801; 199810; 199909; 199910; 199911; 200005; 200111
Construction year to199407; 199409; 199507; 199512; 199606; 199712; 199805; 199812; 199906; 199908; 199910; 200002; 200009; 200208; 200306; 200405
Vehicle identification number vin from1H..P..216 149; 1H..PW216 149; 6K..ZR186 001; 6K..ZR756 001
Transmission typeManual Transmission

Compatible Vehicles:

Starter OE Numbers
