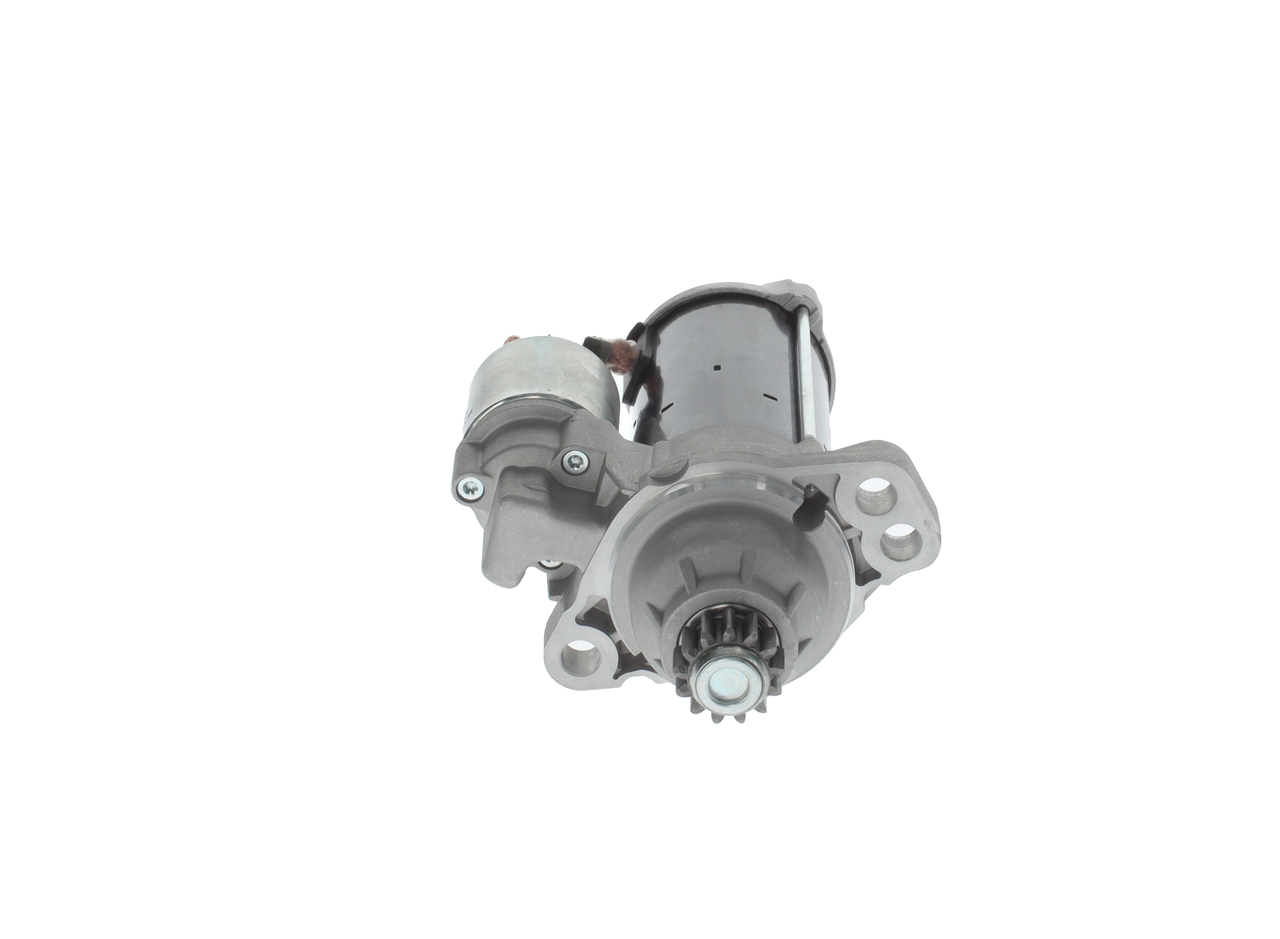

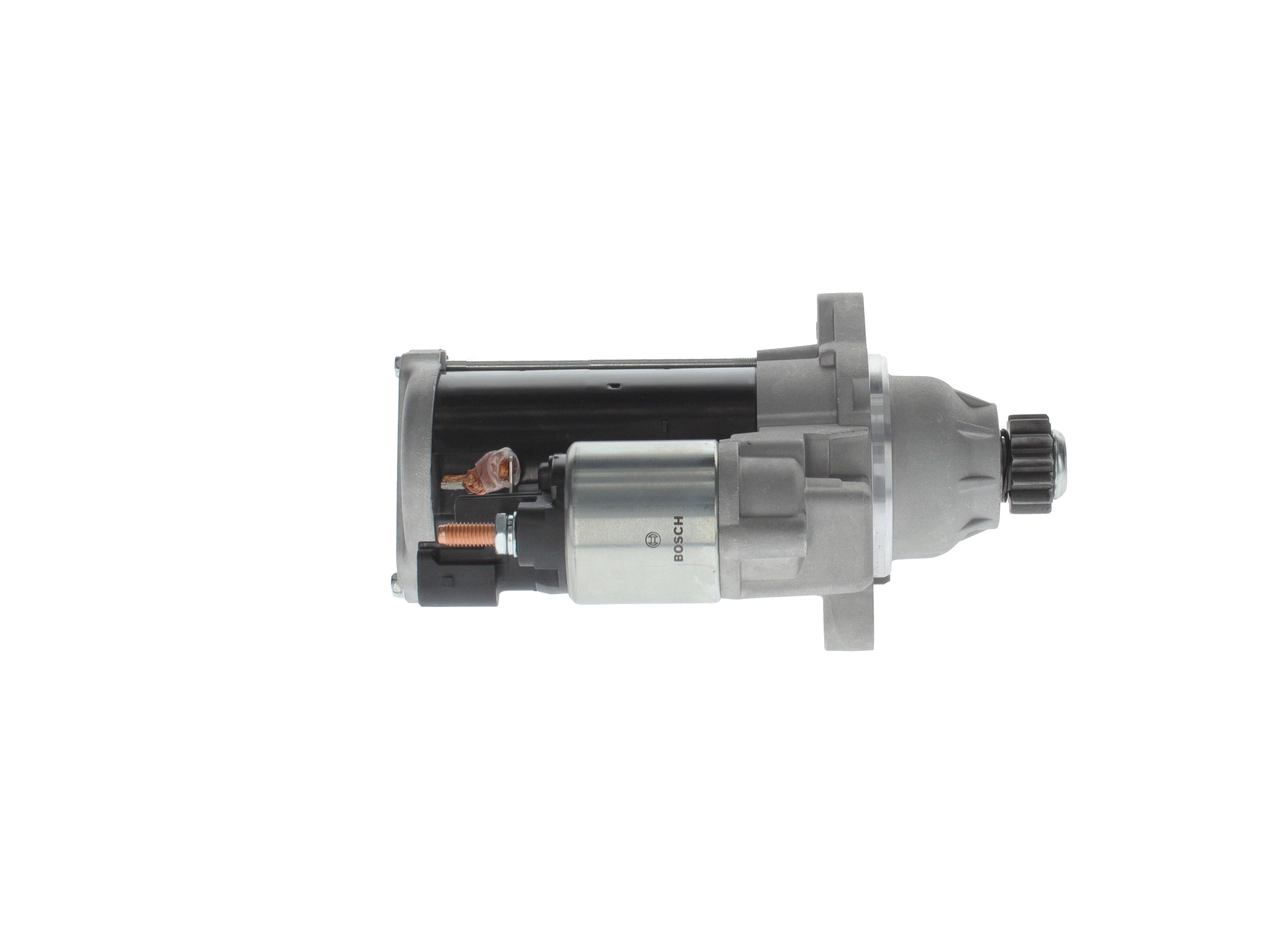

Starter
Code: BOSCH1986S00883
GH₵5,681.65
Not available
Specifications
BrandBosch
Vehicle equipmentfor vehicles with start-stop function
For pr number0Y8
For model code3G5; 5G1; 614; BQ1; BV5; CB5; NS; NV
Manufacturer restrictionBosch; NIPPONDENSO
Number of mounting bores3
Bore diameter mm12,5
Flange diameter mm79
Rated power kw1,5
Rotation directionAnticlockwise rotation
Number of threaded holes0
Clamp30,50
Position degreelinks
Pinion rest position mm31,6
Bore diameter 2 mm12,5
Bore 3 mm12,5
Mounting angle degrees44
Mounting bore angle measurement degree44
Starter typeFloating pinion
Voltage v12
Tecdoc engine number20606; 25749; 26238; 26239; 26573; 26574; 27152; 27190; 27809; 27977; 28307; 28425; 29242; 29246; 29249; 29280; 29286; 29303; 29693; 29804; 30786; 31027; 31357; 31648; 32544; 33138; 33442; 33629; 33635; 33682; 34288; 34425; 34524; 34645; 34767; 34860; 34874; 34875; 34881; 34885; 35338; 35462; 36038; 36061; 36161; 36187; 36585; 36586; 36662; 36676; 36737; 36739; 36880; 36965; 36968; 36992; 37153; 37173; 37262; 37415; 37544; 37904; 37905; 38333; 38450; 38451; 39079; 39193; 39872; 40415; 40998; 41054; 41070; 41246; 41943; 44059; 44265; 44292; 44655; 45620; 46607; 47608; 48410; 48658; 50810; 52184; 52339; 53337
For oe number02M 911 021 G
Number of teeth13
Transmission type5-Speed Manual Transmission; 6-Speed Manual Transmission; Manual Transmission
Engine codeCRKB<DK5/TJ1>; DLAC<DI6/TC5>
Construction year from201208; 201209; 201211; 201212; 201301; 201308; 201311; 201402; 201405; 201407; 201409; 201410; 201411; 201506; 201510; 201601; 201611; 201703; 201707; 201711; 201801; 201805; 201809; 201810; 201811; 201812; 201901; 201902; 201907; 201908; 201909; 201911; 201912; 202006; 202007; 202008; 202009; 202010; 202011; 202108; 202206; 202301; 202401; 202403
Construction year to201304; 201405; 201412; 201505; 201607; 201608; 201610; 201703; 201705; 201807; 201808; 201809; 201810; 201811; 201812; 201907; 201911; 201912; 202003; 202007; 202008; 202009; 202011; 202012; 202107; 202108; 202111; 202201; 202203; 202209; 202306; 202311; 202403; 202406; 202409
Length mm229
