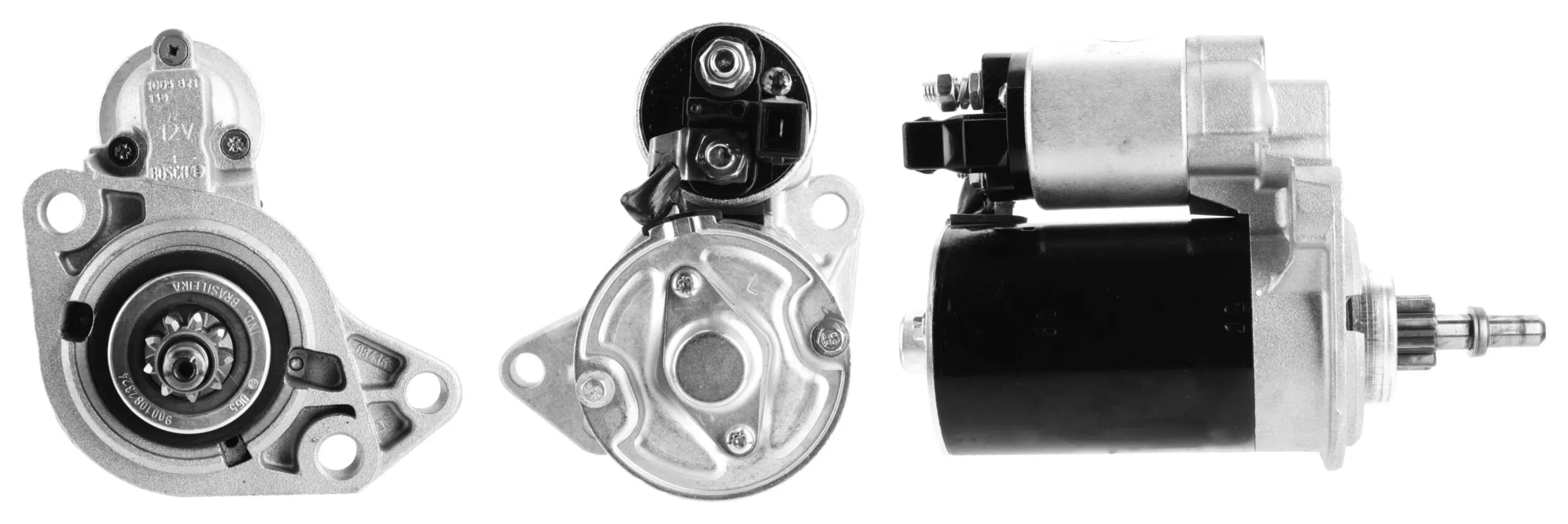

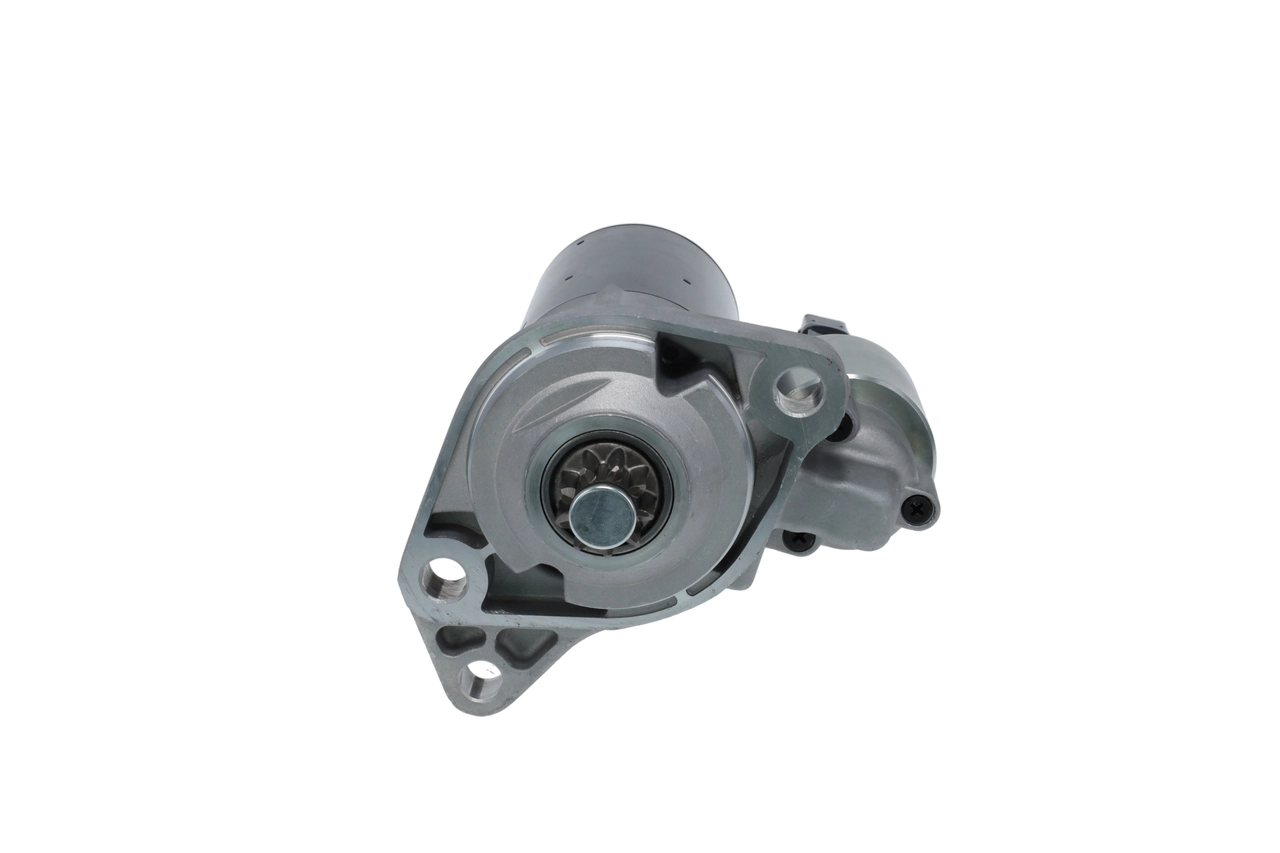

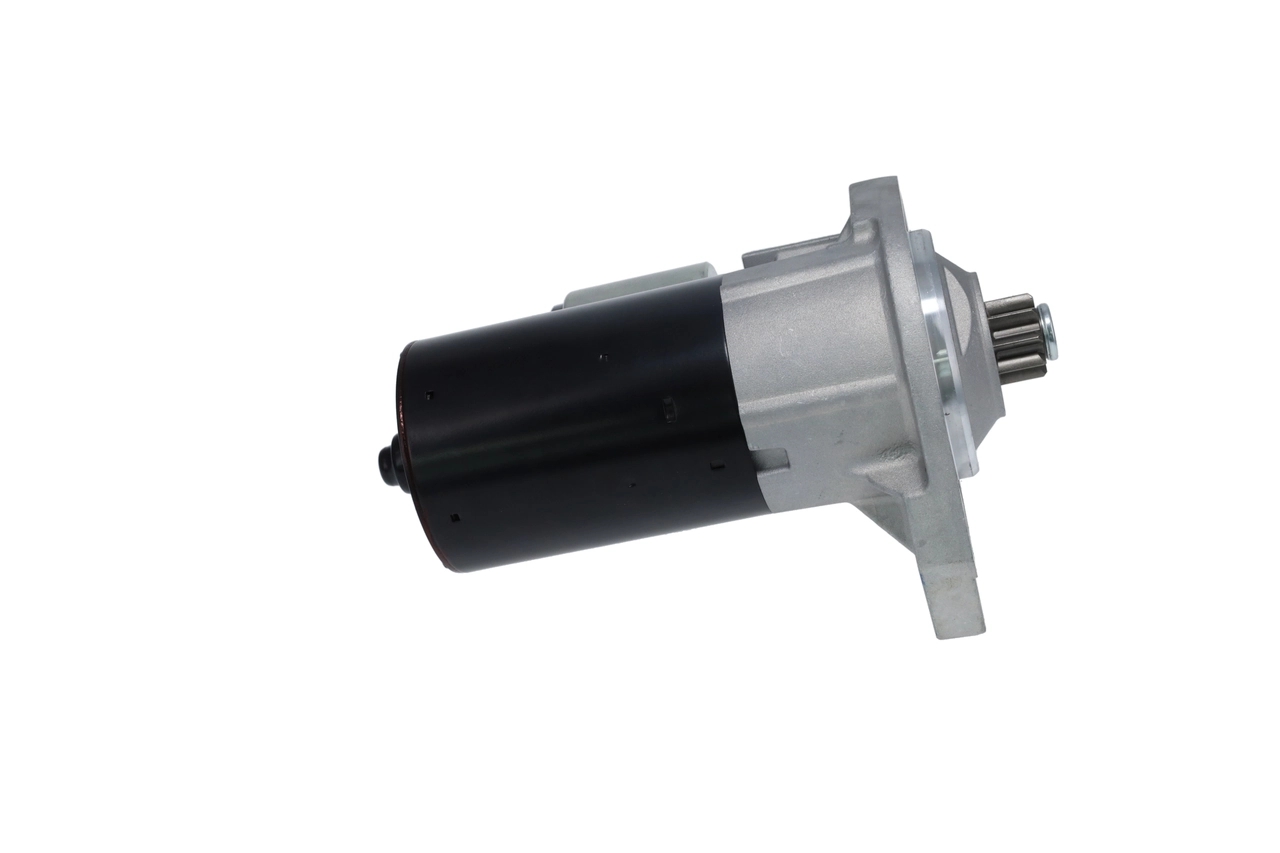

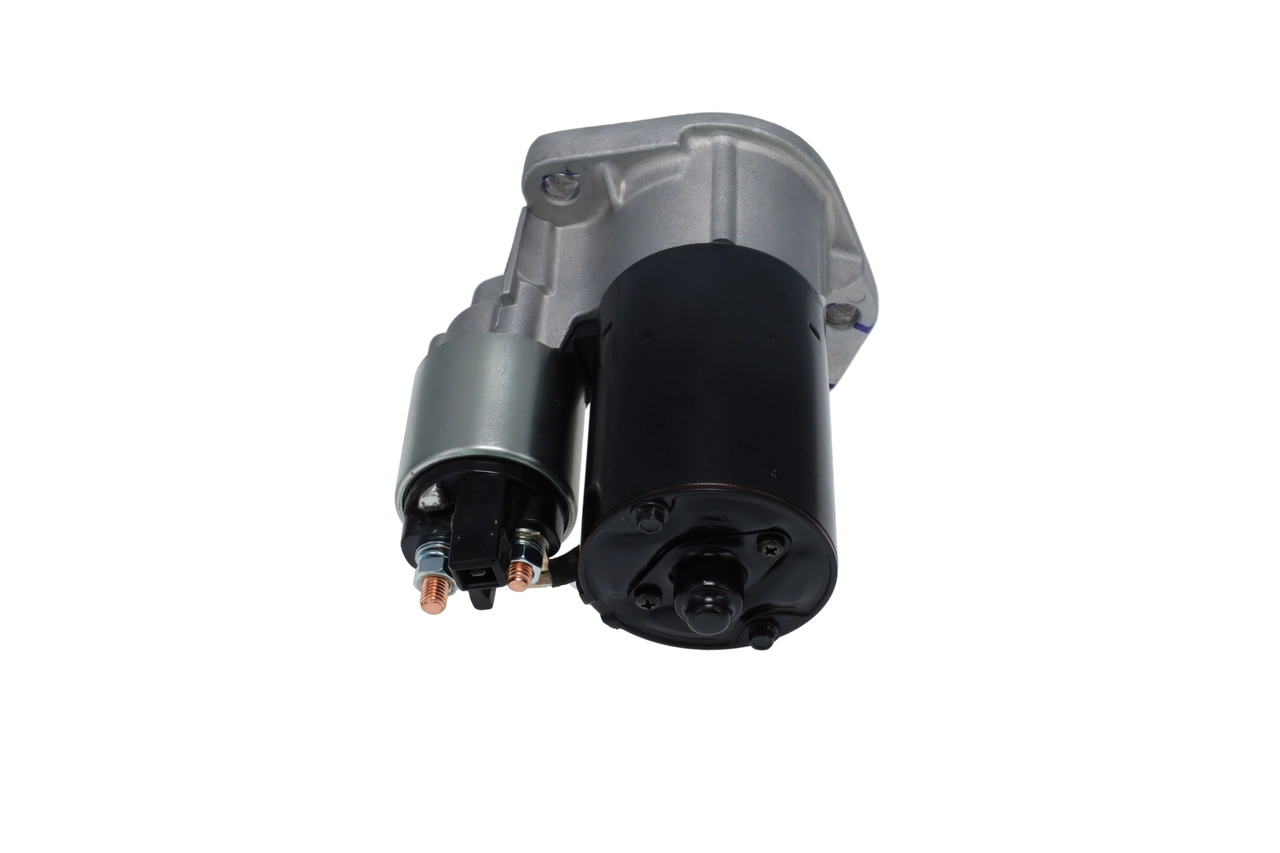

Starter

Code: BOSCH1986S00786
GH₵3,891.67
Not available

Specifications

BrandBosch
Length mm212
For model code1J1; 9B3
Manufacturer restrictionBosch
Number of mounting bores3
Bore diameter mm12,5
Flange diameter mm76,2
Rated power kw1,1
Rotation directionAnticlockwise rotation
Number of threaded holes0
Climate zonesnot for cold climate zones
Clamp30,50
Position degreelinks
Pinion rest position mm32,5
Bore diameter 2 mm12
Bore 3 mm12,5
Starter typeFloating pinion
Voltage v12
Tecdoc engine number10607; 10848; 10887; 11347; 11354; 11588; 11591; 11592; 11593; 11927; 12488; 12509; 12848; 13268; 13269; 13270; 13396; 13442; 13468; 13869; 14908; 14913; 15352; 15353; 15466; 15467; 15469; 15470; 15474; 15479; 15485; 15486; 15488; 15489; 15490; 15496; 15529; 15611; 15614; 15629; 15889; 16031; 16050; 16070; 16089; 16134; 16135; 16200; 16280; 16385; 16386; 16419; 16434; 16744; 17466; 17495; 17897; 17899; 18049; 18752; 19253; 19254; 19258; 20628; 21073; 21074; 3576; 4011; 4019; 4063; 4069; 4100; 4102; 4109; 4111; 4124; 4143; 4151; 4890; 4963; 4975; 4979; 4980; 4981; 4984; 4988; 4989; 5007; 5027; 5074; 5075; 5109; 5536; 9367; 9384; 9386; 9450; 9451; 9453; 9454; 9456; 9990
Engine code1F; AEA; AEG<ML8>; AGU<MQ4/T8C>; APK<MU0/T6Y>; AQY<ML1/T6Y>; AUM<MG8/T8C>; AZH<MK6/T11>; RG; UVA<505 AP>
Number of teeth9
Construction year from198401; 198608; 198702; 198708; 198710; 198804; 199003; 199009; 199111; 199208; 199309; 199405; 199407; 199410; 199507; 199704; 199708; 199710; 199711; 199801; 199803; 199805; 199807; 199808; 199905; 199906; 199910; 199912; 200003; 200004; 200005; 200006; 200008; 200009; 200101; 200105; 200111; 200201; 200211; 200301; 200704
Construction year to198508; 198707; 198710; 198807; 198808; 199007; 199207; 199211; 199311; 199403; 199409; 199506; 199507; 199606; 199612; 199703; 199704; 199705; 199712; 199803; 199804; 199902; 199904; 199908; 200002; 200003; 200005; 200009; 200010; 200012; 200104; 200105; 200106; 200111; 200201; 200204; 200205; 200206; 200305; 200312; 200404; 200405; 200406; 200407; 200409; 200505; 200506; 200601; 200705; 200706; 200805; 201411
Vehicle identification number vin to1J..2..100 000
Vehicle identification number vin from1U..2..588 377; 1U..28553 379
Transmission type4-Speed Automatic Transmission; 5-Speed Manual Transmission; Automatic Transmission; Manual Transmission

Compatible Vehicles:

Starter OE Numbers
