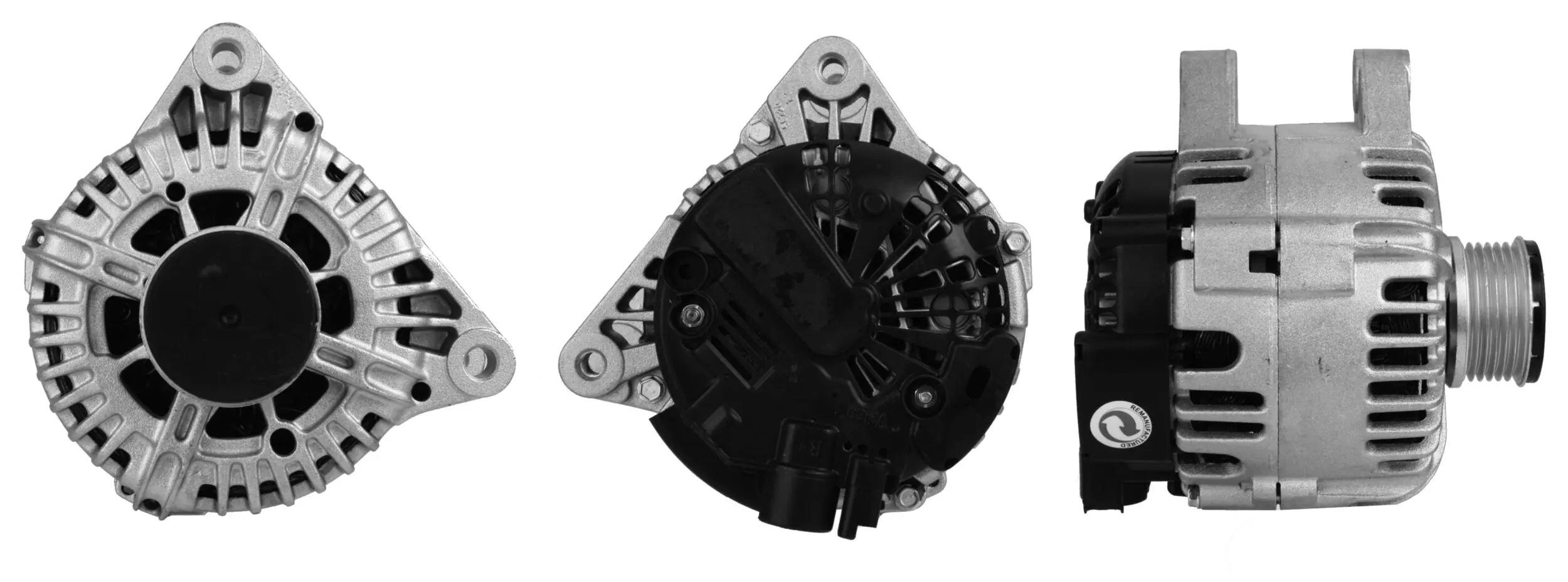

Alternator

Code: BOSCH1986A01368

GH₵6,886.26

Not available

Specifications

BrandBosch

Number of grooves6

Vehicle equipmentfor vehicles with air conditioning; for vehicles with hydraulic power steering; for vehicles without air conditioning

For model codeM59; Z9

Manufacturer restrictionBosch; VALEO

Rotation directionClockwise rotation

Belt pulley mm54,3

Alternator typeexcl. vacuum pump

Pulleyswith freewheel belt pulley

Recommended additional repairsV-Belt/V-Ribbed Belt

ClampB+(M8)

Plug type id72

Distance from belt pulley to alternator mm42,6

Voltage v14

Tecdoc engine number13788; 15310; 16368; 16735; 17507; 17509; 17510; 19824; 19912; 20147; 20417; 20782; 20789; 20790; 22240; 23537; 23773; 24686; 25064; 25656; 26795; 29161; 32530; 35775; 35776; 36833; 45594

For oe number5705 AR; 5705 NH

For rpo number from09681; 10427; 10437; 10528; 10536; 10556; 10571; 9520; 9521; 9552

For rpo number up to12256; 12445; 14573; 9519

Transmission typeManual Transmission

Alternator charging current a150

Ricambi number from9520; 9521

Engine code8HW<DV4TD>; 9HT<DV6BUTED4>; 9HU<DV6UTED4>; 9HV<DV6TED4>; 9HW<DV6BTED4>; 9HW<DV6BUTED4>; 9HX; DW10TDED; RHM<M7>; RHW<DW10ATED4>; RHW<M5>

Construction year from200109; 200205; 200209; 200211; 200301; 200302; 200307; 200402; 200405; 200406; 200410; 200412; 200506; 200507; 200509; 200510; 200511; 200605; 200702; 200706; 200709; 200801; 200804; 200805; 200810; 200903; 201203

Construction year to200212; 200310; 200406; 200505; 200509; 200510; 200601; 200603; 200605; 200607; 200612; 200703; 200706; 200708; 200709; 200804; 200812; 200901; 200902; 200903; 200905; 200906; 200907; 200908; 201001; 201004; 201005; 201007; 201009; 201012; 201101; 201102; 201103; 201104; 201106; 201110; 201111; 201112; 201201; 201202; 201305; 201412; 201504; 201512; 201608; 201609; 201612

Length mm184

Fastening typeDouble Pivot Lever
