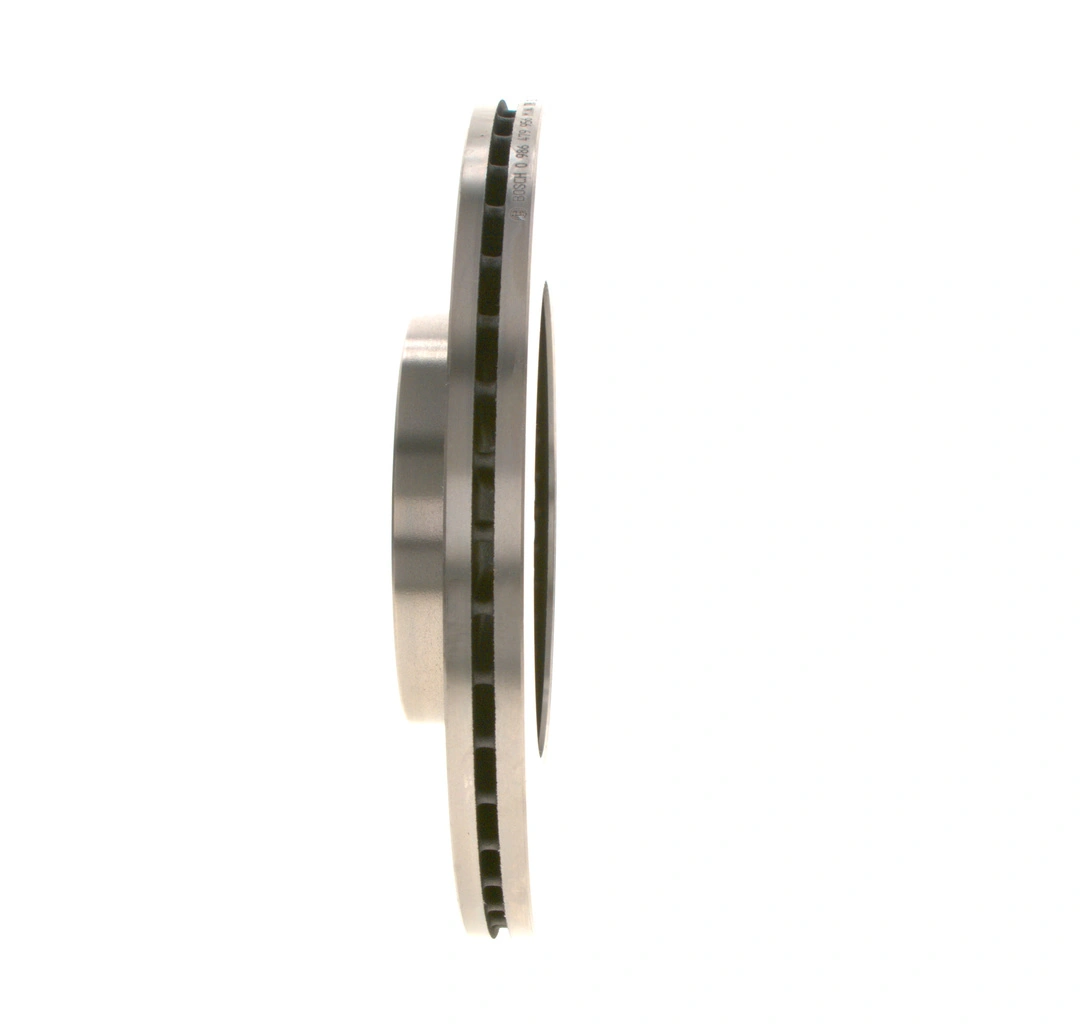

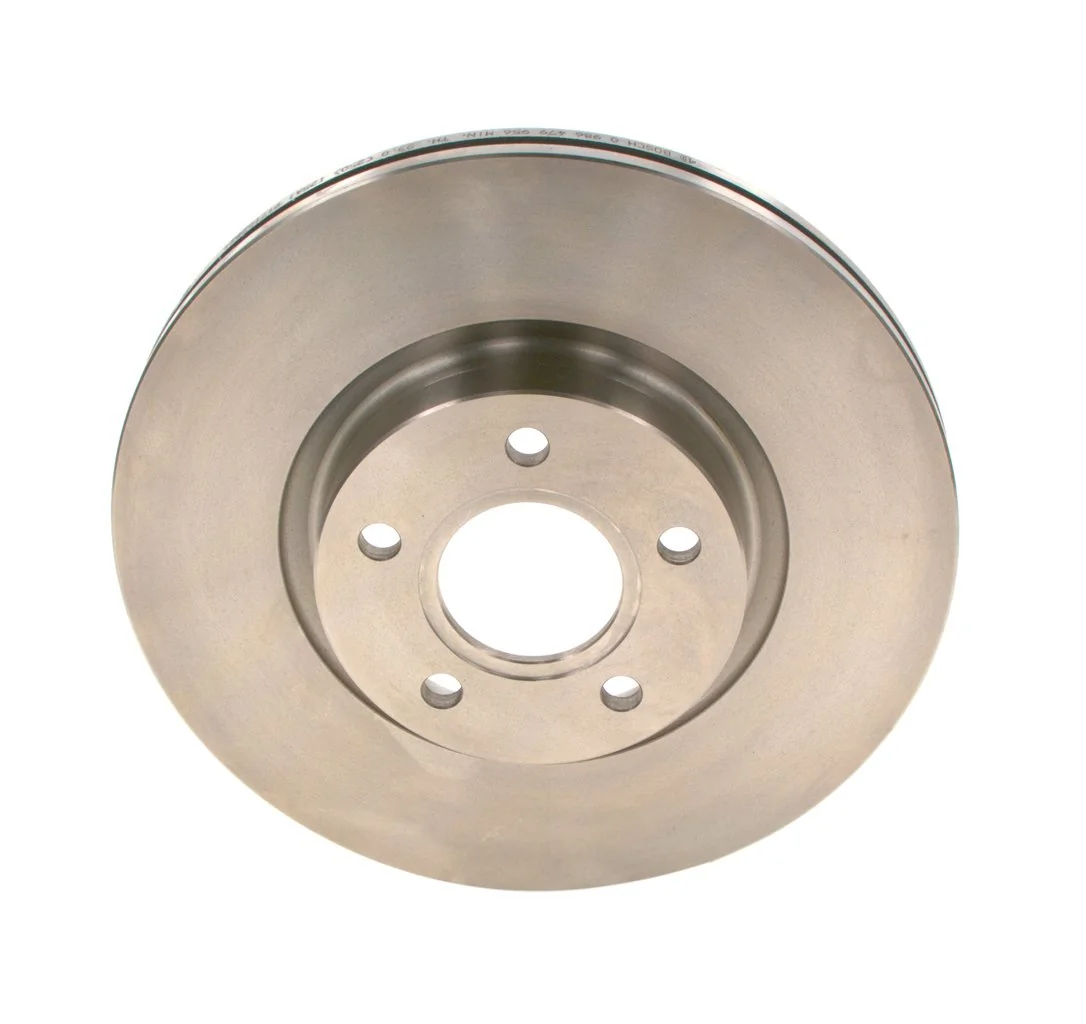

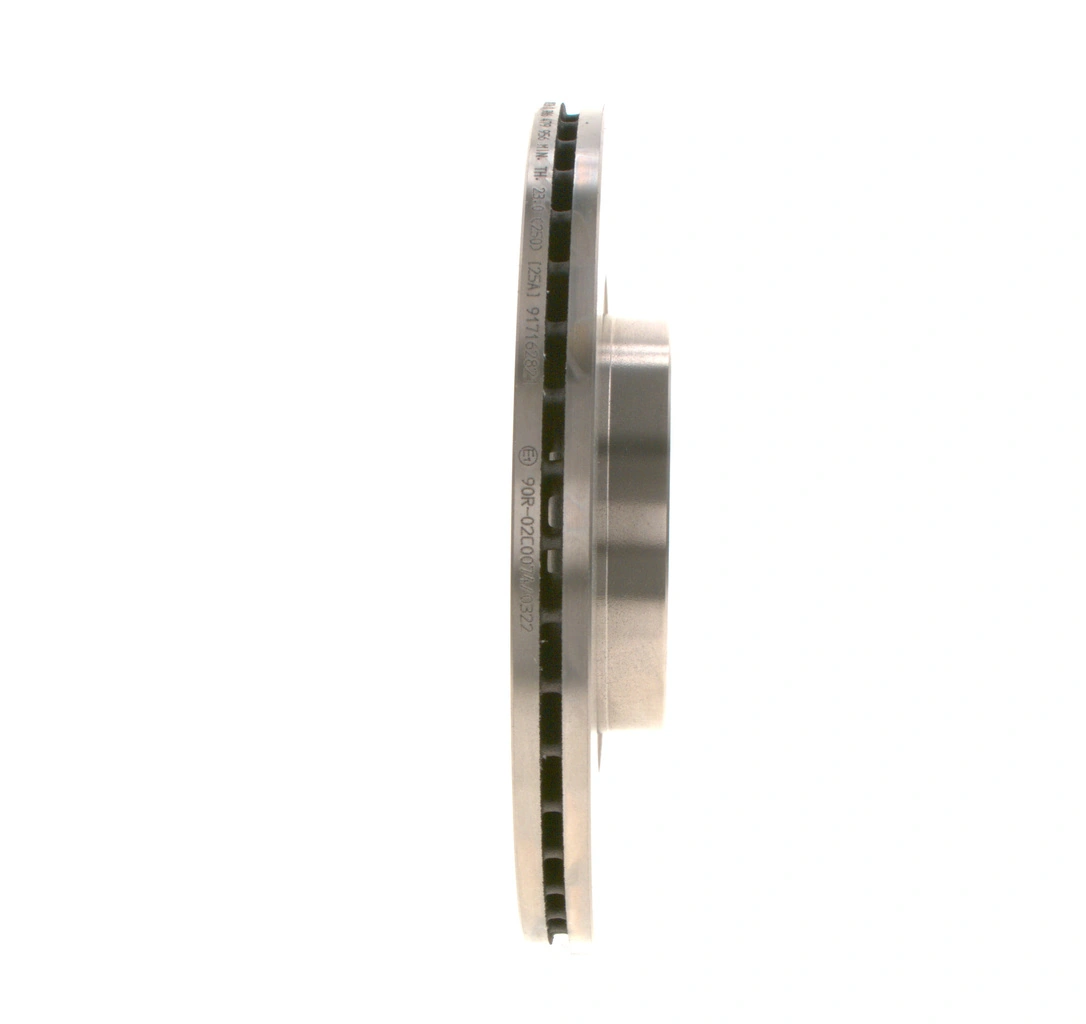

Brake Disc

Code: BOSCH0986479956
GH₵850.26
Not available

Specifications

BrandBosch
Fitting positionFront Axle

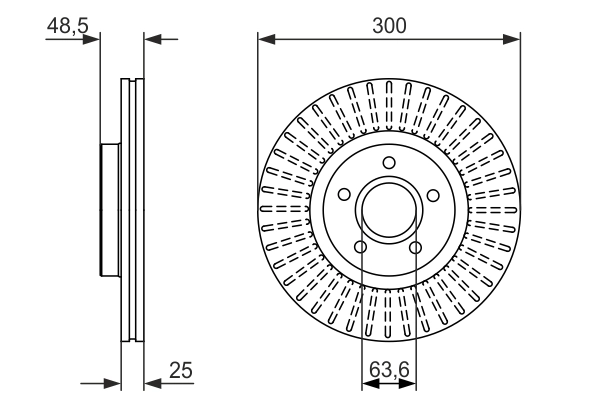

Height mm48,5
Bolt hole circle mm108
Brake disc thickness mm25
Brake disc typeinternally vented
Centering diameter mm63,6
Fulfils ece normECE-R90
Minimum thickness mm23
Number of holes5
Outer diameter mm300
SurfaceOiled
For model codeDA, HC; DA3; DB3; FC; FF
Bore diameter up to mm13,8
Tecdoc engine number18478; 18479; 18480; 18506; 18507; 18508; 18509; 18510; 18511; 18790; 18792; 18793; 20850; 23368; 24347; 25205; 25875; 25876; 25877; 25878; 26478; 26479; 28261; 30554; 30562; 31018; 31109; 31331; 31503; 31504; 31505; 31507; 31508; 33174; 33177; 33179; 33180; 33182; 33185; 41399; 44620; 44621
Engine codeAODA<Euro4>; AODB<Euro4>; B3DA<Euro 6>; B7DA<Euro 6>; G6DA<Euro4>; G6DB<Euro4>; G6DD<Euro4>; G6DE<Euro4>; G6DF<Euro4>; G6DG<Euro4>; G8DA<Euro3>; G8DB<Euro3>; KKDB<Euro4>; MUDD<Euro 6>; TPMB<Euro 5>; XTDB<Euro 6>
Construction year from200404; 200504; 200604; 200703; 200708; 200712; 201004; 201005; 201008; 201101; 201108; 201202; 201203; 201206; 201401; 201410; 201504; 201506; 201603; 201609; 201709
Construction year to200707; 200801; 201007; 201008; 201009; 201107; 201112; 201207; 201208; 201212; 201412; 201503; 201607; 201612; 201712; 201805; 201812

Compatible Vehicles:

Brake Disc OE Numbers
