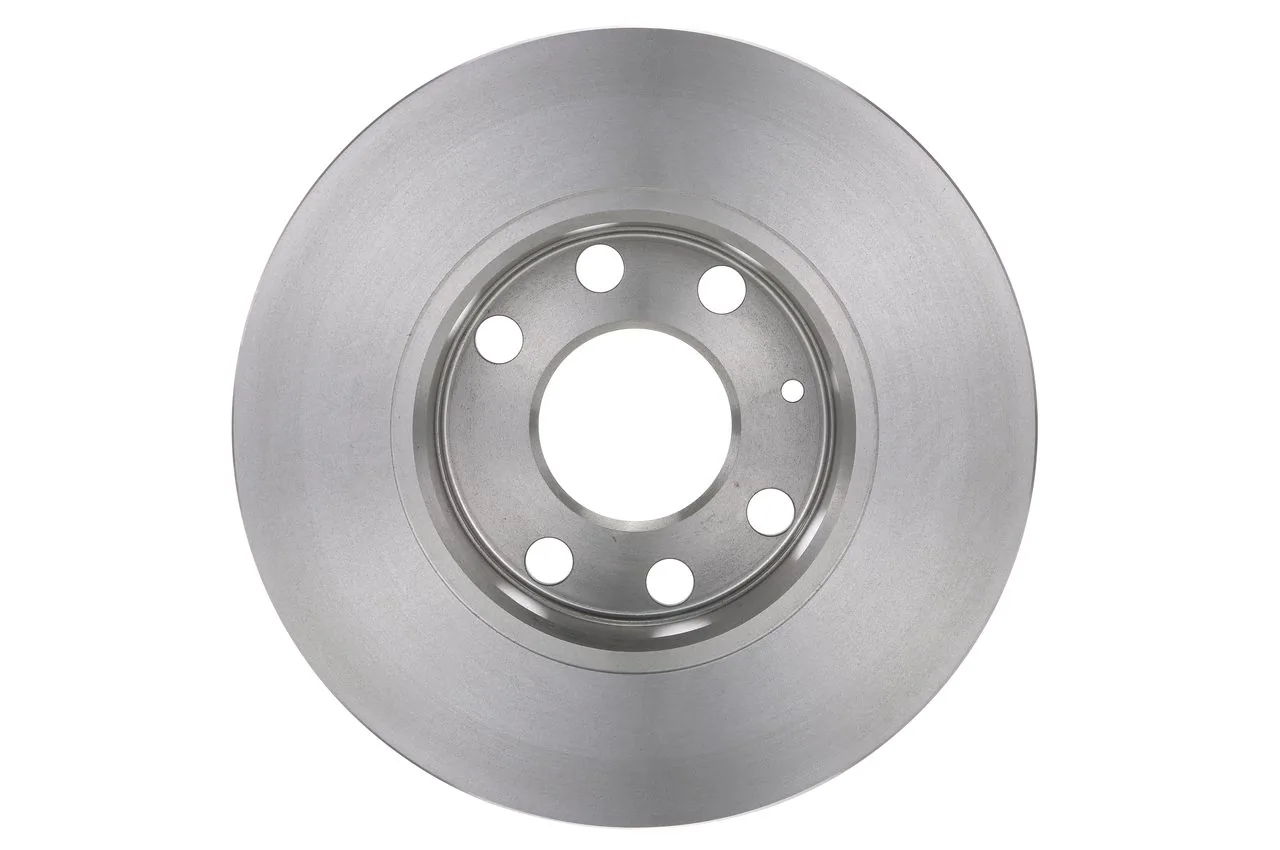

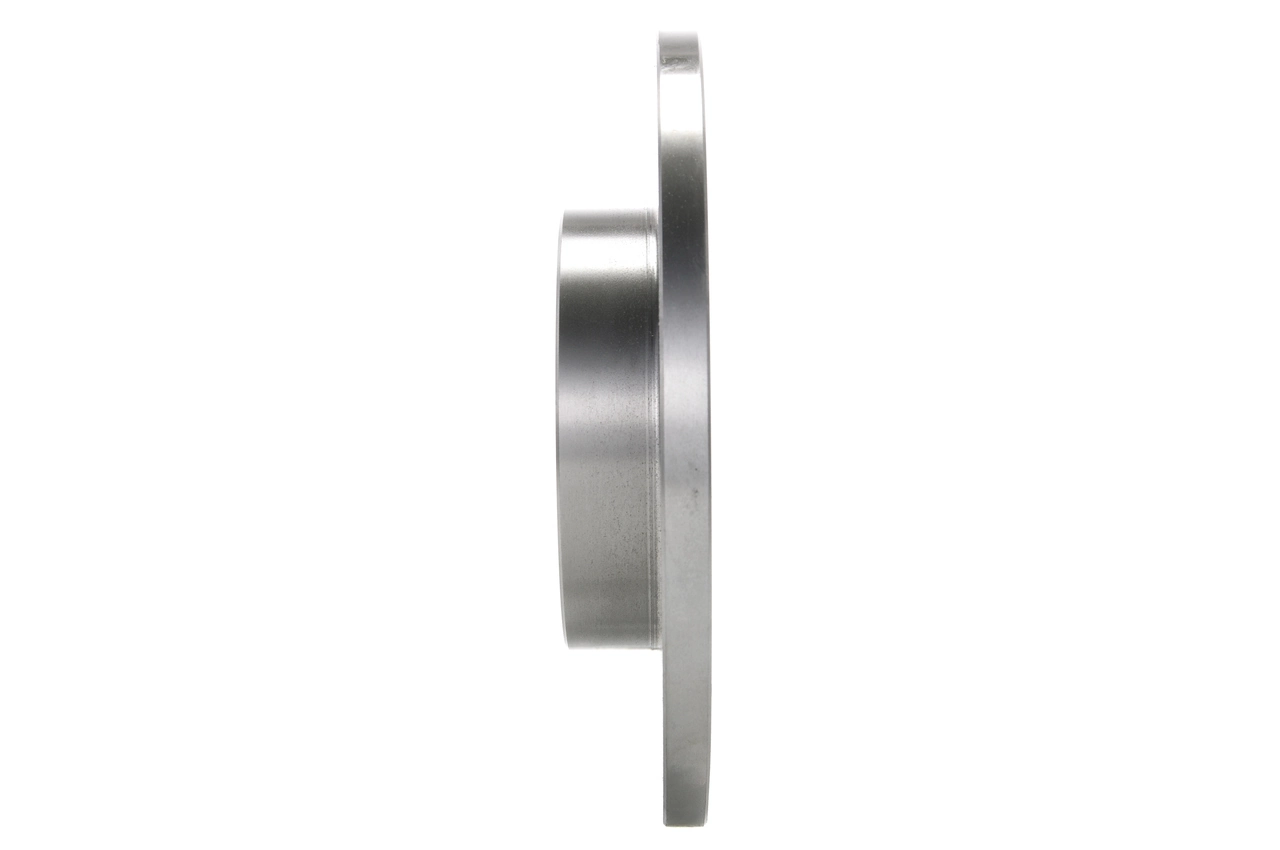

Brake Disc

Code: BOSCH0986478081
GH₵488.41
Not available

Specifications

BrandBosch

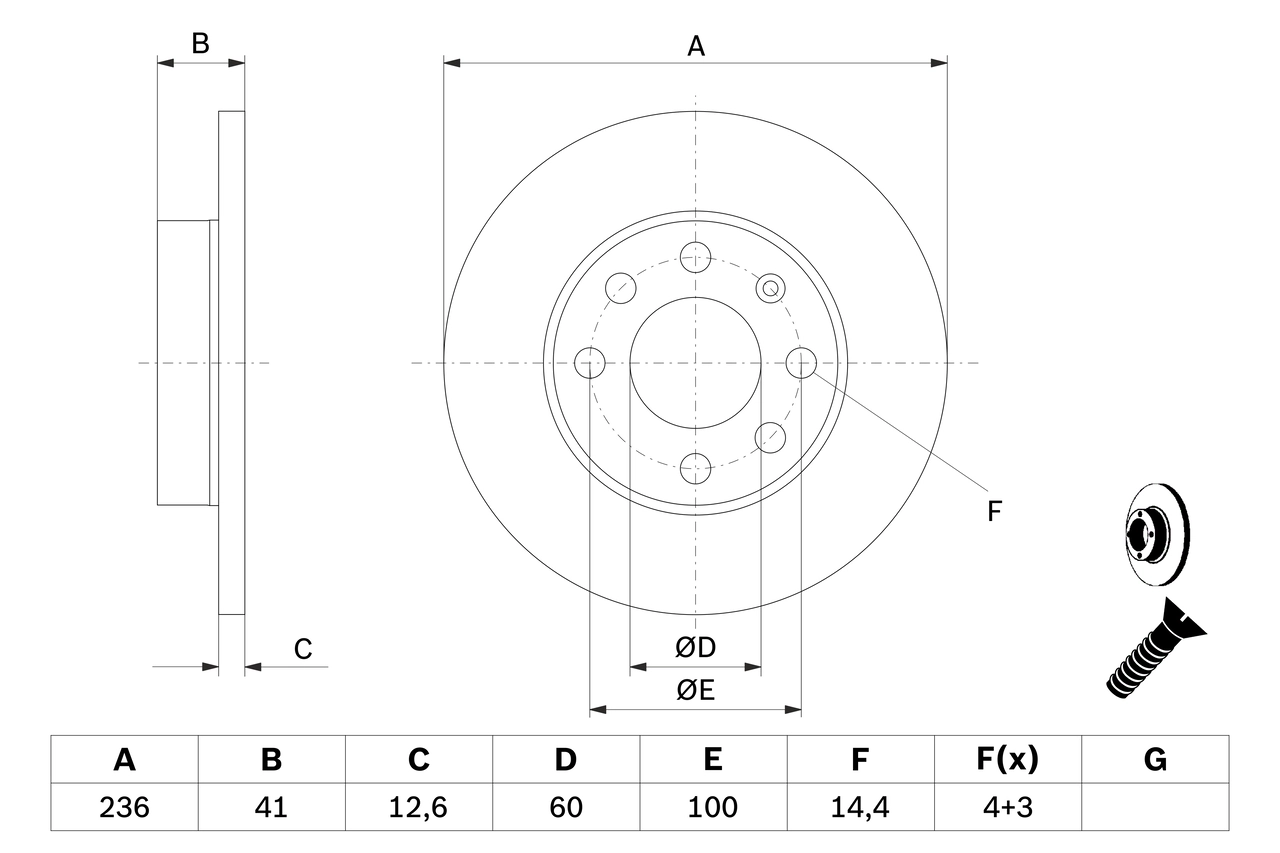

Brake disc thickness mm12,6
Centering diameter mm60
Fulfils ece normECE-R90
Supplementary article info 2with bolts/screws
SurfaceOiled
Vehicle equipmentfor vehicles without air conditioning
Braking systemnot for vehicles with reinforced brakes
Payloadfor increased payload
Bore diameter up to mm14,4
Tecdoc engine number16169; 17564; 17571; 17581; 17583; 17610; 39515; 39517; 4782; 4784; 4785; 4791; 4793; 4810; 4813; 4819; 5284; 5298; 5490; 8405
For oe number93182290
Vehicle identification number vin toM4999999; N1038529; N5000000
Vehicle identification number vin fromG2500047; N4000001
Transmission typeAutomatic Transmission; Manual Transmission
Engine code13 N<OHC>; 14 NV<OHC>; 15 TD<T4EC1 Turbo>; 16 S; 17 D<4EE1>; C 16 LZ; E 14 LV<OHC>; JC<LJ9>; JD<LE4>; JU<LV6>; X 15 D<4EC1>; X 15 TD<4EE1 Turbo>; X 17 D 4EE1; X 17 DT<TC4 EE1>
Construction year from198305; 198408; 198409; 198511; 198609; 198709; 198803; 198809; 198810; 198902; 198904; 198909; 199001; 199009; 199409; 199507; 199509; 199604; 199609; 199709
Construction year to198408; 198509; 198601; 198708; 198812; 198901; 198912; 199108; 199109; 199112; 199206; 199207; 199308; 199309; 199408; 199508; 199602; 199706; 199708; 199802; 200008; 200105; 200208; 200302
Fitting positionFront Axle
Height mm41
Outer diameter mm236
Minimum thickness mm9,7
Brake disc typesolid
Bolt hole circle mm100
Number of holes4

Compatible Vehicles:

Brake Disc OE Numbers
