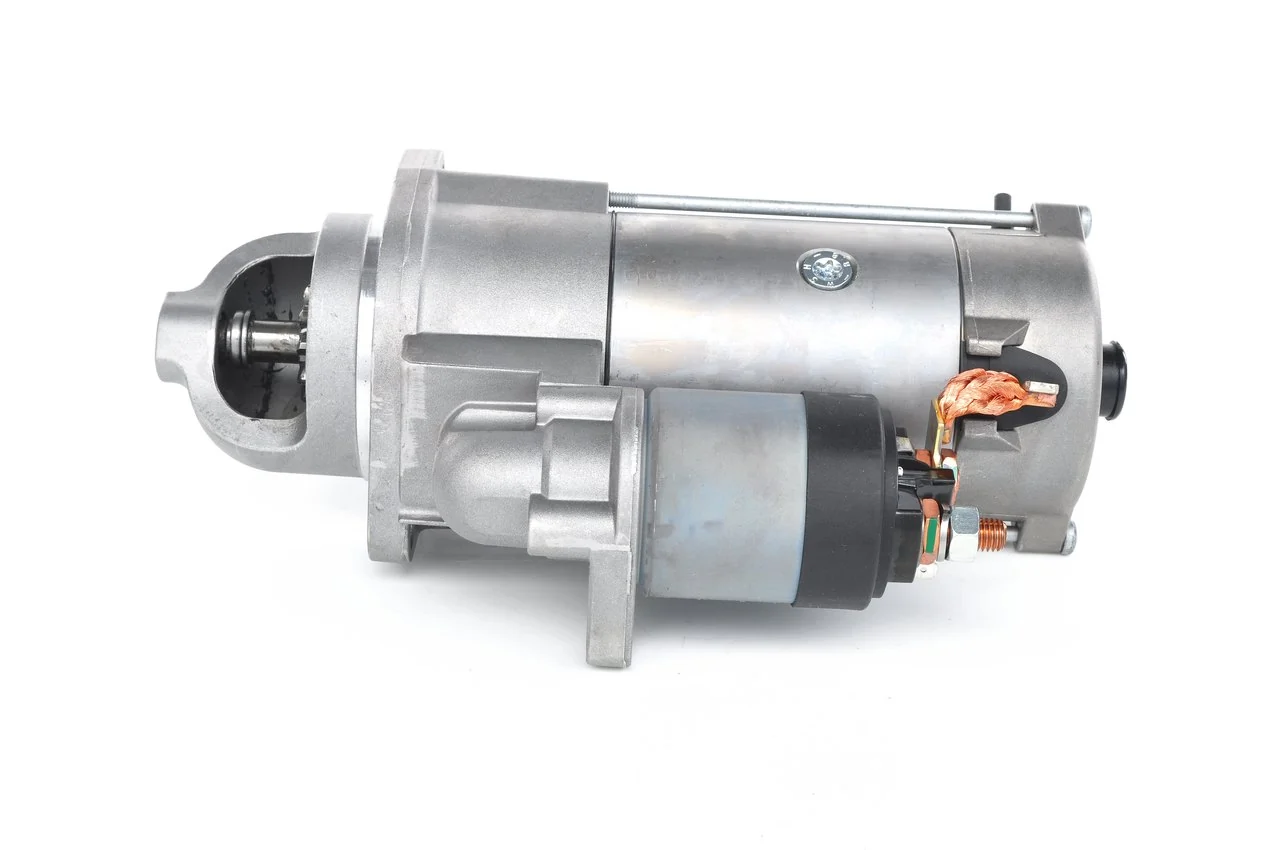

Starter
Code: BOSCH0986021190
GH₵5,508.79
Not available
Specifications
BrandBosch
Number of mounting bores3
Bore diameter mm10,5
Flange diameter mm89
Rated power kw4
Rotation directionClockwise rotation
Number of threaded holes0
Clamp30
Position degreerechts
Pinion rest position mm27
Bore diameter 2 mm10,5
Bore 3 mm10,5
Jaw opening angle measurement degree205
Mounting angle degrees125
Mounting bore angle measurement degree125
Starter typeSelf-supporting
Voltage v24
Number of teeth10
Construction year from200104; 200107; 200111; 200604; 200607; 200609; 200704; 200902; 200909
Construction year to200607; 200609; 200701; 200710; 200712; 200808; 200812; 200901
Length mm320
