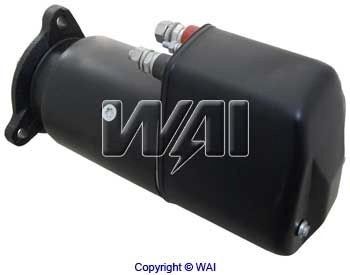

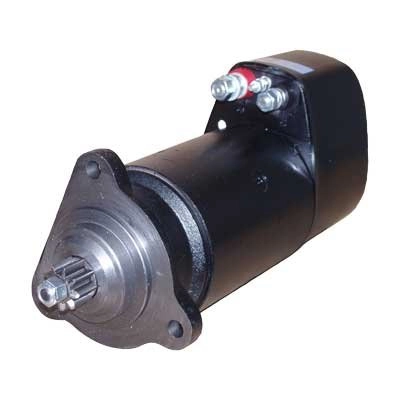

Starter
Code: BOSCH0986016520
GH₵12,696.66
Not available
Specifications
BrandBosch
Length mm407
Manufacturer restrictionBosch; DELCO REMY
Number of mounting bores3
For type code385
Bore diameter mm13,5
Flange diameter mm92
Rated power kw6,6
Rotation directionClockwise rotation
Component number522018/02
Number of threaded holes0
Clamp31
Position degreelinks
Pinion rest position mm47,5
Bore diameter 2 mm13,5
Bore 3 mm13,5
Mounting angle degrees15
Mounting bore angle measurement degree15
Starter typeFloating pinion
Voltage v24
Tecdoc engine number10976; 10978; 10979; 10981; 10982; 10987; 10989; 11134; 16249; 16298; 16493; 16509; 16747; 16760; 16761; 16764; 16765; 16766; 16768; 17473; 17485; 17490; 17491; 17492; 18099; 20311; 23187; 28163; 28245; 28955; 5647; 5671; 5672; 5674; 5729; 5730; 5752; 5758; 5759; 5760; 5761; 5762; 5763; 5781; 5798; 5799; 5800; 5805; 5814; 6010; 6011; 6081; 6085; 6093; 6095; 6117; 6132; 6133; 6139; 6140; 6141; 6149; 6289; 7578; 7589; 7592; 7594; 7608; 7609; 7610; 7611; 7626; 7696; 7752; 7753; 7774; 7777; 7780; 7781; 7796; 7895; 7899; 7900; 7901; 7947; 7948; 7949; 7950; 7954; 7955; 7956; 7957; 7959; 7960; 7961; 7962; 7963; 8249
Engine codeD 2566 MUM/240; D 2866 LOH21; D 2866 LOH25; D 2866 LOH27; D 2866 LOH35; D 2866 LUH21; D 2866 LUH23; D 2866 LUH24; D 2866 TUH/290; OM 401.918; OM 401.923; OM 422.91...; OM 422.919; OM 422.920; OM 422.95...; OM 422.952 A; OM 457 LA; OM 457.935 HLA
For oe number004 151 61 01; 51 26201 7123
Number of teeth9
Construction year from197405; 197411; 197505; 197506; 197507; 197608; 197609; 197611; 198010; 198011; 198101; 198110; 198211; 198212; 198305; 198306; 198312; 198406; 198504; 198512; 198601; 198609; 198611; 198801; 198907; 199009; 199109; 199210; 199301; 199401; 199404; 199405; 199508; 199609; 199706; 199806; 199807; 199901; 199911; 200101; 200110; 200301; 200311; 200406
Construction year to197404; 197608; 197702; 198001; 198112; 198212; 198306; 198309; 198311; 198405; 198612; 198705; 198707; 198709; 198901; 198905; 198908; 199002; 199003; 199006; 199010; 199012; 199103; 199111; 199112; 199204; 199210; 199212; 199310; 199405; 199407; 199504; 199505; 199606; 199608; 199712; 199803; 199807; 200004; 200102; 200108; 200109; 200112; 200201; 200209; 200401; 200403; 200409; 200512; 200603; 200609; 200708; 200712; 200905
Vehicle configuration line variantSpezial; Standard
Engine number to..098026
