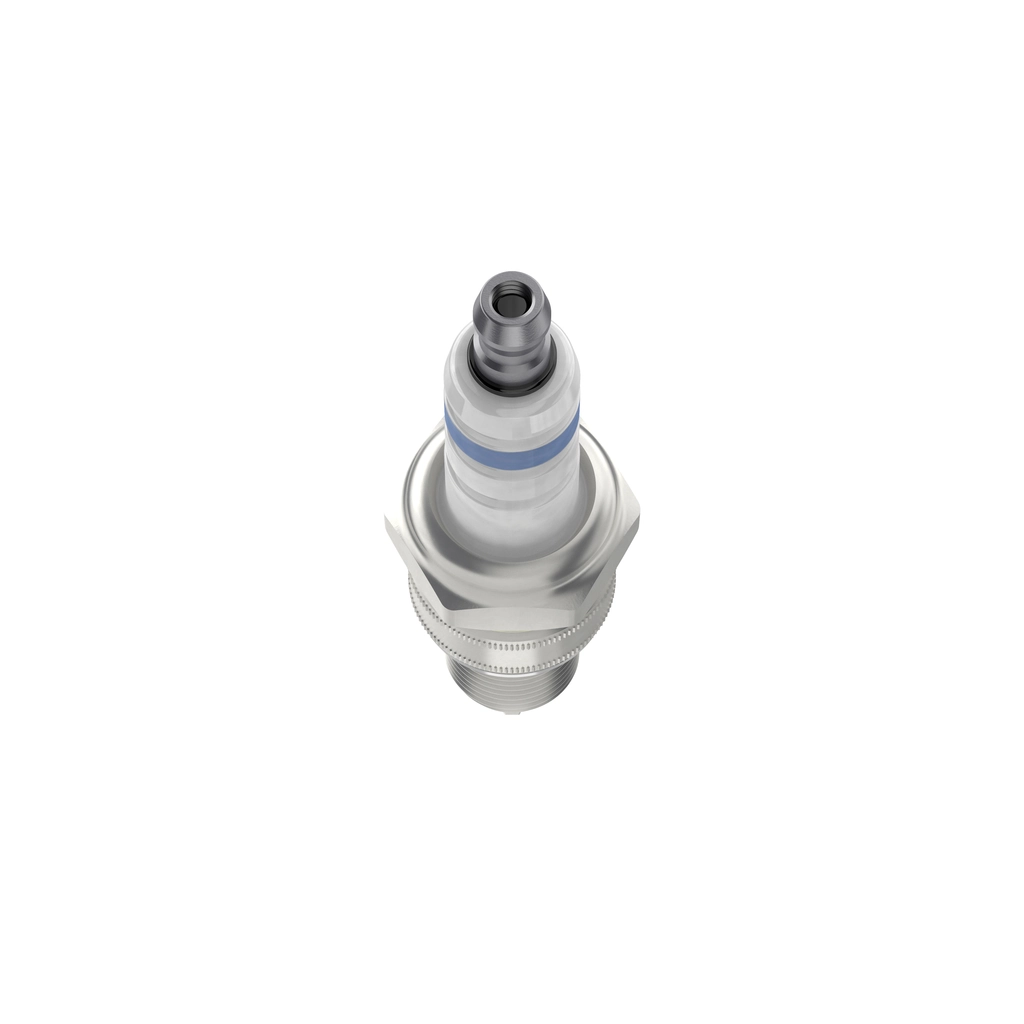

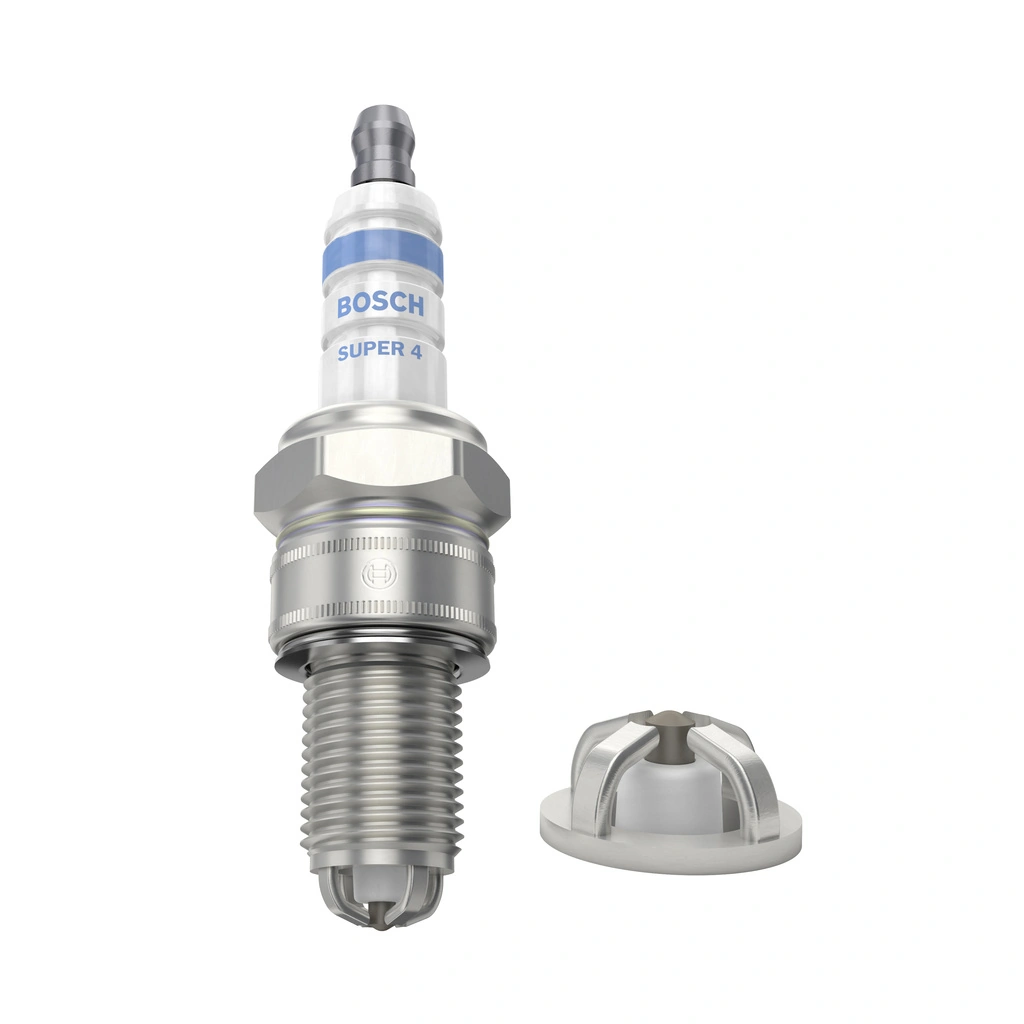

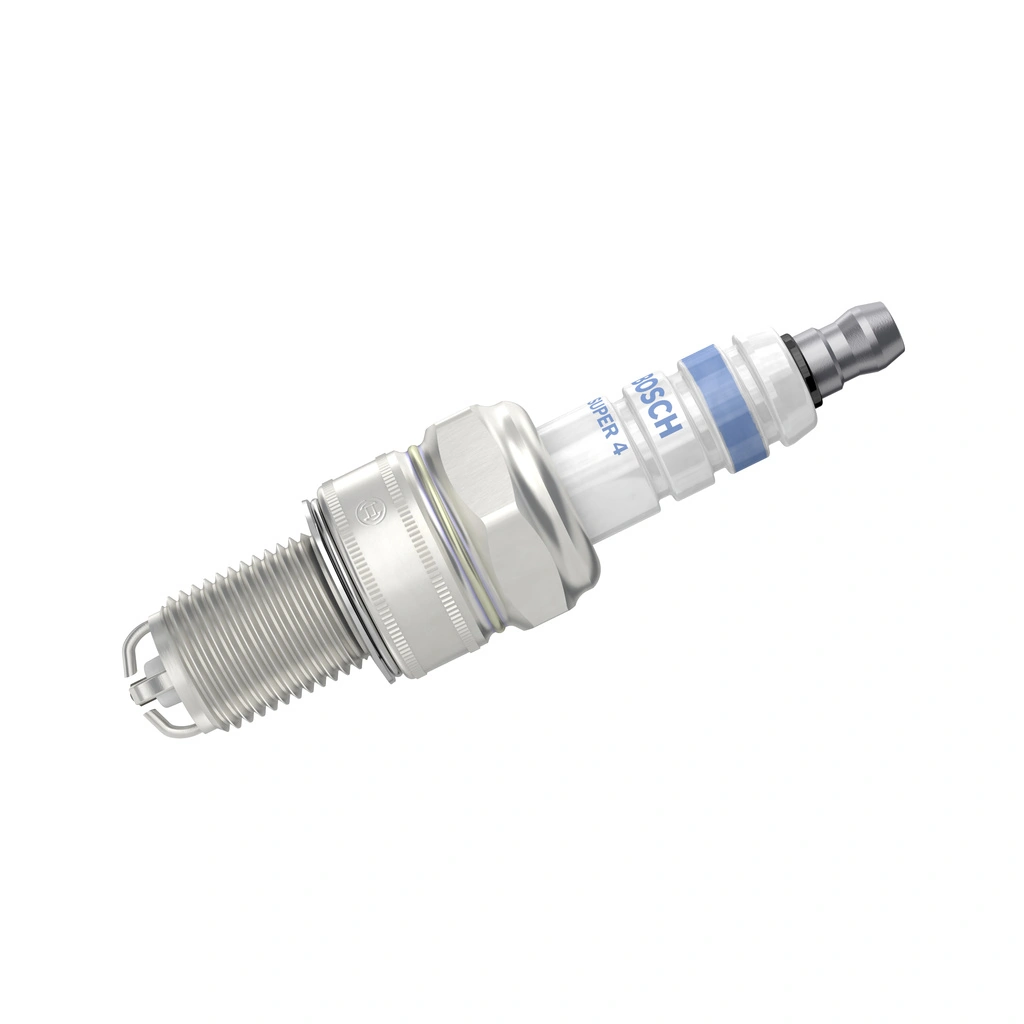

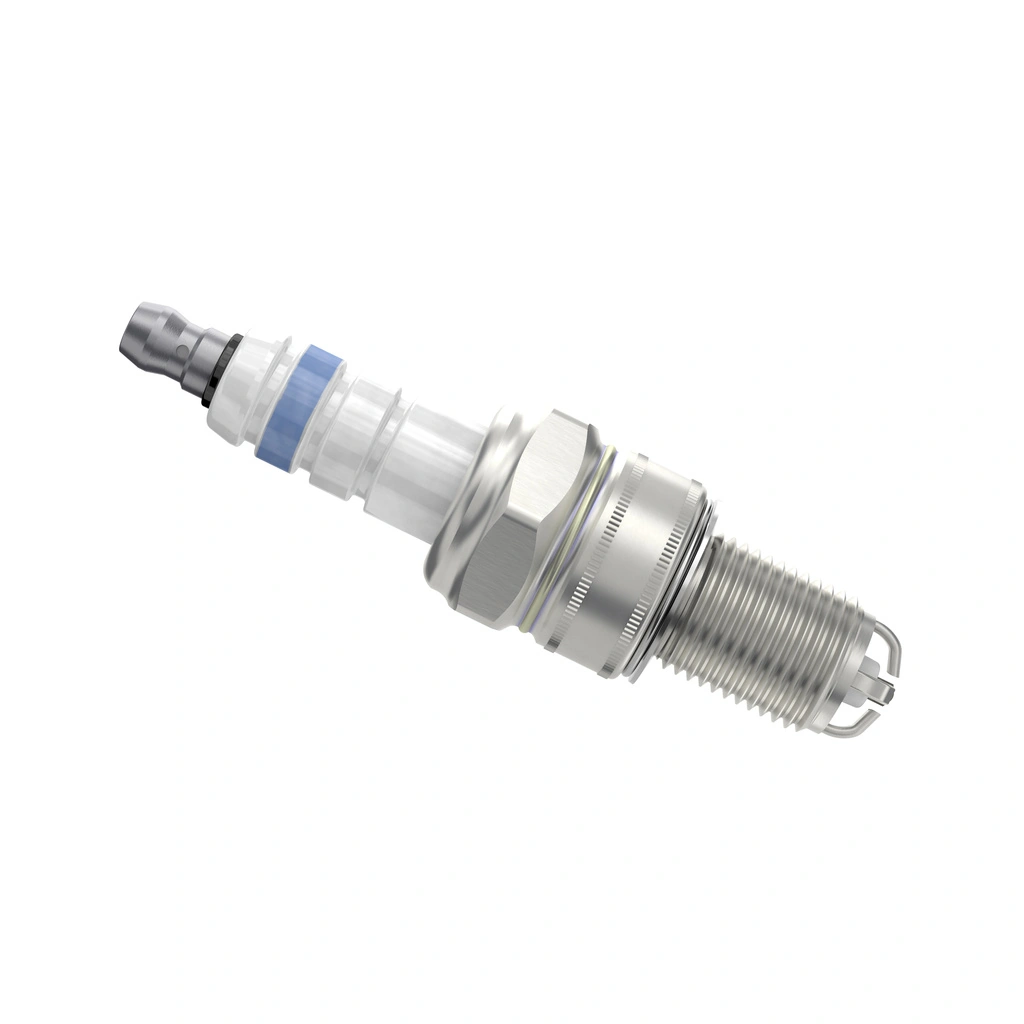

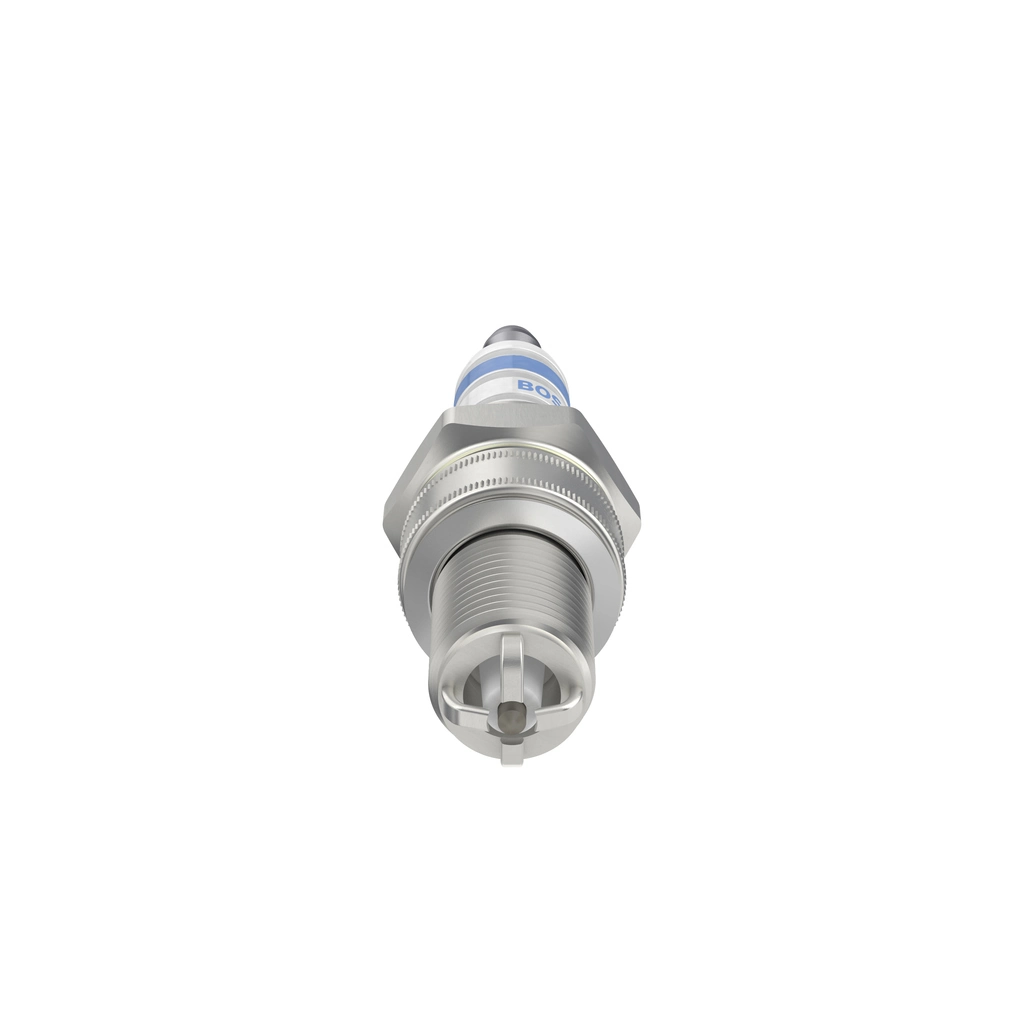

Spark Plug
Code: BOSCH0242232803
GH₵445.67
Not available
Specifications
BrandBosch
Number of pins4
Spanner size20,8
Supplementary article info 2Mostly short distance travel; for leaded fuel
Tightening torque nm28
For model code80; 86,87; L; SC; T10/T11
Required quantity0; 2; 3; 4; 5; 6; 8
Spark plugInterference Suppression
Spark position mm5
Thread length mm19
Climate zonesfor cold climate zones; for hot climate zones
Vehicle main currentfor vehicles with 12V main current
Catalytic converter typefor vehicles without catalytic convertor; with three-way catalytic converter; with two-way catalytic converter
Replace after km20000; 30000
Coil ignition systemfor conventional coil ignition (CI); for transistor ignition (TI)
Tecdoc engine number1007; 1016; 1168; 119; 1216; 1232; 13430; 1375; 1456; 1457; 1485; 1573; 1577; 16177; 16178; 16350; 16351; 16357; 16373; 16374; 17556; 18370; 18371; 18821; 18849; 1911; 1925; 19257; 1926; 1976; 1977; 1978; 1984; 1995; 2005; 20050; 20051; 2019; 20377; 2121; 2125; 2129; 21343; 21384; 21385; 21388; 21389; 2153; 21638; 21706; 2175; 21811; 2185; 219; 22414; 2302; 2304; 2315; 2316; 2322; 233; 2335; 23407; 2426; 24354; 2464; 2474; 24992; 25004; 25017; 253; 25597; 25821; 25824; 26410; 26750; 26860; 26947; 279; 280; 28025; 28046; 28208; 283; 28315; 28323; 28344; 284; 29167; 29351; 29388; 29509; 29515; 29516; 3002; 3003; 30355; 304; 3057; 306; 3102; 3105; 3106; 3114; 3123; 31392; 3141; 3143; 3144; 3145; 3147; 3149; 3151; 3152; 3153; 3175; 3179; 3180; 32195; 3250; 3256; 3257; 3258; 3259; 3260; 3262; 3264; 3265; 3266; 3271; 3273; 3274; 3275; 3276; 330; 3302; 3305; 33225; 333; 33307; 33536; 33840; 33970; 34333; 34362; 3487; 3505; 3508; 3509; 3510; 3513; 353; 3531; 3557; 3568; 3574; 3582; 35964; 36292; 3650; 3658; 3666; 37;
Vehicle identification number vin to00800000; 240999; 8C..P..300 000
Engine number to300000
Vehicle identification number vinM-YU60; M-YY52; M-YY61; T-YU60; T-YY52; T-YY61
Electrode gap mm0,9
Engine code005.15; 016.55; 017.13; 019.13; 09 NCA; 100 GL 7000; 1000 GL 7000; 102.15; 107<XN2>; 12 H; 12 ST<OHC>; 124 B 1; 124 B 3000; 124 BL 1.016; 127 A.011; 127 A.011<FIASA>; 128 A..; 129 AC5.000; 1300V; 131 BD..; 131 CC..; 132 A 2..; 132 A..; 132 AC1.000; 132 FB..; 138 B 3.011<FIASA>; 146 A 2.011<FIASA>; 146 A.048<M1>; 146 A1.000; 146 A4.048; 146 A5.011<Fiasa>; 146 A6.000<M2>; 146 B 4.000<FIASA>; 146 B 5.011<FIASA>; 146 B 7.011; 146 B 8.011; 146 B4.000<M2>; 146 B4.011<Fiasa>; 146 C2.028<M7>; 149 A2.000; 149 C2.000; 151; 159 A2.000<M2>; 159 B 1.011<SPI>; 159 B 4.011<Turbo>; 159 B 5.011; 159 B 8.011; 160 A1.000<M2>; 18 4E A<M 10 B 18>; 18 4E W<M 10 B 18>; 18 4E Z<M 10 B 18>; 18 4K A; 21011; 2108; 21083; 2110<R-83>; 2111-14/16<Euro 2>; 2111/2111-12; 21114-12; 2112-10<Euro 2>; 22D<V8F-EFI-KAT>; 22HB; 22REC; 2471<Euro 2>; 250; 2EE; 2EL; 2G; 2T; 2TG; 2YC; 307<Euro 3>; 34 6E A<M 30 B 35..>; 34 6E C<M 30 B 35..>; 3AC; 3E<Powertrain>; 4021.10; 40522<Euro 2>; 4062.10; 40621.10; 4063.10; 4AC; 4G15; 4G15 Euro I; 4G15 SOHC; 4G15
Construction year from196309; 196601; 196609; 196808; 196809; 196901; 196903; 196909; 197001; 197006; 197101; 197104; 197201; 197205; 197209; 197303; 197305; 197308; 197309; 197407; 197408; 197409; 197412; 197503; 197504; 197508; 197509; 197601; 197602; 197608; 197609; 197610; 197611; 197701; 197702; 197704; 197705; 197709; 197710; 197801; 197802; 197805; 197807; 197809; 197810; 197901; 197905; 197906; 197907; 197908; 197909; 198003; 198006; 198007; 198008; 198009; 198010; 198011; 198101; 198106; 198107; 198108; 198109; 198110; 198201; 198207; 198209; 198210; 198303; 198305; 198308; 198309; 198311; 198401; 198403; 198407; 198408; 198409; 198410; 198411; 198501; 198502; 198504; 198505; 198506; 198508; 198509; 198510; 198511; 198601; 198602; 198603; 198605; 198606; 198608; 198609; 198610; 198611; 198612; 198701; 198702; 198704; 198705; 198706; 198708; 198711; 198712; 198801; 198802; 198803; 198808; 198809; 198811; 198812; 198901; 198902; 198904; 198906; 198908; 198909; 198910; 198911; 199001; 199003; 199005; 199006; 199007; 199008;
Construction year to197007; 197008; 197009; 197012; 197101; 197103; 197110; 197202; 197207; 197208; 197307; 197309; 197312; 197407; 197409; 197411; 197412; 197507; 197508; 197509; 197511; 197512; 197605; 197606; 197607; 197612; 197702; 197703; 197705; 197707; 197709; 197712; 197804; 197805; 197807; 197808; 197812; 197903; 197906; 197907; 197908; 197909; 197910; 197912; 198001; 198002; 198003; 198004; 198005; 198006; 198007; 198008; 198009; 198010; 198012; 198103; 198105; 198106; 198107; 198108; 198110; 198111; 198112; 198203; 198204; 198205; 198206; 198207; 198208; 198209; 198210; 198211; 198212; 198301; 198304; 198305; 198306; 198307; 198308; 198310; 198312; 198401; 198402; 198403; 198407; 198408; 198409; 198410; 198411; 198412; 198502; 198503; 198504; 198505; 198506; 198507; 198508; 198509; 198510; 198511; 198512; 198601; 198602; 198603; 198606; 198607; 198608; 198609; 198610; 198611; 198612; 198701; 198702; 198704; 198705; 198706; 198707; 198708; 198709; 198710; 198711; 198712; 198801; 198802; 198804; 198806; 198807; 198808;
Thread sizeM 14 x 1,25
