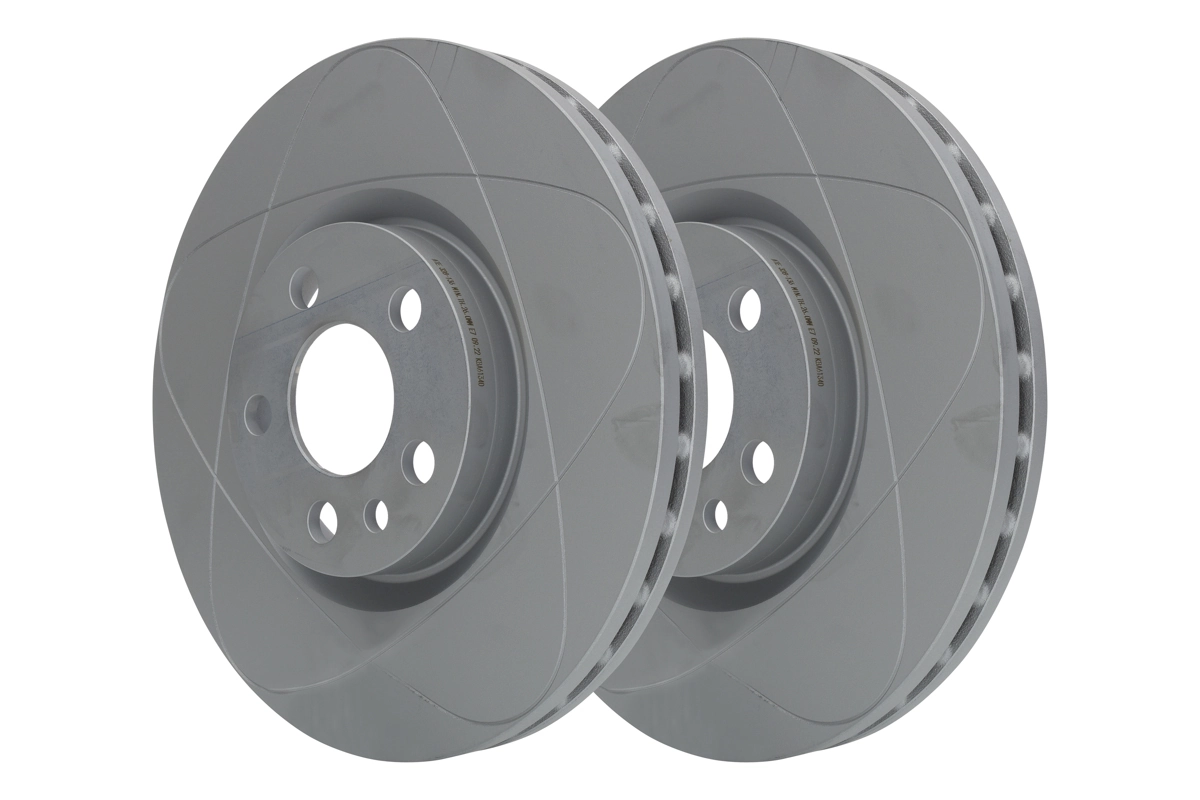

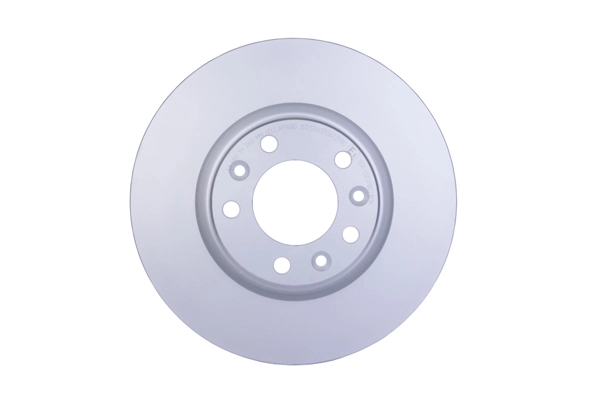

Brake Disc

Code: ATE24032801361
GH₵2,235.13
Not available

Specifications

BrandAte
Fitting positionFront Axle
Height mm43,7
Bolt hole circle mm98,0
Brake disc thickness mm28,0
Brake disc typeVented
Centering diameter mm59,0
Inner diameter mm127,0
Minimum thickness mm26,0
Number of holes5
Outer diameter mm285,0
SurfaceCoated
Test markE1 90R-02C0858/2504
Payload kg800; 900
Bore diameter mm16,5
Construction year from200310; 200611; 200702
Construction year to200605; 201009; 201101; 201406; 201407
For rpo number from09793

Compatible Vehicles:

Brake Disc OE Numbers
