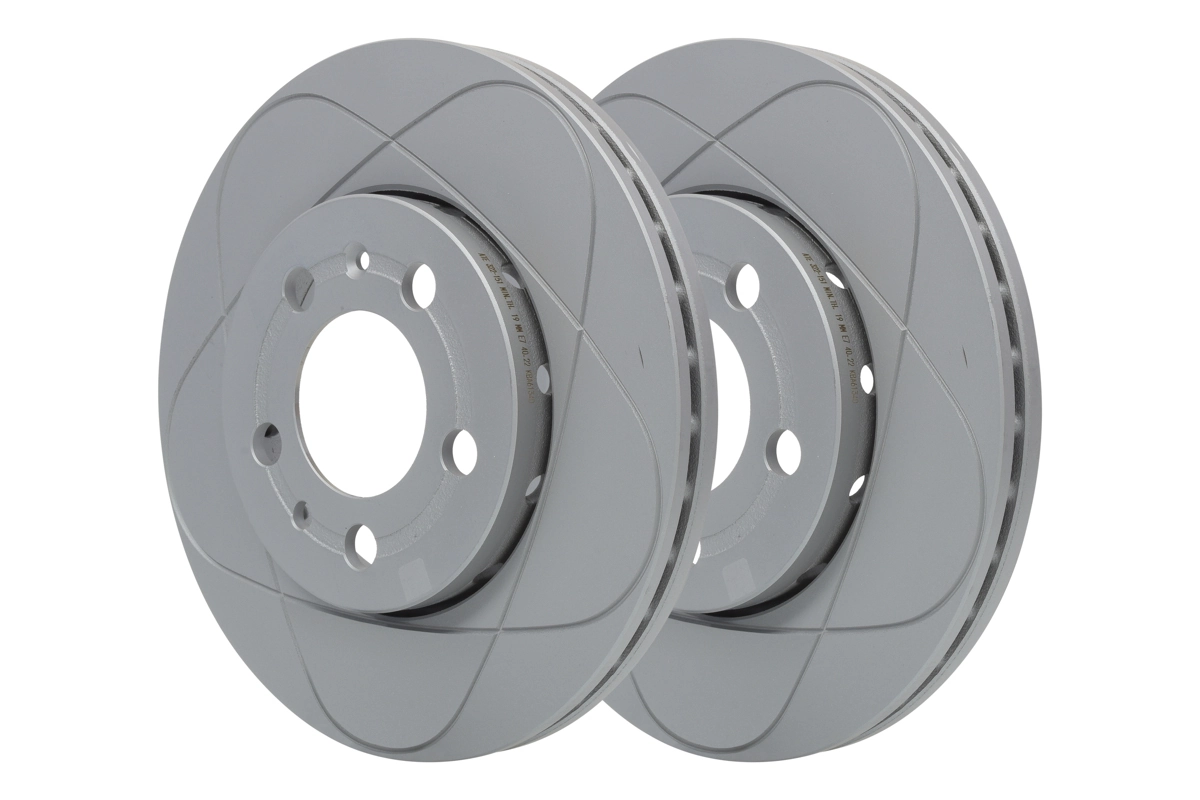

Brake Disc

Code: ATE24032201511
GH₵1,363.60
In stock

Specifications

BrandAte
Fitting positionFront Axle
Height mm36,7
Bolt hole circle mm100,0
Brake disc thickness mm22,0
Brake disc typeVented
Centering diameter mm65,0
Inner diameter mm133,5
MachiningHigh-carbon
Minimum thickness mm19,0
Number of holes5
Outer diameter mm256,0
Supplementary article info 2with bolts/screws
SurfaceCoated
For pr number1LQ; 1LR; 1ZE; 1ZF; 1ZG; 1ZJ
Bore diameter mm15,6
Construction year from199610; 199710; 199803; 199807; 199808; 199902; 199905; 199911; 199912; 200002; 200006; 200009; 200010; 200102; 200104; 200105; 200111; 200205; 200208; 200210; 200301; 200309; 200606; 200607; 200703; 200807; 200906; 201210; 201312
Construction year to200106; 200310; 200409; 200412; 200507; 200712; 200905; 200906; 201006; 201108; 201406; 201504

Compatible Vehicles:

Brake Disc OE Numbers
