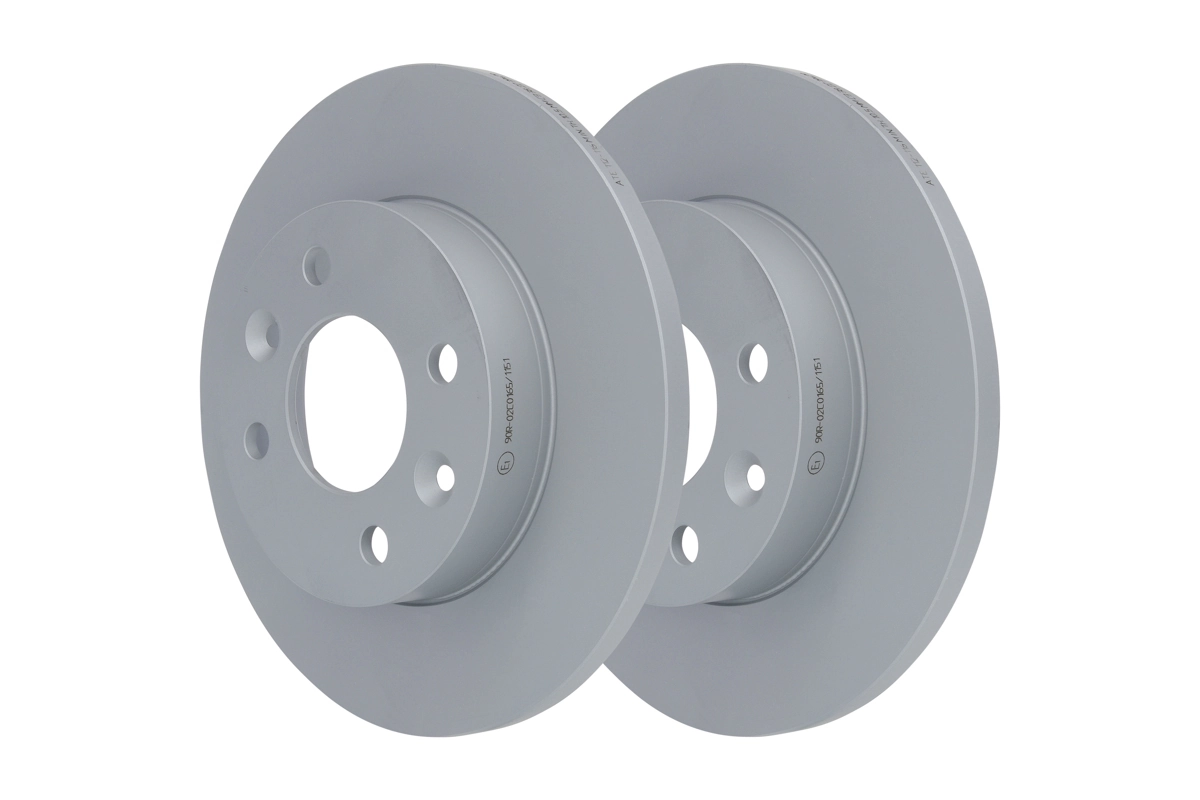

Brake Disc

Code: ATE24011201161
GH₵676.59
Not available

Specifications

BrandAte
Fitting positionFront Axle
Height mm41,0
Bolt hole circle mm100,0
Brake disc thickness mm12,0
Brake disc typesolid
Centering diameter mm61,0
Inner diameter mm129,5
Minimum thickness mm10,5
Number of holes4
Outer diameter mm238,0
Supplementary article info 2with bolts/screws
SurfaceCoated
Test markE1 90R-02C0165/1151
Vehicle equipmentfor vehicles without air conditioning
Suspensionfor vehicles with heavy duty suspension
Braking driving dynamicsfor vehicles with ABS; for vehicles without ABS
Bore diameter mm13,5
Construction year from198201; 198301; 198401; 198501; 198601; 198607; 198610; 198701; 198706; 198806; 198809; 198905; 198906; 199009; 199101; 199109; 199110; 199205; 199209; 199210; 199409; 199410; 199509; 199810; 201101
Construction year to198610; 198612; 198706; 199006; 199008; 199212; 199401; 199412; 199601; 199603; 199710; 199803; 199809; 200008; 200105; 200310; 201002; 201210; 201212; 201302; 201304
Vehicle identification number vin from0084201; 0170421
Transmission typeAutomatic Transmission; Manual Transmission

Compatible Vehicles:

Brake Disc OE Numbers
